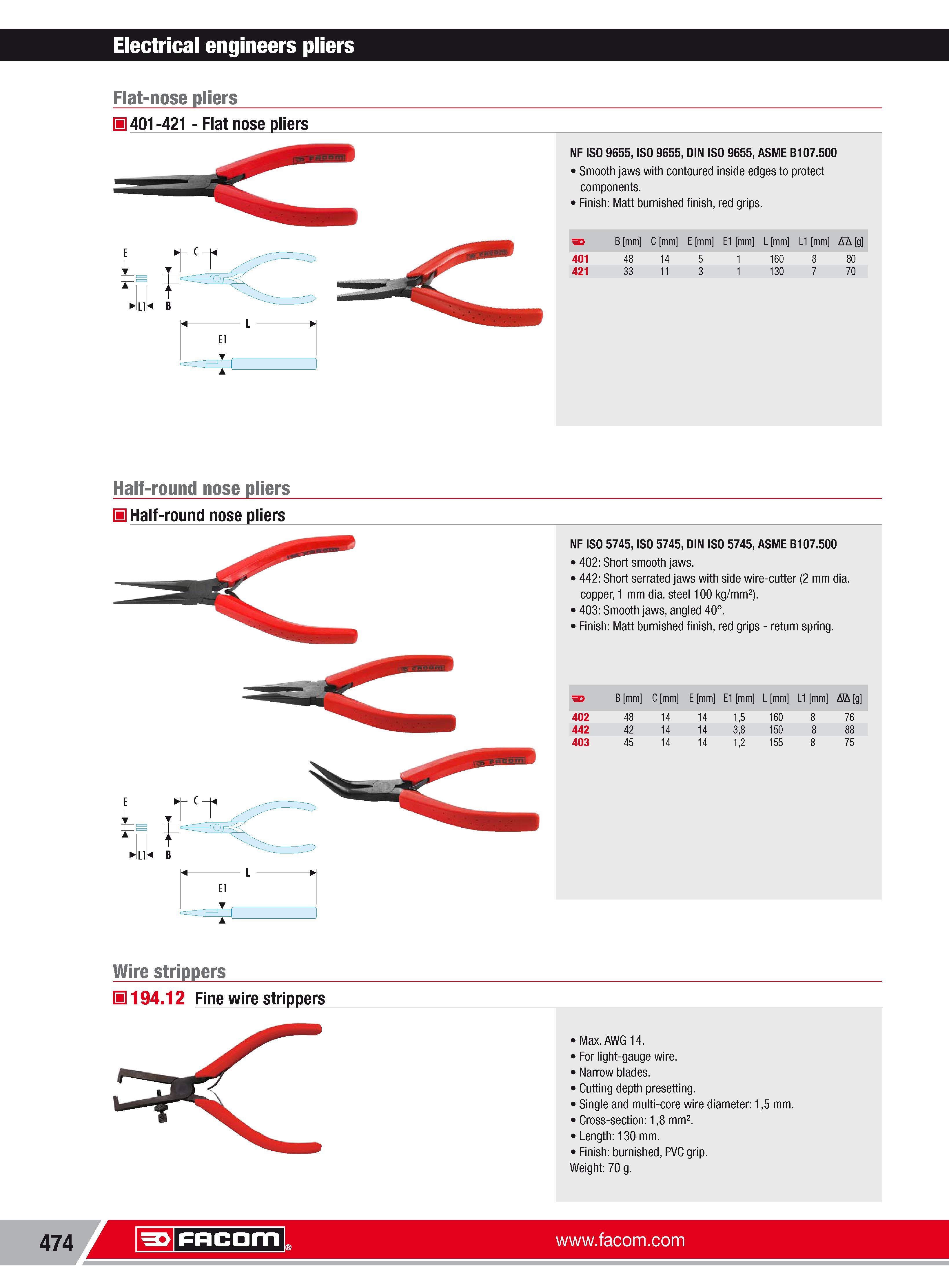

Electrical engineers pliers Flat-nose pliers H 401-421 Flat nose pliers NF ISO 9655 ISO 9655 DIN ISO 9655 ASME B107.500 Smooth jaws with contoured inside edges to protect components. Finish Matt burnished finish red grips. B mm C mm E mm E1 mm L mm L1 mm Nh g 401 48 14 5 1 160 8 80 421 33 11 3 1 130 7 70 Half-round nose pliers H Half-round nose pliers El NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 402 Short smooth jaws. 442 Short serrated jaws with side wire-cutter (2 mm dia. copper 1 mm dia. steel 100 kg mm2). 403 Smooth jaws angled 40. Finish Matt burnished finish red grips return spring. 402 442 403 B mm C mm E mm E1 mm L mm L1 mm Nh g 8 76 48 42 45 14 14 14 14 14 14 15 38 12 160 150 155 75 Wire strippers H 194.12 Fine wire strippers Max.AWG 14. For light-gauge wire. Narrow blades. Cutting depth presetting. Single and multi-core wire diameter 15 mm. Cross-section 18 mm2. Length 130 mm. Finish burnished PVC grip. Weight 70 g. 474 Facom
