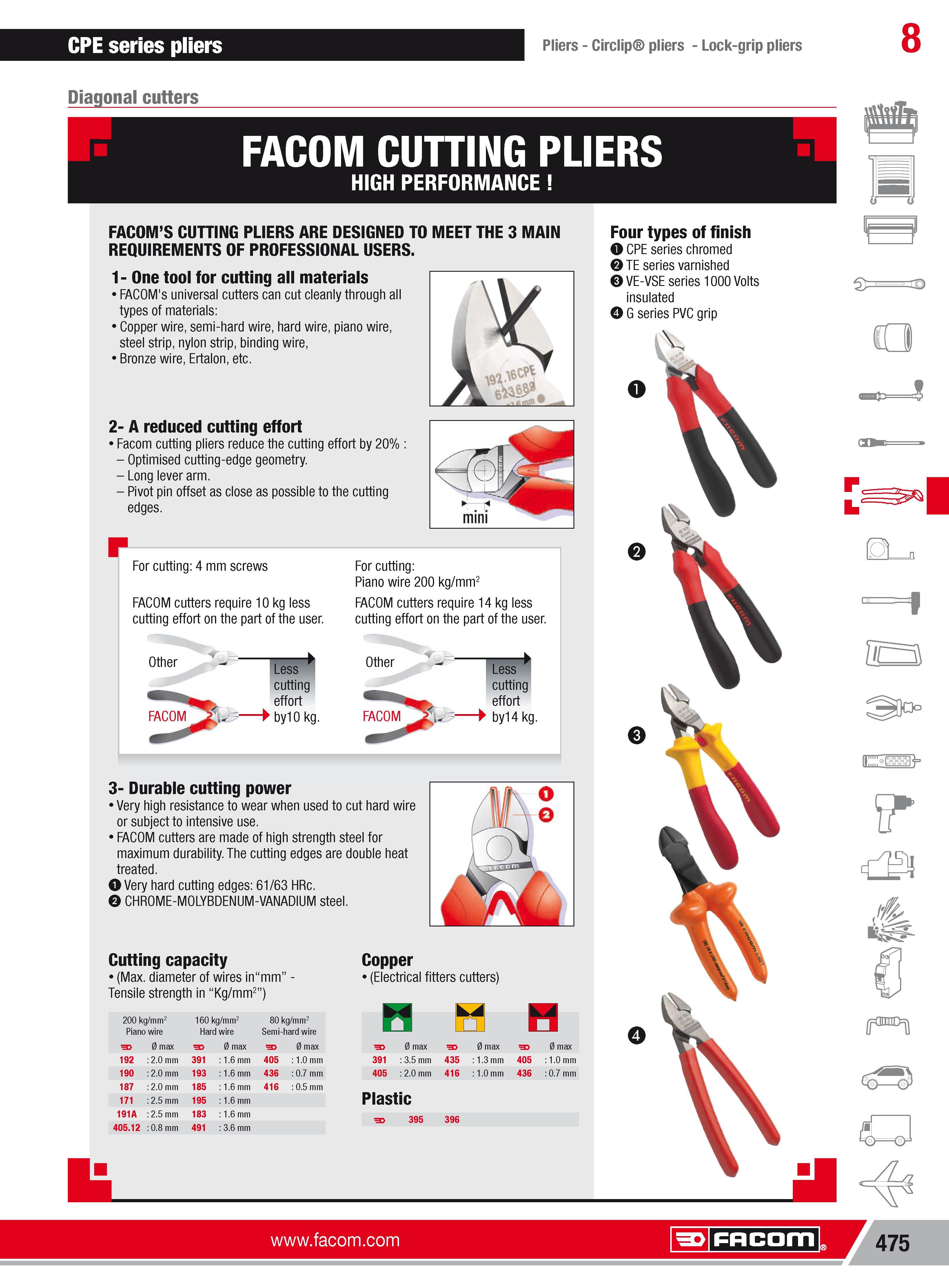

501 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.475

Каталог FACOM 2013 Инструмент Оборудование Стр. 475 0501 ENG Lab2u

CPE series pliers Pliers Circlip pliers Lock-grip pliers 8 Diagonal cutters FACOM CUTTING PLIERS HIGH PERFORMANCE FACOMS CUTTING PLIERS ARE DESIGNED TO MEET THE 3 MAIN REQUIREMENTS OF PROFESSIONAL USERS. 1- One tool for cutting all materials FACOM's universal cutters can cut cleanly through all types of materials Copper wire semi-hard wire hard wire piano wire steel strip nylon strip binding wire Bronze wire Ertalon etc. 2- A reduced cutting effort Facom cutting pliers reduce the cutting effort by 20% Optimised cutting-edge geometry. Long leverarm. Pivot pin offset as close as possible to the cutting edges. For cutting 4 mm screws FACOM cutters require 10 kg less cutting effort on the part of the user. For cutting Piano wire 200 kg mm2 FACOM cutters require 14 kg less cutting effort on the part of the user. Other by10 kg. FACOM by14 kg. 3- Durable cutting power Very high resistance to wear when used to cut hard wire or subject to intensive use. FACOM cutters are made of high strength steel for maximum durability. The cutting edges are double heat treated. OVery hard cutting edges 61 63 HRc. O CHROME-MOLYBDENUM-VANADIUM steel. Cutting capacity (Max. diameter of wires inmm Tensile strength in Kg mm2) Copper (Electrical fitters cutters) 200 kg mm2 Piano wire 160 kg mm2 Hard wire 80 kg mm2 Semi-hard wire F 0 max F 0 max F 0 max 192 2.0 mm 391 1.6 mm 405 1.0 mm 190 2.0 mm 193 1.6 mm 436 0.7 mm 187 2.0 mm 185 1.6 mm 416 0.5 mm 171 2.5 mm 195 1.6 mm 191A 2.5 mm 183 1.6 mm 405.12 0.8 mm 491 3.6 mm H n H f 0 max 391 :3.5 mm 405 :2.0 mm 435 416 0 max 1.3 mm 1.0 mm f 0 max 405 :1.0 mm 436 :0.7 mm Plastic Four types of finish O CPE series chromed 0 TE series varnished 0 VE-VSE series 1000 Volts insulated O G series PVC grip O 0 Less Other Less cutting cutting effort effort 0 O r nr. F 395 396 fm mm n Facom 475
