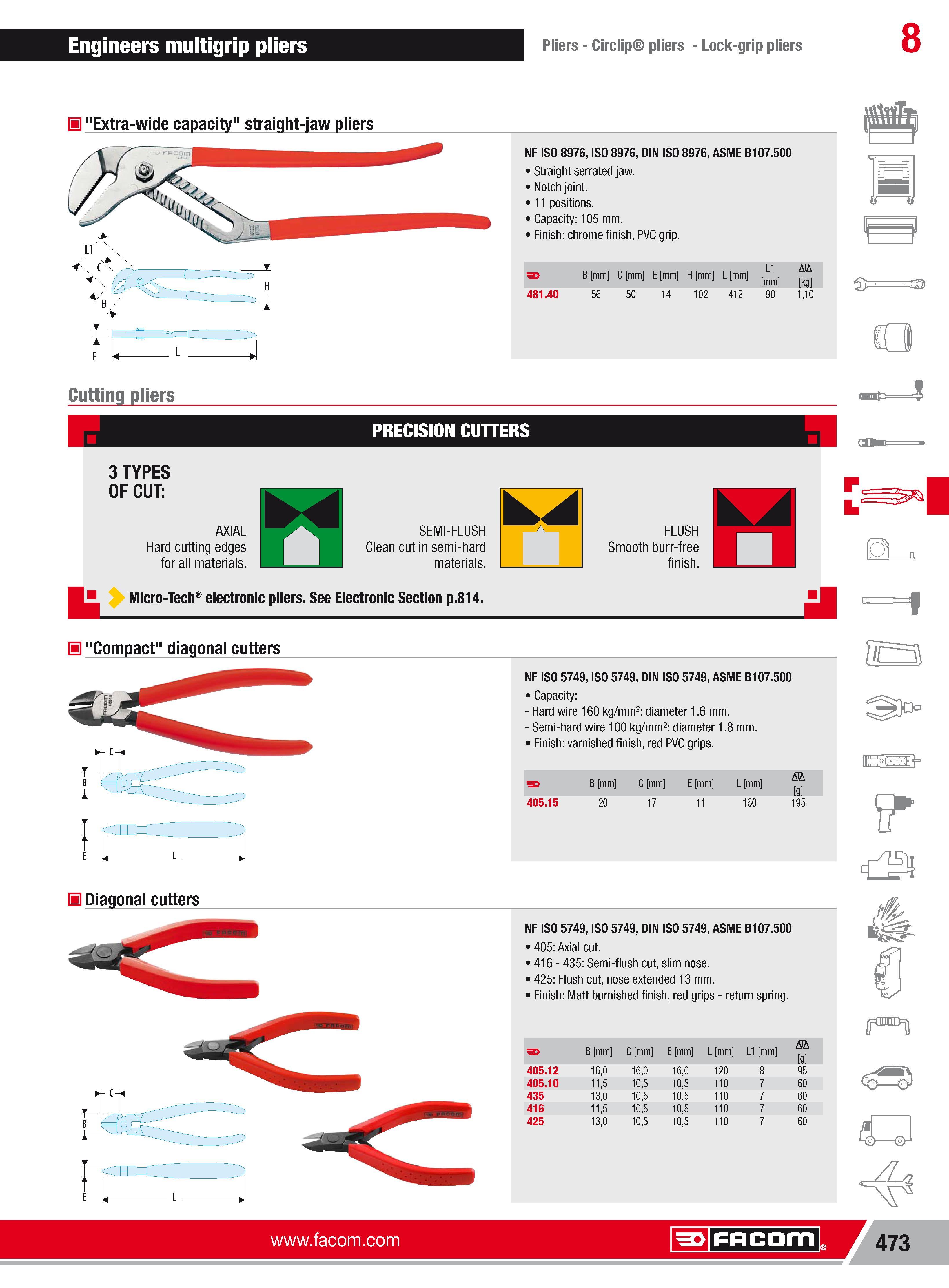

499 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.473

Каталог FACOM 2013 Инструмент Оборудование Стр. 473 0499 ENG Lab2u

Engineers multigrip pliers Pliers Circlip pliers Lock-grip pliers 8 H "Extra-wide capacity" straight-jaw pliers NF ISO 8976 ISO 8976 DIN ISO 8976 ASME B107.500 Straight serrated jaw. Notch joint. 11 positions. 4 Cutting pliers c d PRECISION CUTTERS b 3 TYPES OF CUT AXIAL Hard cutting edges for all materials. SEMI-FLUSH Clean cut in semi-hard materials. EJ FLUSH Smooth burr-free finish. Micro-Tech electronic pliers. See Electronic Section p.814. H "Compact" diagonal cutters H Diagonal cutters i H L t E L NF ISO 5749 ISO 5749 DIN ISO 5749 ASME B107.500 Capacity Hard wire 160 kg mm2 diameter 1.6 mm. Semi-hard wire 100 kg mm2 diameter 1.8 mm. Finish varnished finish red PVC grips. B mm C mm E mm 405.15 20 17 11 AlA g 160 195 L mm NF ISO 5749 ISO 5749 DIN ISO 5749 ASME B107.500 405 Axial cut. 416- 435 Semi-flush cut slim nose. 425 Flush cut nose extended 13 mm. Finish Matt burnished finish red grips return spring. 3 B mm C mm E mm L mm L1 mm Nh g 405.12 160 160 160 120 8 95 405.10 115 105 105 110 7 60 435 130 105 105 110 7 60 416 115 105 105 110 7 60 425 130 105 105 110 7 60 r -C Facom 473 Facom
