504 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.478

Каталог FACOM 2013 Инструмент Оборудование Стр. 478 0504 ENG Lab2u

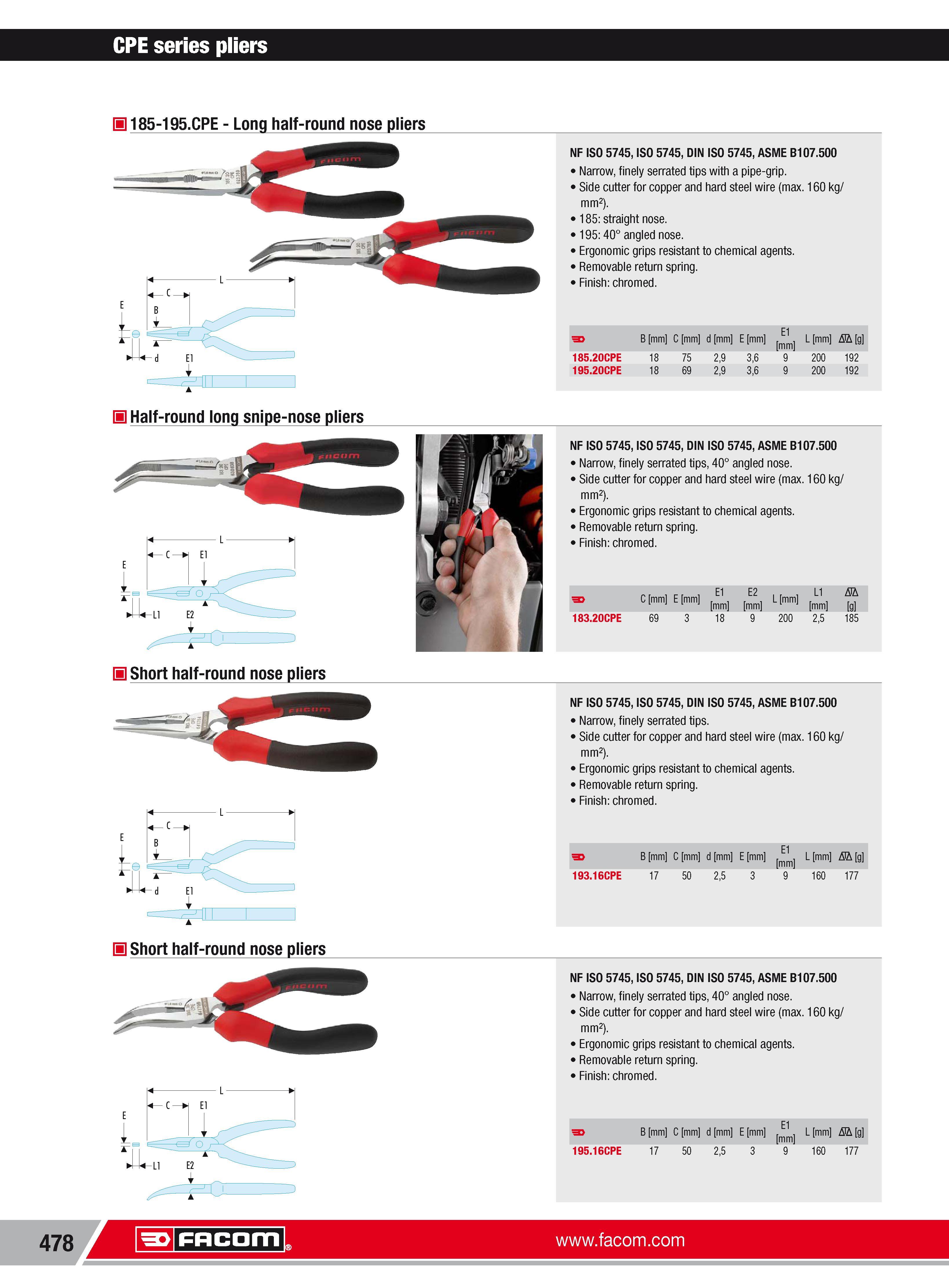

CPE series pliers 185-195.CPE Long half-round nose pliers L C B NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 Narrow finely serrated tips with a pipe-grip. Side cutter for copper and hard steel wire (max. 160 kg mm2). 185 straight nose. 195:40 angled nose. Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. 3 B mm C mm d mm E mm E1 mm L mm g 185.20CPE 18 75 9 2 36 9 200 192 195.20CPE 18 69 29 36 9 200 192 Half-round long snipe-nose pliers NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 Narrow finely serrated tips 40 angled nose. Side cutter for copper and hard steel wire (max. 160 kg mm2). Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. i r r i E1 E2 L1 AlA C mm E mm L mm mm mm mm 183.20CPE 69 3 18 9 200 25 g 185 H Short half-round nose pliers NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 Narrow finely serrated tips. Side cutter for copper and hard steel wire (max. 160 kg mm2). Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. 193.16CPE B mm C mm d mm E mm 1 L mm AA g 17 50 25 160 177 H Short half-round nose pliers NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 Narrow finely serrated tips 40 angled nose. Side cutter for copper and hard steel wire (max. 160 kg mm2). Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. 195.16CPE B mm C mm d mm E mm 1 L mm AA g 17 50 25 160 177 478 3 9 3 9 Facom
