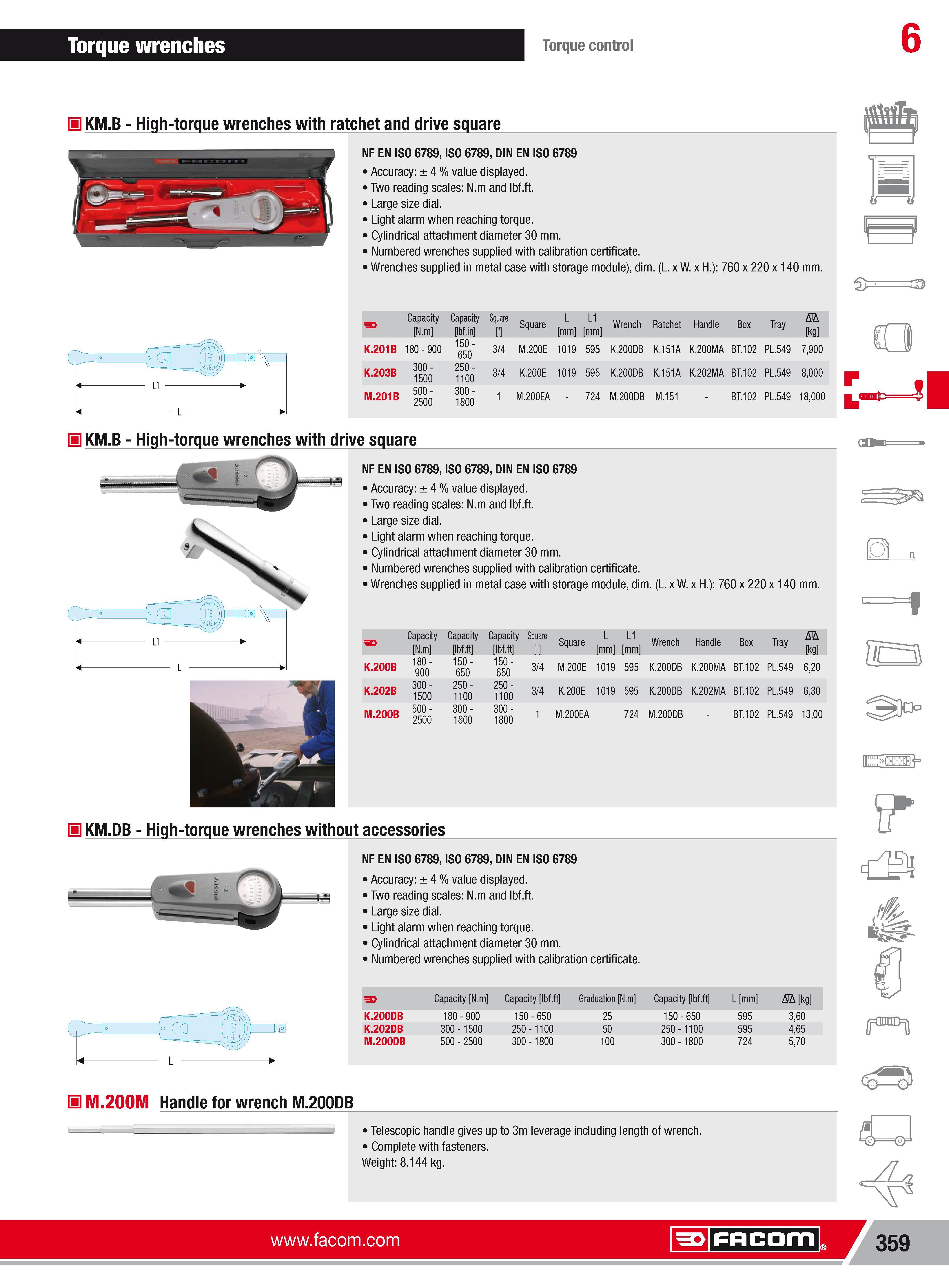

Torque wrenches Torque control 6 H KM.B High-torque wrenches with ratchet and drive square NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy 4 value displayed. Two reading scales N.m and Ibf.ft. Large size dial. Light alarm when reaching torque. Cylindrical attachment diameter 30 mm. Numbered wrenches supplied with calibration certificate. Wrenches supplied in metal case with storage module) dim. (L. xW.x H.) 760 x220x140 mm. CI H KM.B High-torque wrenches with drive square NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy 4 value displayed. Two reading scales N.m and Ibf.ft. Large size dial. Light alarm when reaching torque. Cylindrical attachment diameter 30 mm. Numbered wrenches supplied with calibration certificate. Wrenches supplied in metal case with storage module dim. (L.xW.x H.) 760x 220x 140 mm. Capacity N.m Capacity lbf.ft Capacity lbf.ft Square " Square L mm L1 mm Wrench Handle Box Tray AlA kg K.200B 180 -900 150 -650 150 -650 3 4 M.200E 1019 595 K.200DB K.200MA BT.102 PL.549 620 K.202B 300 -1500 250 -1100 250 -1100 3 4 K.200E 1019 595 K.200DB K.202MA BT.102 PL.549 630 M.200B 500 -2500 300 -1800 300 -1800 1 M.200EA 724 M.200DB BT.102 PL.549 1300 H KM.DB High-torque wrenches without accessories NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy 4 value displayed. Two reading scales N.m and Ibf.ft. Large size dial. Light alarm when reaching torque. Cylindrical attachment diameter 30 mm. Numbered wrenches supplied with calibration certificate. Capacity N.m Capacity lbf.in Square "1 Square L mm L1 mm Wrench Ratchet Handle Box Tray Nh kg K.201B 180 900 150 -650 3 4 M.200E 1019 595 K.200DB K.151A K.200MA BT.102 PL.549 7900 K.203B 300 -1500 250 -1100 3 4 K.200E 1019 595 K.200DB K.151A K.202MA BT.102 PL.549 8000 M.201B 500 -2500 300 -1800 1 M.200EA 724 M.200DB M.151 BT.102 PL.549 18000 1 r Capacity N.m Capacity lbf.ft Graduation N.m Capacity lbf.ft L mm Nh kg K.200DB 180 900 150 650 25 150 650 595 360 K.202DB 300 1500 250 1100 50 250 1100 595 465 M.200DB 500 2500 300 1800 100 300 1800 724 570 H M.200M Handle for wrench M.200DB Telescopic handle gives up to 3m leverage including length of wrench. Complete with fasteners. Weight 8.144 kg. Facom 359 Facom
