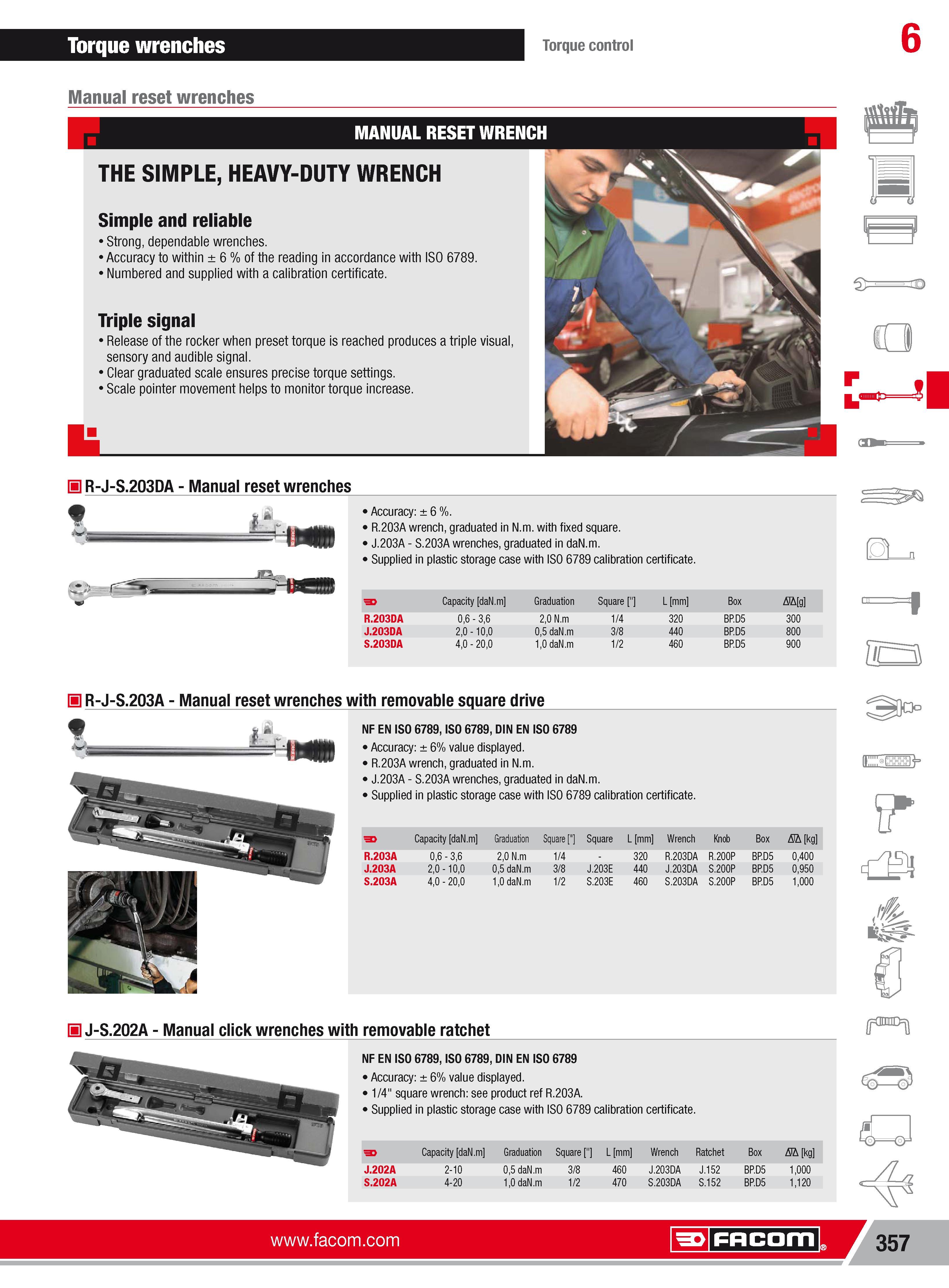

383 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.357

Каталог FACOM 2013 Инструмент Оборудование Стр. 357 0383 ENG Lab2u

Torque wrenches Torque control 6 Manual reset wrenches MANUAL RESET WRENCH THE SIMPLE HEAVY-DUTY WRENCH Simple and reliable Strong dependable wrenches. Accuracyto within 6 of the reading in accordance with ISO 6789. Numbered and supplied with a calibration certificate. Triple signal Release of the rocker when preset torque is reached produces a triple visual sensory and audible signal. Clear graduated scale ensures precise torque settings. Scale pointer movement helps to monitortorque increase. r il i p H R-J-S.203DA Manual reset wrenches Accuracy 6 %. R.203Awrench graduated in N.m. with fixed square. J.203A S.203Awrenches graduated in daN.m. Supplied in plastic storage case with ISO 6789 calibration certificate. Capacity daN.m Graduation Square " L mm Box M g R.203DA 06 36 20 N.m 1 4 320 BP.D5 300 J.203DA 20 100 05 daN.m 3 8 440 BP.D5 800 S.203DA 40 200 10 daN.m 1 2 460 BP.D5 900 r H R-J-S.203A Manual reset wrenches with removable square drive NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy 6% value displayed. R.203Awrench graduated in N.m. J.203A S.203Awrenches graduated in daN.m. Supplied in plastic storage case with ISO 6789 calibration certificate. Capacity daN.m Graduation Square " Square L mm Wrench Knob Box Nh kg R.203A 06 36 20 N.m 1 4 320 R.203DA R.200P BP.D5 0400 J.203A 20 100 05 daN.m 3 8 J.203E 440 J.203DA S.200P BP.D5 0950 S.203A 40 200 10 daN.m 1 2 S.203E 460 S.203DA S.200P BP.D5 1000 H J-S.202A Manual click wrenches with removable ratchet NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy 6% value displayed. 1/4" square wrench see product ref R.203A. Supplied in plastic storage case with ISO 6789 calibration certificate. Capacity daN.m Graduation Square " L mm Wrench Ratchet Box Nh kg J.202A 2-10 05 daN.m 3 8 460 J.203DA J.152 BP.D5 1000 S.202A 4-20 10 daN.m 1 2 470 S.203DA S.152 BP.D5 1120 Facom 357 Facom
