382 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.356

Каталог FACOM 2013 Инструмент Оборудование Стр. 356 0382 ENG Lab2u

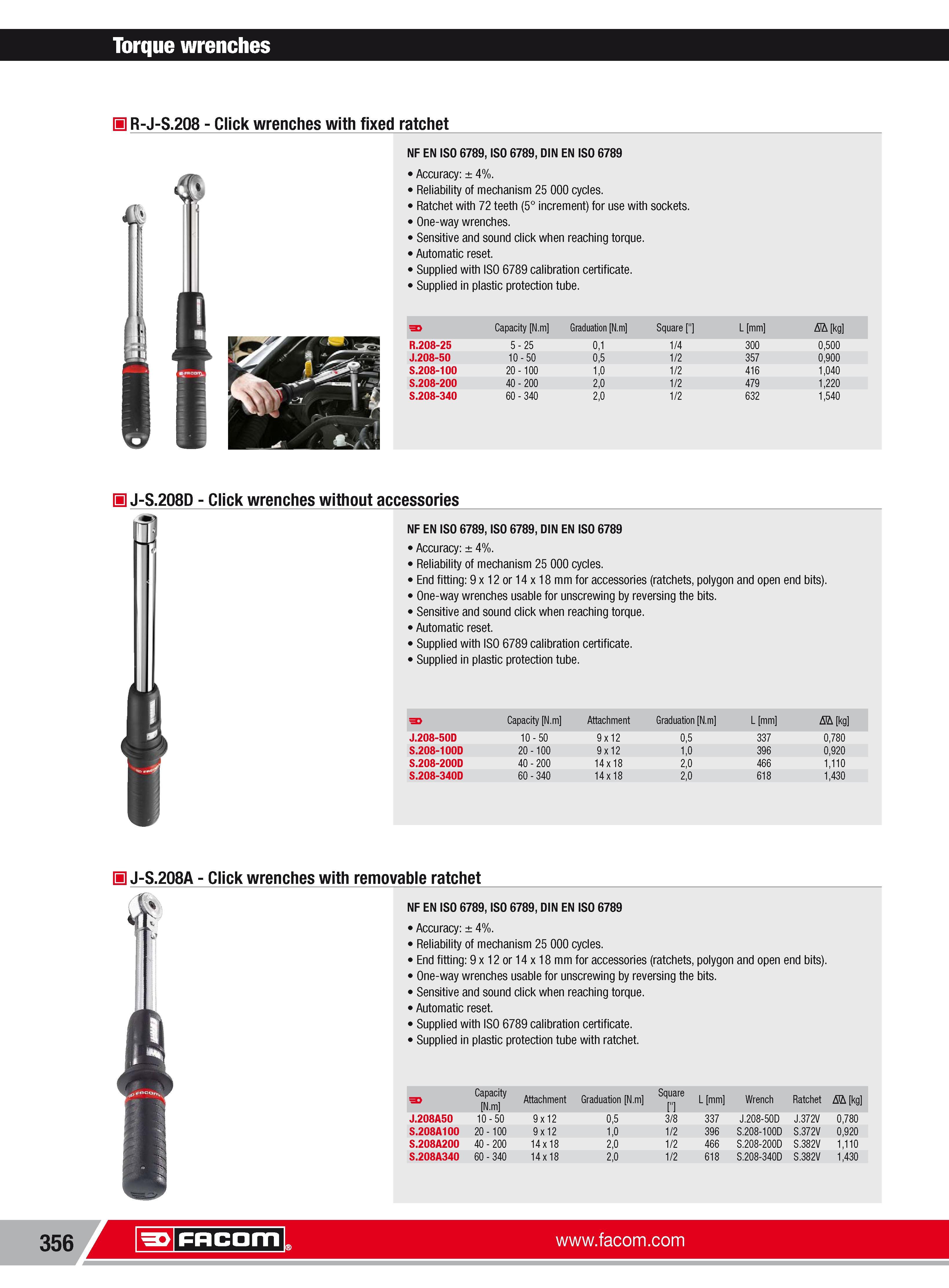

Torque wrenches H R-J-S.208 Click wrenches with fixed ratchet NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy 4%. Reliability of mechanism 25 000 cycles. Ratchet with 72 teeth (5 increment) for use with sockets. One-way wrenches. Sensitive and sound click when reaching torque. Automatic reset. Supplied with ISO 6789 calibration certificate. Supplied in plastic protection tube. 3 Capacity N.m Graduation N.m Square " L mm AIA kg R.208-25 5 25 01 1 4 300 0500 J.208-50 10 50 05 1 2 357 0900 S.208-100 20 100 10 1 2 416 1040 S.208-200 40 200 20 1 2 479 1220 S.208-340 60 340 20 1 2 632 1540 H J-S.208D Click wrenches without accessories NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy 4%. Reliability of mechanism 25 000 cycles. End fitting 9x12or14x18mmfor accessories (ratchets polygon and open end bits). One-way wrenches usable for unscrewing by reversing the bits. Sensitive and sound click when reaching torque. Automatic reset. Supplied with ISO 6789 calibration certificate. Supplied in plastic protection tube. H J-S.208A Click wrenches with removable ratchet NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy 4%. Reliability of mechanism 25 000 cycles. End fitting 9x12or14x18mmfor accessories (ratchets polygon and open end bits). One-way wrenches usable for unscrewing by reversing the bits. Sensitive and sound click when reaching torque. Automatic reset. Supplied with ISO 6789 calibration certificate. Supplied in plastic protection tube with ratchet. Capacity N.m Attachment Graduation N.m Square " L mm Wrench Ratchet MA kg J.208A50 10 50 9 x 12 05 3 8 337 J.208-50D J.372V 0780 S.208A100 20 100 9 x 12 10 1 2 396 S.208-100D S.372V 0920 S.208A200 40 200 14 x 18 20 1 2 466 S.208-200D S.382V 1110 S.208A340 60 340 14 x 18 20 1 2 618 S.208-340D S.382V 1430 356 Facom
