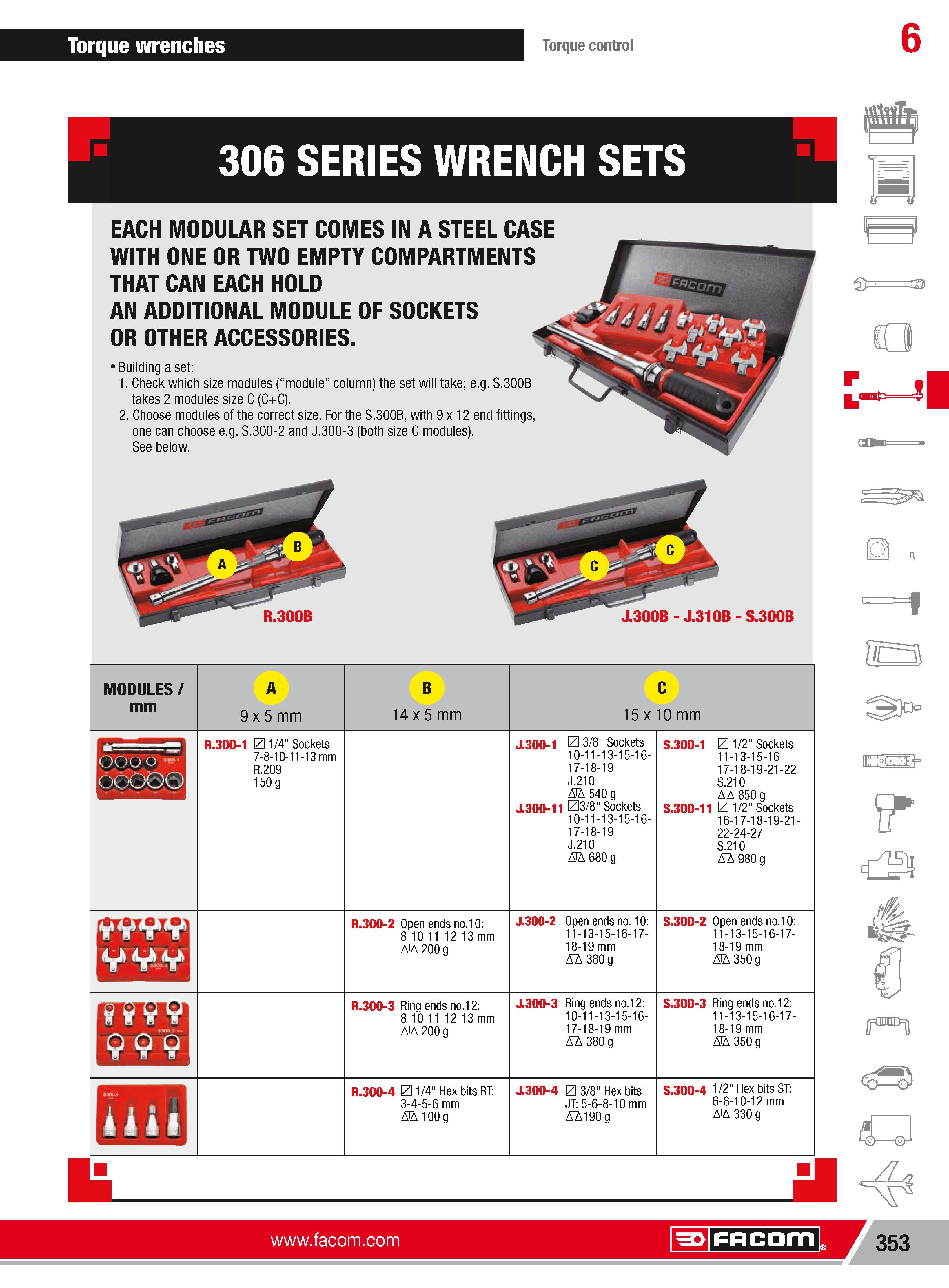

379 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.353

Каталог FACOM 2013 Инструмент Оборудование Стр. 353 0379 ENG Lab2u

Torque wrenches Torque control 6 306 SERIES WRENCH SETS EACH MODULAR SET COMES IN A STEEL CASE WITH ONE OR TWO EMPTY COMPARTMENTS THAT CAN EACH HOLD AN ADDITIONAL MODULE OF SOCKETS OR OTHER ACCESSORIES. Building a set 1. Check which size modules (module column) the set will take; e.g. S.300B takes 2 modules size C (C+C). 2. Choose modules of the correct size. For the S.300B with 9 x 12 end fittings one can choose e.g. S.300-2 and J.300-3 (both size C modules). See below. 4 0 r il R.300B J.300B J.310B S.300B MODULES mm A 9 x 5 mm R.300-1 L 1/4" Sockets 7-8-10-11-13 mm R.209 150 g B 14 x 5 mm R.300-2 Open ends no.10 8-10-11-12-13 mm D 200 g R.300-3 Ring ends no.12 8-10-11-12-13 mm D 200 g R.300-4 L 1/4" Hex bits RT 3-4-5-6 mm D 100 g C 15 x 10 mm J.300-1 J.300-11 L 3/8" Sockets 10-11-13-15-1617-18-19 J.210 D 540 g L3 8" Sockets 10-11-13-15-1617-18-19 J.210 D 680 g J.300-2 Open ends no. 10 11-13-15-16-1718-19 mm D 380 g J.300-3 Ring ends no.12 10-11-13-15-1617-18-19 mm D 380 g J.300-4 L 3/8" Hex bits JT 5-6-8-10 mm D190 g S.300-1 S.300-11 L 1/2" Sockets 11-13-15-16 17-18-19-21-22 5.210 D 850 g L 1/2" Sockets 16-17-18-19-2122-24-27 5.210 D 980 g S.300-2 Open ends no.10 11-13-15-16-1718-19 mm D 350 g S.300-3 Ring ends no.12 11-13-15-16-1718-19 mm D 350 g S.300-4 1/2" Hex bits ST 6-8-10-12 mm D 330 g Facom 353 Facom
