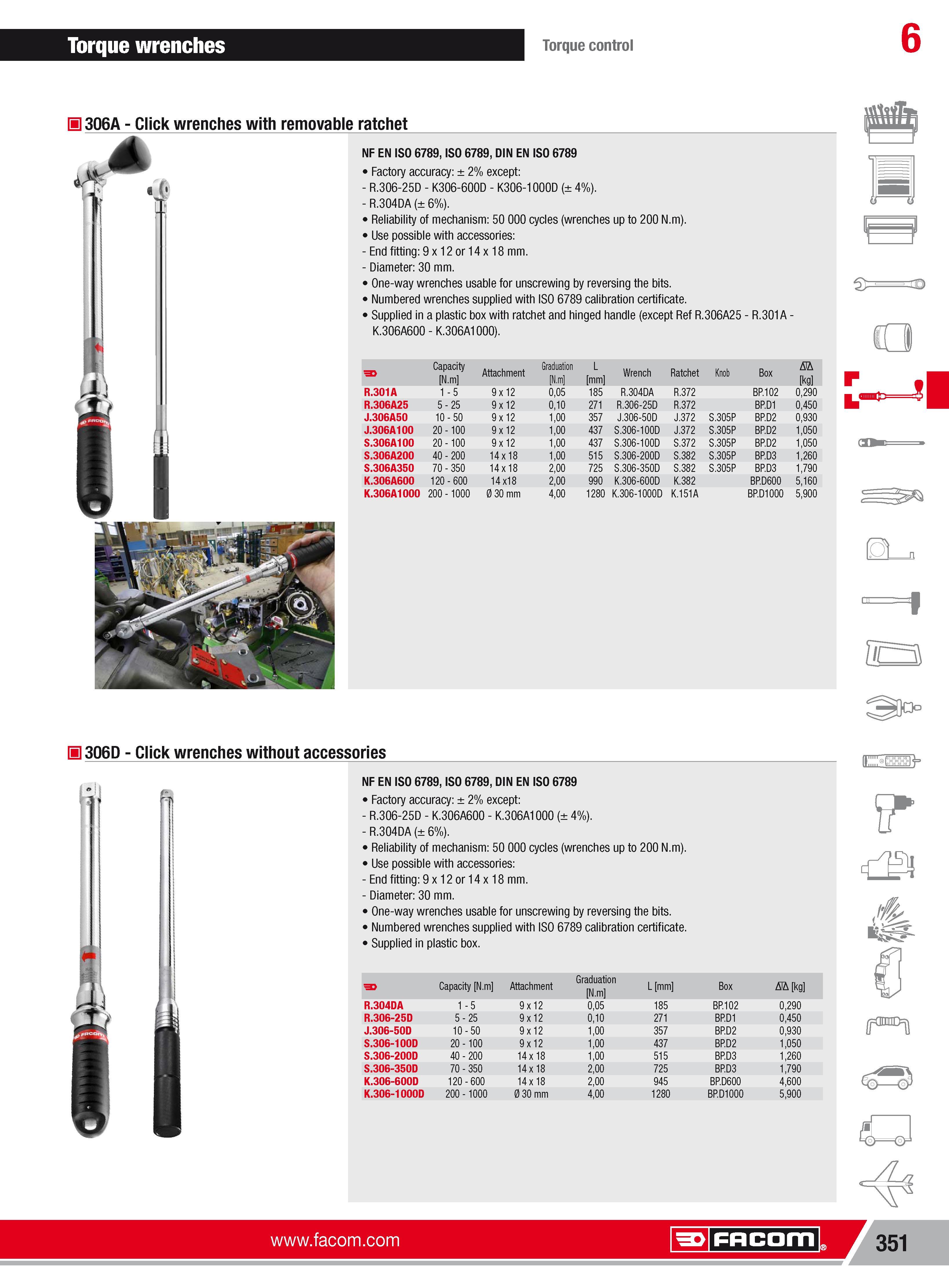

377 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.351

Каталог FACOM 2013 Инструмент Оборудование Стр. 351 0377 ENG Lab2u

Torque wrenches Torque control 6 306A Click wrenches with removable ratchet NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Factory accuracy 2% except R.306-25D K306-600D K306-1000D ( 4%). R.304DA ( 6%). Reliability of mechanism 50 000 cycles (wrenches up to 200 N.m). Use possible with accessories End fitting 9x12or14x18 mm. Diameter 30 mm. One-way wrenches usable for unscrewing by reversing the bits. Numbered wrenches supplied with ISO 6789 calibration certificate. Supplied in a plastic box with ratchet and hinged handle (except Ref R.306A25 R.301A -K.306A600-K.306A1000). Capacity N.m Attachment Graduation N.m L mm Wrench Ratchet Knob Box fih kg R.301A 1 5 9 x 12 005 185 R.304DA R.372 BP.102 0290 R.306A25 5 25 9 x 12 010 271 R.306-25D R.372 BP.D1 0450 J.306A50 10 50 9 x 12 100 357 J.306-50D J.372 S.305P BP.D2 0930 J.306A100 20 100 9 x 12 100 437 S.306-100D J.372 S.305P BP.D2 1050 S.306A100 20 100 9 x 12 100 437 S.306-100D S.372 S.305P BP.D2 1050 S.306A200 40 200 14 x 18 100 515 S.306-200D S.382 S.305P BP.D3 1260 S.306A350 70 350 14 x 18 200 725 S.306-350D S.382 S.305P BP.D3 1790 K.306A600 120 600 14 x18 200 990 K.306-600D K.382 BP.D600 5160 K.306A1000 200 1000 0 30 mm 400 1280 K.306-1000D K.151A BP.D1000 5900 r U 306D Click wrenches without accessories NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Factory accuracy 2% except R.306-25D K.306A600 K.306A1000 ( 4%). R.304DA ( 6%). Reliability of mechanism 50 000 cycles (wrenches up to 200 N.m). Use possible with accessories End fitting 9x12or14x18 mm. Diameter 30 mm. One-way wrenches usable for unscrewing by reversing the bits. Numbered wrenches supplied with ISO 6789 calibration certificate. Supplied in plastic box. Capacity N.m Attachment Graduation N.m L mm Box MA kg R.304DA 1 5 9 x 12 005 185 BP.102 0290 R.306-25D 5 25 9 x 12 010 271 BP.D1 0450 J.306-50D 10 50 9 x 12 100 357 BP.D2 0930 S.306-100D 20 100 9 x 12 100 437 BP.D2 1050 S.306-200D 40 200 14 x 18 100 515 BP.D3 1260 S.306-350D 70 350 14 x 18 200 725 BP.D3 1790 K.306-600D 120 600 14 x 18 200 945 BP.D600 4600 K.306-1000D 200 1000 0 30 mm 400 1280 BP.D1000 5900 Facom 351
