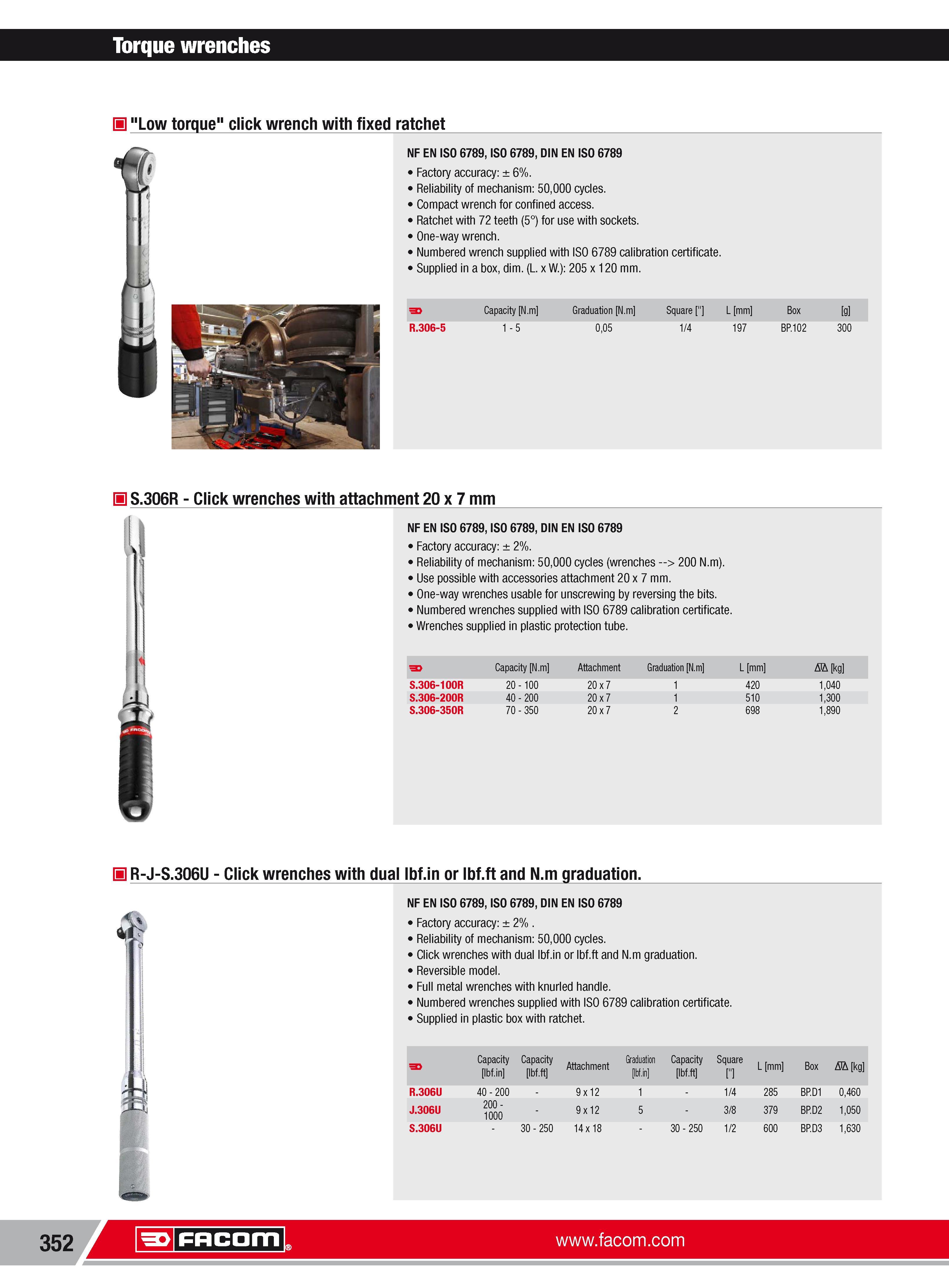

Torque wrenches H "Low torque" click wrench with fixed ratchet NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Factory accuracy 6%. Reliability of mechanism 50000 cycles. Compact wrench for confined access. Ratchet with 72 teeth (5) for use with sockets. One-waywrench. Numbered wrench supplied with ISO 6789 calibration certificate. Supplied in a box dim. (L. x W.) 205 x 120 mm. 3 Capacity N.m Graduation N.m Square " L mm Box g R.306-5 1 5 005 1 4 197 BP.102 300 H S.306R Click wrenches with attachment 20 x 7 mm NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Factory accuracy 2%. Reliability of mechanism 50000 cycles (wrenches 200 N.m). Use possible with accessories attachment 20 x7 mm. One-way wrenches usable for unscrewing by reversing the bits. Numbered wrenches supplied with ISO 6789 calibration certificate. Wrenches supplied in plastic protection tube. 3 Capacity N.m Attachment Graduation N.m L mm M kg S.306-100R 20 100 20 x 7 1 420 1040 S.306-200R 40 200 20 x 7 1 510 1300 S.306-350R 70 350 20 x 7 698 1890 2 H R-J-S.306U Click wrenches with dual Ibf.in or Ibf.ft and N.m graduation. NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Factory accuracy 2% Reliability of mechanism 50000 cycles. Clickwrenches with dual Ibf.in or Ibf.ft and N.m graduation. Reversible model. Full metal wrenches with knurled handle. Numbered wrenches supplied with ISO 6789 calibration certificate. Supplied in plastic box with ratchet. 3 Capacity ibf.in Capacity ibf.ft Attachment Graduation ibf.in Capacity ibf.ft Square " L mm Box AIA kg R.306U 40 200 9 x 12 1 1 4 285 BP.D1 0460 J.306U 200 -1000 9 x 12 5 3 8 379 BP.D2 1050 S.306U 30 250 14 x 18 30 250 1 2 600 BP.D3 1630 Facom
