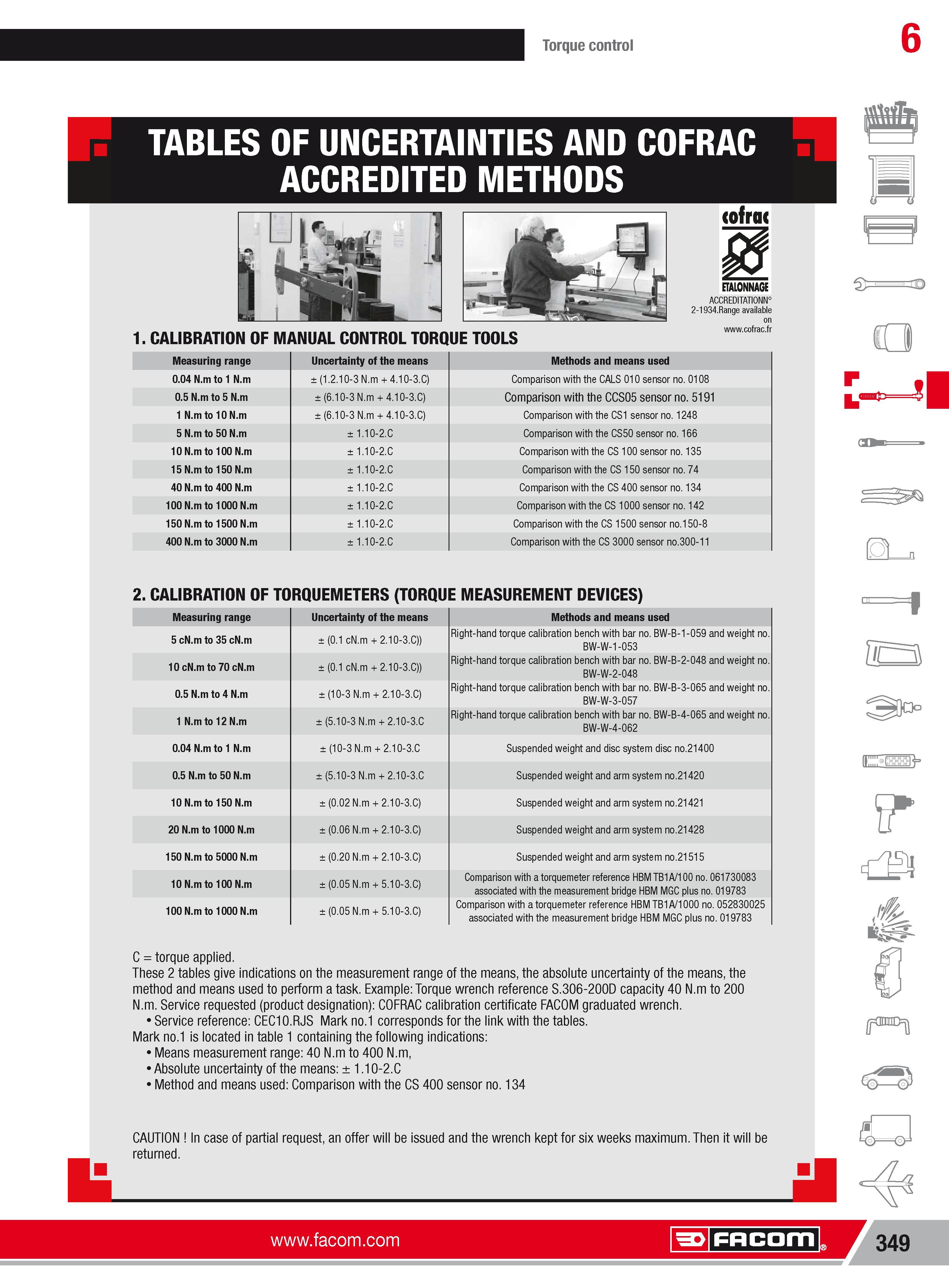

Torque control 6 TABLES OF UNCERTAINTIES AND COFRAC ACCREDITED METHODS ofra 1. CALIBRATION OF MANUAL CONTROL TORQUE TOOLS ETALONNAGE ACCREDITATIONS 2-1934.Range available on www.cofrac.fr Measuring range Uncertainty of the means Methods and means used 0.04 N.m to 1 N.m (1.2.10-3 N.m + 4.10-3.C) Comparison with the CALS 010 sensor no. 0108 0.5 N.m to 5 N.m (6.10-3 N.m + 4.10-3.C) Comparison with the CCS05 sensor no. 5191 1 N.m to 10 N.m (6.10-3 N.m + 4.10-3.C) Comparison with the CS1 sensor no. 1248 5 N.m to 50 N.m 1.10-2.C Comparison with the CS50 sensor no. 166 10 N.m to 100 N.m 1.10-2.C Comparison with the CS 100 sensor no. 135 15 N.m to 150 N.m 1.10-2.C Comparison with the CS 150 sensor no. 74 40 N.m to 400 N.m 1.10-2.C Comparison with the CS 400 sensor no. 134 100 N.m to 1000 N.m 1.10-2.C Comparison with the CS 1000 sensor no. 142 150 N.m to 1500 N.m 1.10-2.C Comparison with the CS 1500 sensor no.150-8 400 N.m to 3000 N.m 1.10-2.C Comparison with the CS 3000 sensor no.300-11 r il 2. CALIBRATION OF TORQUEMETERS (TORQUE MEASUREMENT DEVICES) Measuring range Uncertainty of the means Methods and means used 5 cN.m to 35 cN.m (0.1 cN.m + 2.10-3.C)) Right-hand torque calibration bench with bar no. BW-B-1-059 and weight no. BW-W-1-053 10 cN.m to 70 cN.m (0.1 cN.m + 2.10-3.C)) Right-hand torque calibration bench with bar no. BW-B-2-048 and weight no. BW-W-2-048 0.5 N.m to 4 N.m (10-3 N.m + 2.10-3.C) Right-hand torque calibration bench with bar no. BW-B-3-065 and weight no. BW-W-3-057 1 N.m to 12 N.m (5.10-3 N.m + 2.10-3.C Right-hand torque calibration bench with bar no. BW-B-4-065 and weight no. BW-W-4-062 0.04 N.m to 1 N.m (10-3 N.m + 2.10-3.C Suspended weight and disc system disc no.21400 0.5 N.m to 50 N.m (5.10-3 N.m + 2.10-3.C Suspended weight and arm system no.21420 10 N.m to 150 N.m (0.02 N.m + 2.10-3.C) Suspended weight and arm system no.21421 20 N.m to 1000 N.m (0.06 N.m + 2.10-3.C) Suspended weight and arm system no.21428 150 N.m to 5000 N.m (0.20 N.m + 2.10-3.C) Suspended weight and arm system no.21515 10 N.m to 100 N.m (0.05 N.m + 5.10-3.C) Comparison with a torquemeter reference HBM TB1A 100 no. 061730083 associated with the measurement bridge HBM MGC plus no. 019783 100 N.m to 1000 N.m (0.05 N.m + 5.10-3.C) Comparison with a torquemeter reference HBM TB1A 1000 no. 052830025 associated with the measurement bridge HBM MGC plus no. 019783 1 iQ C torque applied. These 2 tables give indications on the measurement range of the means the absolute uncertainty of the means the method and means used to perform a task. Example Torque wrench reference S.306-200D capacity 40 N.m to 200 N.m. Service requested (product designation) COFRAC calibration certificate FACOM graduated wrench. Service reference CEC10.RJS Mark no.1 corresponds for the link with the tables. Mark no.1 is located in table 1 containing the following indications Means measurement range 40 N.m to 400 N.m Absolute uncertainty of the means 1.10-2.C Method and means used Comparison with the CS 400 sensor no. 134 CAUTION In case of partial request an offer will be issued and the wrench kept for six weeks maximum. Then it will be returned. -C Facom
