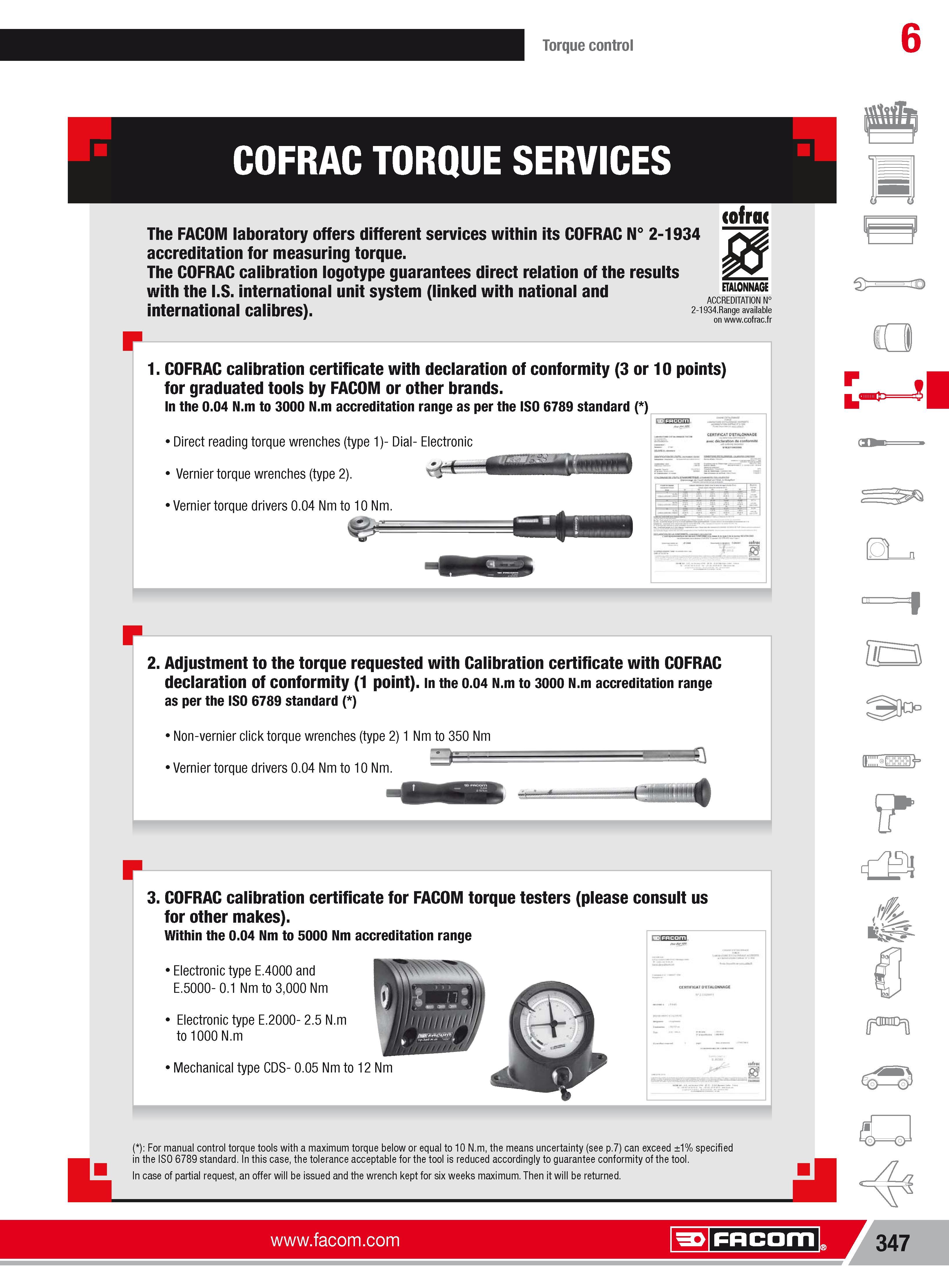

373 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.347

Каталог FACOM 2013 Инструмент Оборудование Стр. 347 0373 ENG Lab2u

Torque control 6 COFRAC TORQUE SERVICES The FACOM laboratory offers different services within its COFRAC N 2-1934 accreditation for measuring torque. The COFRAC calibration logotype guarantees direct relation of the results with the I.S. international unit system (linked with national and international calibres). ofra ETALONNAGE ACCREDITATION N 2-1934.Range available on www.cofrac.fr 1. COFRAC calibration certificate with declaration of conformity or 10 points) for graduated tools by FACOM or other brands. In the 0.04 N.m to 3000 N.m accreditation range as per the ISO 6789 standard ( ) Direct reading torque wrenches (type 1)- Dial- Electronic Vernier torque wrenches (type 2). Vernier torque drivers 0.04 NmtolO Nm. 2. Adjustment to the torque requested with Calibration certificate with COFRAC declaration of conformity (1 point). In the 0.04 N.m to 3000 N.m accreditation range as per the ISO 6789 standard ( ) Non-vernier click torque wrenches (type 2) 1 Nm to 350 Nm Vernier torque drivers 0.04 NmtolO Nm. 3. COFRAC calibration certificate for FACOM torque testers (please consult us for other makes). Within the 0.04 Nm to 5000 Nm accreditation range Electronic type E.4000 and E.5000- 0.1 Nm to 3000 Nm Electronic type E.2000- 2.5 N.m to 1000 N.m Mechanical type CDS- 0.05 Nmto12 Nm ( ) For manual control torque tools with a maximum torque belowor equal to10 N.m the means uncertainty (see p.7) can exceed 1% specified in the ISO 6789 standard. In this case the tolerance acceptable for the tool is reduced accordingly to guarantee conformity of the tool. In case of partial request an offer will be issued and the wrench kept for six weeks maximum. Then it will be returned. Facom 347
