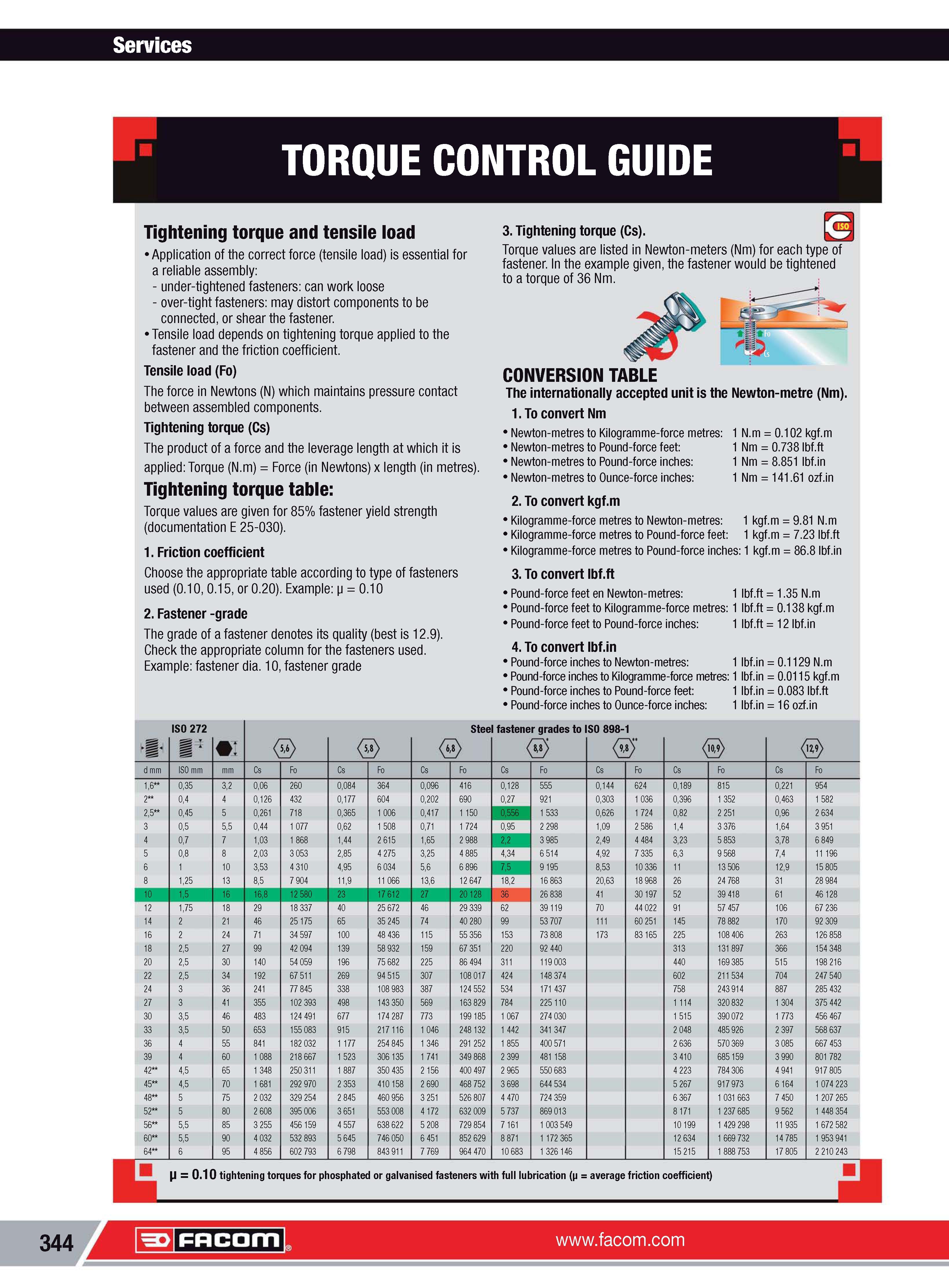

Services TORQUE CONTROL GUIDE Tightening torque and tensile load Application of the correct force (tensile load) is essential for a reliable assembly under-tightened fasteners can work loose over-tight fasteners may distort components to be connected or shear the fastener. Tensile load depends on tightening torque applied to the fastener and the friction coefficient. Tensile load (Fo) The force in Newtons (N) which maintains pressure contact between assembled components. Tightening torque (Cs) The product of a force and the leverage length at which it is applied Torque (N.m) Force (in Newtons) x length (in metres). Tightening torque table Torque values are given for 85% fastener yield strength (documentation E 25-030). 1. Friction coefficient Choose the appropriate table according to type of fasteners used (0.10 0.15 or 0.20). Example j 0.10 2. Fastener-grade The grade of a fastener denotes its quality (best is 12.9). Check the appropriate column for the fasteners used. Example fastener dia. 10 fastener grade 3. Tightening torque (Cs). Torque values are listed in Newton-meters (Nm) for each type of fastener. In the example given the fastener would be tightened to a torque of 36 Nm. sysi tjp CONVERSION TABLE The internationally accepted unit is the Newton-metre (Nm). 1. To convert Nm Newton-metres to Kilogramme-force metres Newton-metres to Pound-force feet Newton-metres to Pound-force inches Newton-metres to Ounce-force inches 1 N.m 0.102 kgf.m 1 Nm 0.738 Ibf.ft 1 Nm 8.851 Ibf.in 1 Nm 141.61 ozf.in ISO 272 2. To convert kgf.m Kilogramme-force metres to Newton-metres 1 kgf.m 9.81 N.m Kilogramme-force metres to Pound-force feet 1 kgf.m 7.23 Ibf.ft Kilogramme-force metres to Pound-force inches 1 kgf.m 86.8 Ibf.in 3. To convert Ibf.ft Pound-force feet en Newton-metres 1 lbf.ft 1.35 N.m Pound-force feet to Kilogramme-force metres 1 Ibf.ft 0.138 kgf.m Pound-force feet to Pound-force inches 1 Ibf.ft 12 Ibf.in 4. To convert Ibf.in Pound-force inches to Newton-metres 1 lbf.in 0.1129 N.m Pound-force inches to Kilogramme-force metres 1 Ibf.in 0.0115 kgf.m Pound-force inches to Pound-force feet 1 Ibf.in 0.083 Ibf.ft Pound-force inches to Ounce-force inches 1 lbf.in 16 ozf.in Steel fastener grades to ISO 898-1 1 M (i9) w d mm ISO mm mm Cs Fo Cs Fo Cs Fo Cs Fo Cs Fo Cs Fo Cs Fo 16 035 32 006 260 0084 364 0096 416 0128 555 0144 624 0189 815 0221 954 2 04 4 0126 432 0177 604 0202 690 027 921 0303 1 036 0396 1 352 0463 1 582 25 045 5 0261 718 0365 1 006 0417 1 150 0556 1 533 0626 1 724 082 2 251 096 2 634 3 05 55 044 1 077 062 1 508 071 1 724 095 2 298 109 2 586 14 3 376 164 3 951 07 103 1 868 144 2 615 165 2 988 22 3 985 249 4 484 323 5 853 378 6 849 5 08 8 203 3 053 285 4 275 325 4 885 434 6 514 492 7 335 63 9 568 74 11 196 6 1 10 353 4 310 495 6 034 56 6 896 75 9 195 853 10 336 11 13 506 129 15 805 8 125 13 85 7 904 119 11 066 136 12 647 182 16 863 2063 18 968 26 24 768 31 28 984 10 15 16 168 12 580 23 17 612 27 20 128 36 26 838 41 30 197 52 39 418 61 46 128 12 175 18 29 18 337 40 25 672 46 29 339 62 39 119 70 44 022 91 57 457 106 67 236 14 2 21 46 25 175 65 35 245 74 40 280 99 53 707 111 60 251 145 78 882 170 92 309 16 2 24 71 34 597 100 48 436 115 55 356 153 73 808 173 83 165 225 108406 263 126 858 18 25 27 99 42 094 139 58 932 159 67 351 220 92 440 313 131 897 366 154348 20 25 30 140 54 059 196 75 682 225 86 494 311 119 003 440 169 385 515 198216 22 25 34 192 67 511 269 94 515 307 108017 424 148 374 602 211 534 704 247 540 24 3 36 241 77 845 338 108 983 387 124 552 534 171 437 758 243914 887 285 432 27 3 41 355 102 393 498 143 350 569 163 829 784 225 110 1 114 320 832 1 304 375 442 30 35 46 483 124 491 677 174 287 773 199185 1 067 274 030 1 515 390 072 1 773 456 467 33 35 50 653 155 083 915 217 116 1 046 248 132 1 442 341 347 2 048 485 926 2 397 568 637 36 4 55 841 182 032 1 177 254 845 1 346 291 252 1 855 400 571 2 636 570 369 3 085 667 453 39 4 60 1 088 218 667 1 523 306 135 1 741 349 868 2 399 481 158 3 410 685 159 3 990 801 782 42 45 65 1 348 250 311 1 887 350 435 2 156 400 497 2 965 550 683 4 223 784 306 4 941 917 805 45 45 70 1 681 292 970 2 353 410 158 2 690 468 752 3 698 644 534 5 267 917973 6 164 1 074 223 48 5 75 2 032 329 254 2 845 460 956 3 251 526 807 4 470 724 359 6 367 1 031 663 7 450 1 207 265 52 5 80 2 608 395 006 3 651 553 008 4 172 632 009 5 737 869 013 8 171 1 237 685 9 562 1 448 354 56 55 85 3 255 456 159 4 557 638 622 5 208 729 854 7 161 1 003 549 10 199 1 429 298 11 935 1 672 582 60 55 90 4 032 532 893 5 645 746 050 6 451 852 629 8 871 1 172 365 12 634 1 669 732 14 785 1 953 941 64 6 95 4 856 602 793 6 798 843 911 7 769 964 470 10 683 1 326146 15 215 1 888 753 17 805 2 210 243 0.10 tightening torques for phosphated or galvanised fasteners with full lubrication fo average friction coefficient) 344 Facom
