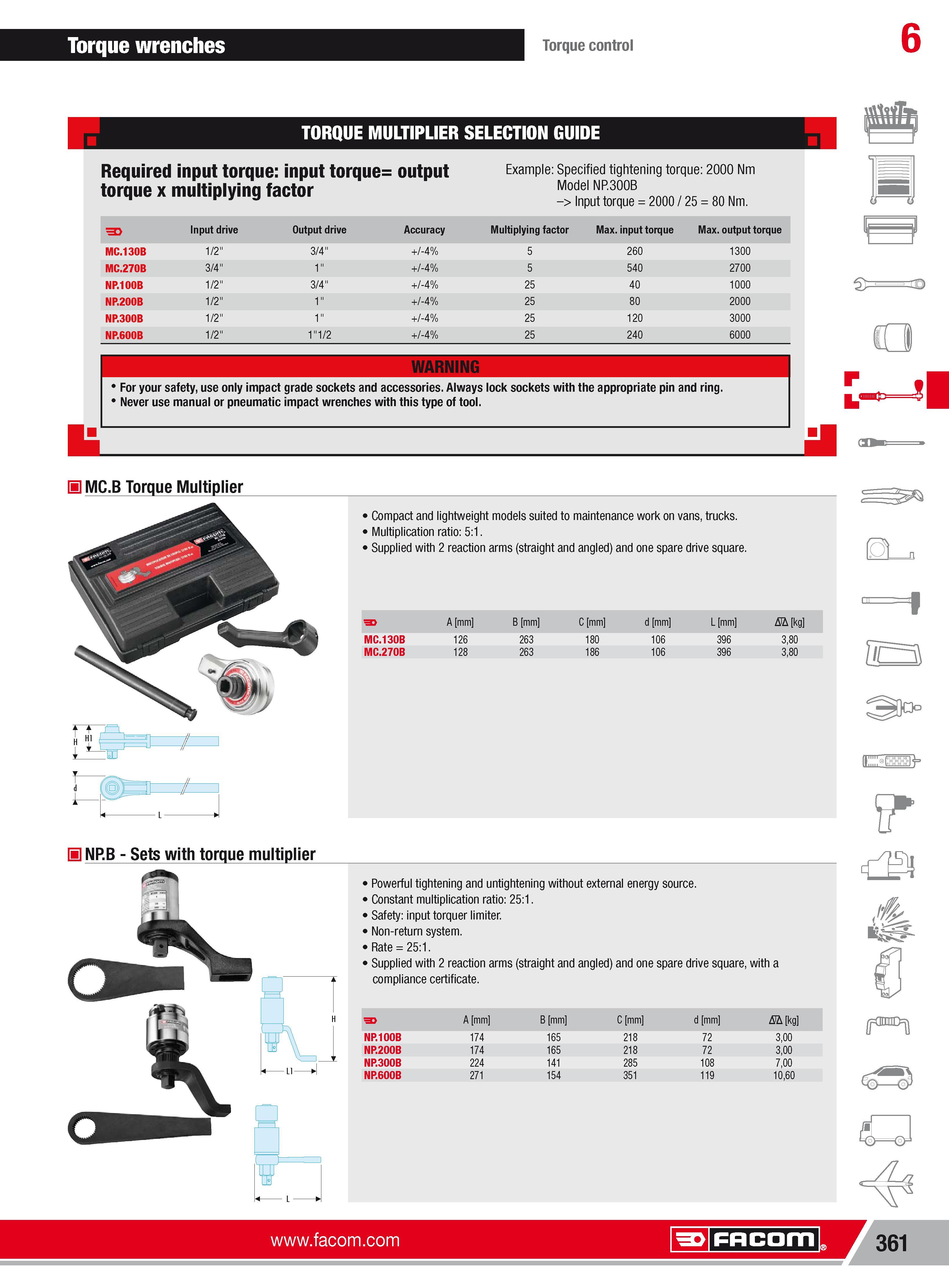

387 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.361

Каталог FACOM 2013 Инструмент Оборудование Стр. 361 0387 ENG Lab2u

Torque wrenches Torque control 6 TORQUE MULTIPLIER SELECTION GUIDE Required input torque input torque output torque x multiplying factor Example Specified tightening torque 2000 Nm Model NP300B Input torque 2000 25 80 Nm. WARNING For your safety use only impact grade sockets and accessories. Always lock sockets with the appropriate pin and ring. Never use manual or pneumatic impact wrenches with this type of tool. F Input drive Output drive Accuracy Multiplying factor Max. input torque Max. output torque MC.130B 1/2" 3/4" + -4% 5 260 1300 MC.270B 3/4" 1" + -4% 5 540 2700 NP.100B 1/2" 3/4" + -4% 25 40 1000 NP.200B 1/2" 1" + -4% 25 80 2000 NP.300B 1/2" 1" + -4% 25 120 3000 NP.600B 1/2" 1"1 2 + -4% 25 240 6000 1 11 MC.B Torque Multiplier Compact and lightweight models suited to maintenance work on vans trucks. Multiplication ratio 5:1. Supplied with 2 reaction arms (straight and angled) and one spare drive square. A mm B mm C mm d mm L mm Nh kg MC.130B 126 263 180 106 396 380 MC.270B 128 263 186 106 396 380 H NP.B Sets with torque multiplier Powerful tightening and untightening without external energy source. Constant multiplication ratio 25:1. Safety input torquer limiter. Non-return system. Rate 25:1. Supplied with 2 reaction arms (straight and angled) and one spare drive square with a compliance certificate. A mm B mm C mm d mm Nh kg NP.100B 174 165 218 72 300 NP.200B 174 165 218 72 300 NP.300B 224 141 285 108 700 NP.600B 271 154 351 119 1060 Facom 361 L
