388 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.362

Каталог FACOM 2013 Инструмент Оборудование Стр. 362 0388 ENG Lab2u

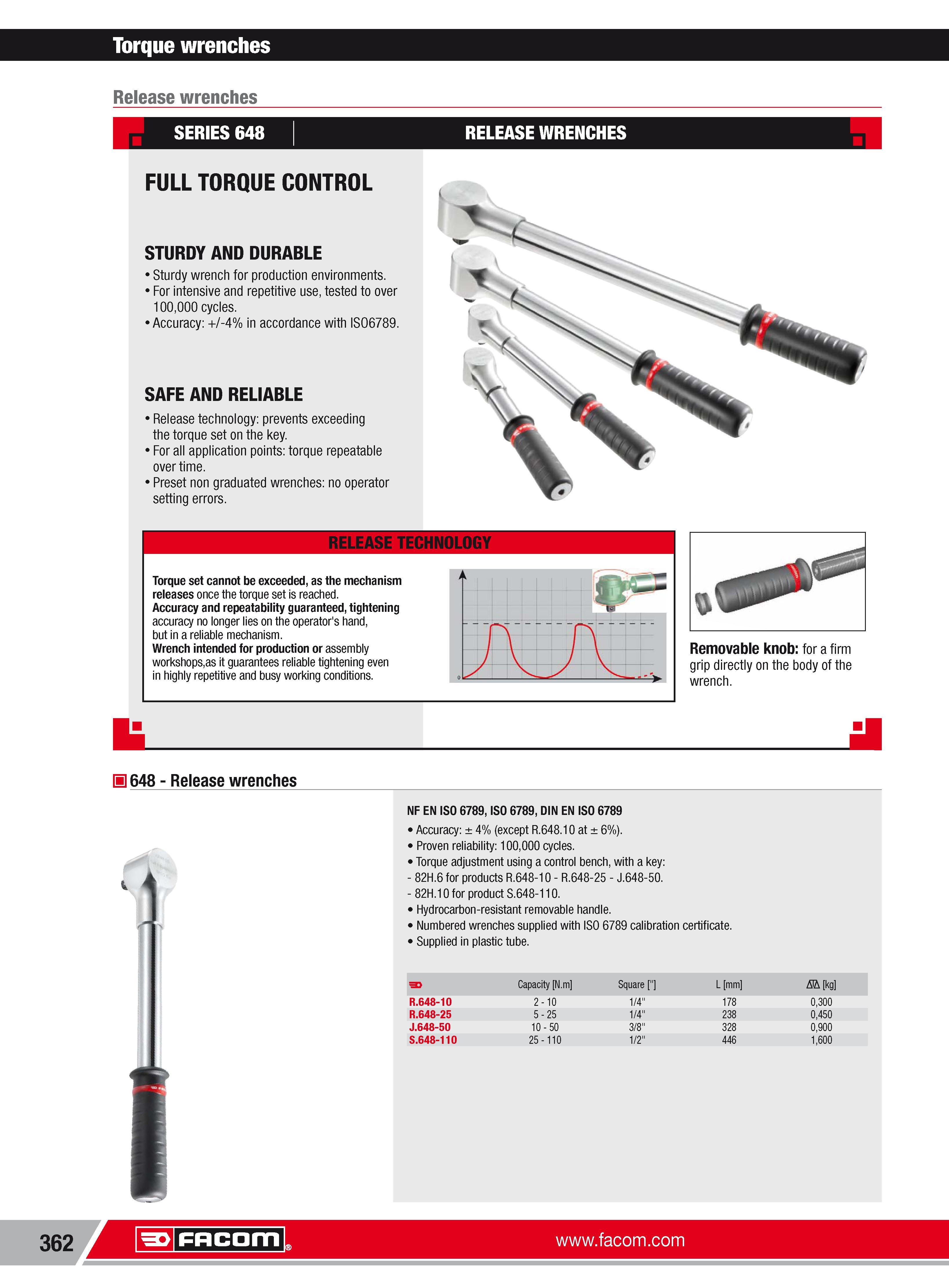

Torque wrenches Release wrenches SERIES 648 RELEASE WRENCHES FULL TORQUE CONTROL STURDY AND DURABLE Sturdy wrench for production environments. For intensive and repetitive use tested to over 100000 cycles. Accuracy +1-4% in accordance with IS06789. SAFE AND RELIABLE Release technology prevents exceeding the torque set on the key. For all application points torque repeatable overtime. Preset non graduated wrenches no operator setting errors. RELEASE TECHNOLOGY Torque set cannot be exceeded as the mechanism releases once the torque set is reached. Accuracy and repeatability guaranteed tightening accuracy no longer lies on the operator's hand but in a reliable mechanism. Wrench intended for production or assembly workshopsas it guarantees reliable tightening even in highly repetitive and busy working conditions. Removable knob for a firm grip directly on the body of the wrench. H 648 Release wrenches NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy 4% (except R.648.10 at 6%). Proven reliability 100000 cycles. Torque adjustment using a control bench with a key 82H.6 for products R.648-10 R.648-25 J.648-50. 82H.10 for product S.648-110. Hydrocarbon-resistant removable handle. Numbered wrenches supplied with ISO 6789 calibration certificate. Supplied in plastic tube. 3 Capacity N.m Square " L mm Nh kg R.648-10 2 10 1/4" 178 0300 R.648-25 5 25 1/4" 238 0450 J.648-50 10 50 3/8" 328 0900 S.648-110 25 110 1/2" 446 1600 Facom
