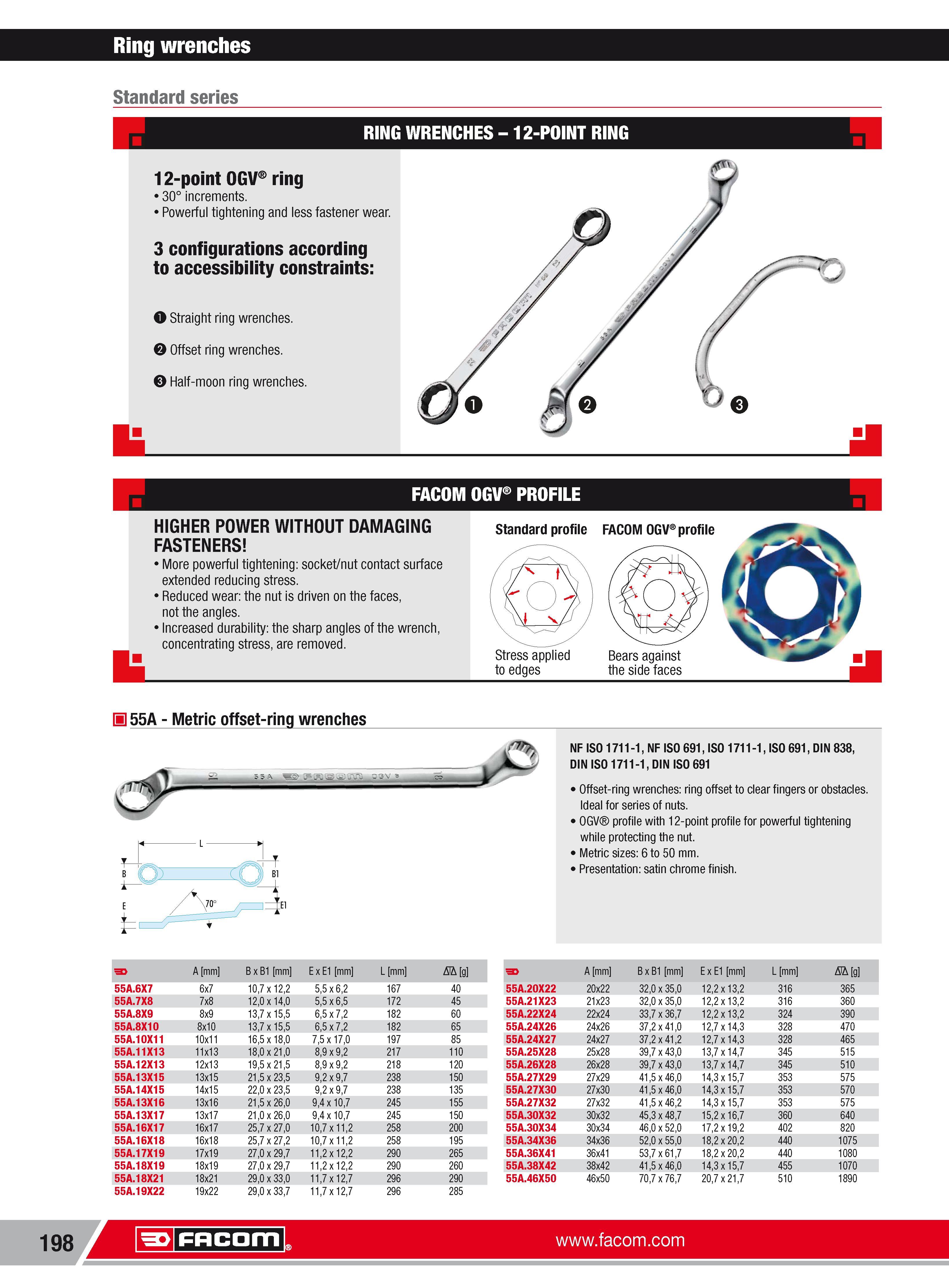

Ring wrenches Standard series d RING WRENCHES 12-POINT RING 12-point OGV ring 30 increments. Powerful tightening and less fastener wear. 3 configurations according to accessibility constraints O Straight ring wrenches. 0 Offset ring wrenches. Half-moon ring wrenches. b d FACOM OGV PROFILE HIGHER POWER WITHOUT DAMAGING FASTENERS More powerful tightening socket nut contact surface extended reducing stress. Reduced wear the nut is driven on the faces not the angles. Increased durability the sharp angles of the wrench concentrating stress are removed. b Standard profile FACOM OGV profile Stress applied to edges Bears against the side faces H 55A Metric offset-ring wrenches B1 4 70 NF ISO 1711-1 NF ISO 691 ISO 1711-1 ISO 691 DIN 838 DIN ISO 1711-1 DIN ISO 691 Offset-ring wrenches ring offset to clear fingers or obstacles. Ideal for series of nuts. OGV profile with 12-point profile for powerful tightening while protecting the nut. Metric sizes 6 to 50 mm. Presentation satin chrome finish. L B E 3 A mm B x B1 mm E x E1 mm L mm Nh g 55A.6X7 6x7 107 x 122 55 x 62 167 40 55A.7X8 7x8 120x 140 55 x 65 172 45 55A.8X9 8x9 137 x 155 65 x 72 182 60 55A.8X10 8x10 137 x 155 65 x 72 182 65 55A.19X22 19x22 290 x 337 117 x 127 296 285 198 A mm B x B1 mm E x E1 mm L mm NA g 55A.20X22 20x22 320 x 350 122 x 132 316 365 55A.21X23 21x23 320 x 350 122 x 132 316 360 55A.22X24 22x24 337 x 367 122 x 132 324 390 55A.24X26 24x26 372x410 127x143 328 470 Facom
