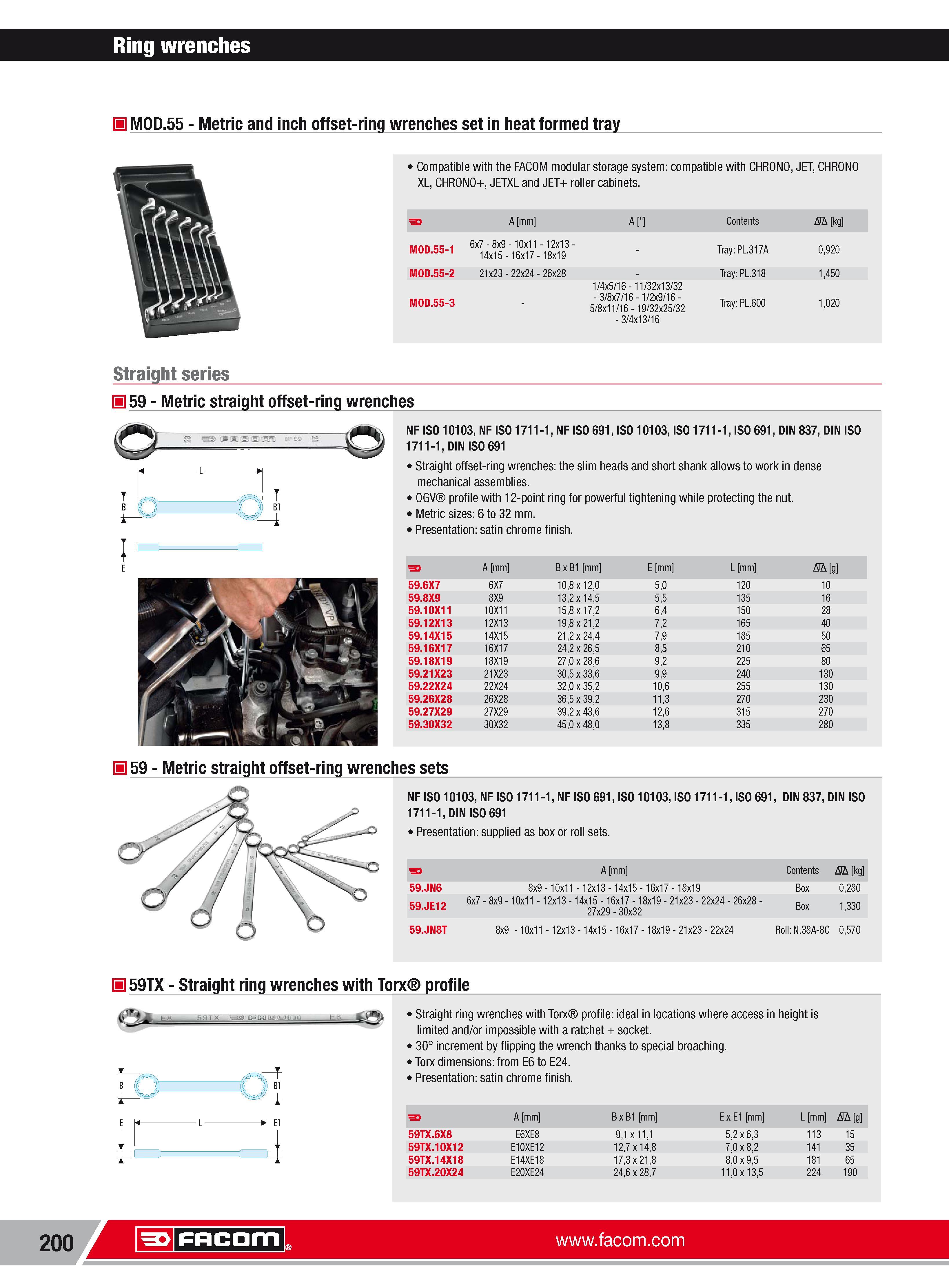

Ring wrenches H MOD.55 Metric and inch offset-ring wrenches set in heat formed tray Compatible with the FACOM modular storage system compatible with CHRONO JET CHRONO XL CHRONO+ JETXL and JET+ roller cabinets. 3 A mm A " Contents MA kg MOD.55-1 6x7 8x9 10x11 12x13 -14x15-16x17-18x19 Tray PL.317A 0920 MOD.55-2 21x23 22x24 26x28 Tray PL.318 1450 MOD.55-3 1 4x5 16-11 32x13 32 3 8x7 16 1 2x9 16 -5 8x11 16 19 32x25 32 Tray PL.600 1020 3 4x13 16 Straight series 59 Metric straight offset-ring wrenches ) NF ISO 10103 NF ISO 1711-1 NF ISO 691 ISO 10103 ISO 1711-1 ISO 691 DIN 837 DIN ISO 1711-1 DIN ISO 691 Straight offset-ring wrenches the slim heads and short shank allows to work in dense mechanical assemblies. OGV profile with 12-point ring for powerful tightening while protecting the nut. Metric sizes 6 to 32 mm. Presentation satin chrome finish. 59 Metric straight offset-ring wrenches sets NF ISO 10103 NF ISO 1711-1 NF ISO 691 ISO 10103 ISO 1711-1 ISO 691 DIN 837 DIN ISO 1711-1 DIN ISO 691 Presentation supplied as box or roll sets. A mm Contents MA kg 59.JN6 8x9 10x11 12x13 14x15 16x17 18x19 Box 0280 59.JE12 6x7 8x9 10x11 12x13 14x15 16x17 18x19 21x23 22x24 26x28 -27x29 30x32 Box 1330 59.JN8T 8x9 10x11 12x13 14x15 16x17 18x19 21x23 22x24 Roll N.38A-8C 0570 59TX Straight ring wrenches with Torx profile Straight ring wrenches with Torx profile ideal in locations where access in height is limited and or impossible with a ratchet + socket. 30 increment by flipping the wrench thanks to special broaching. Torx dimensions from E6 to E24. Presentation satin chrome finish. t L 3 A mm B x B1 mm E x E1 mm L mm AA g 59TX.6X8 E6XE8 91 x 111 52 x 63 113 15 59TX.10X12 E10XE12 127x148 70 x 82 141 35 59TX.14X18 E14XE18 173 x 218 80 x 95 181 65 59TX.20X24 E20XE24 246x287 110 x 135 224 190 200 Facom L E
