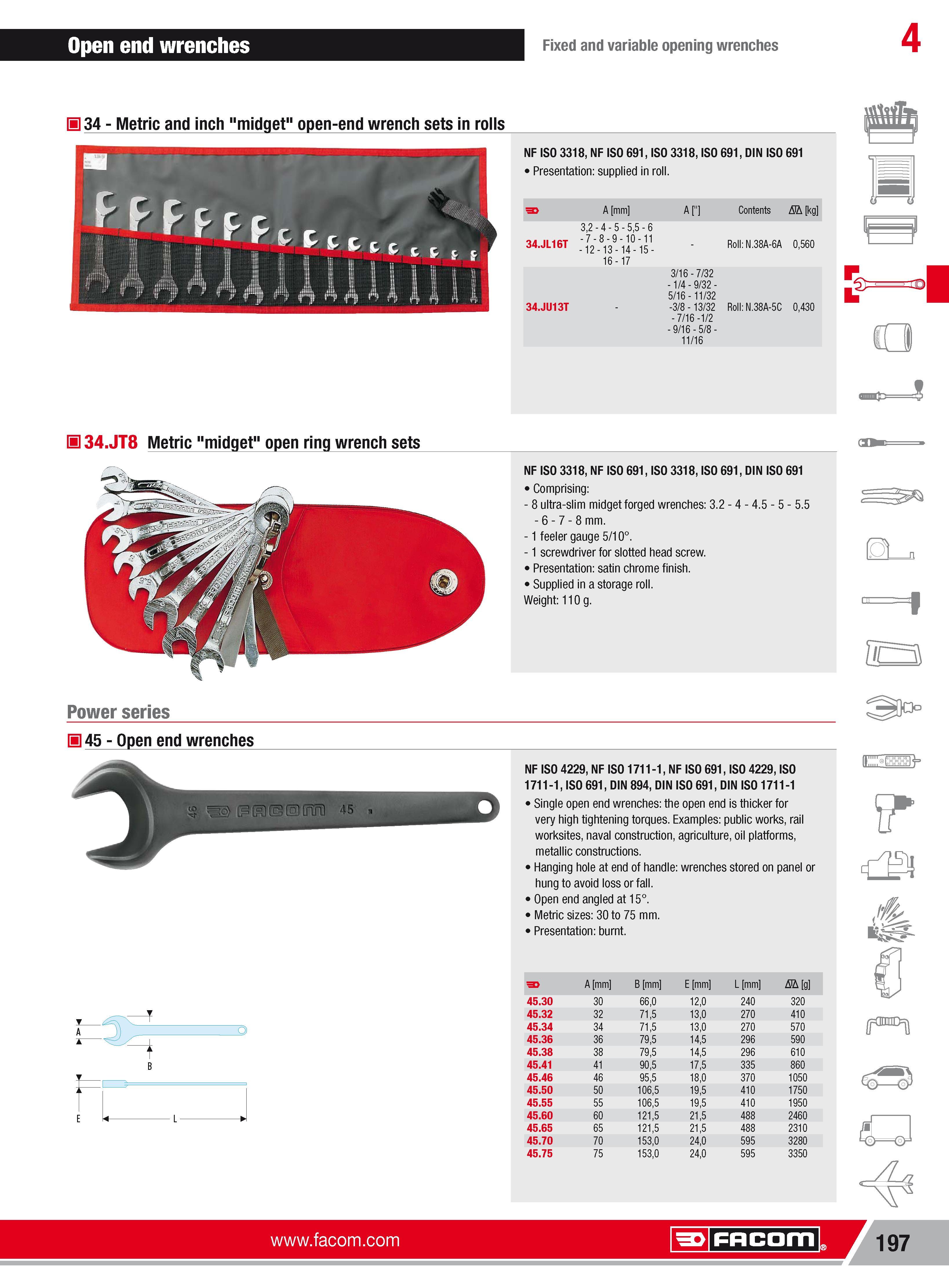

223 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.197

Каталог FACOM 2013 Инструмент Оборудование Стр. 197 0223 ENG Lab2u

Open end wrenches Fixed and variable opening wrenches 4 34 Metric and inch "midget" open-end wrench sets in rolls NF ISO 3318 NF ISO 691 ISO 3318 ISO 691 DIN ISO 691 Presentation supplied in roll. 34.JL16T 34.JU13T A mm A " Contents AIA kg 32 -4-5- 55 6 7 8 9 10 11 -12-13-14-1516 17 Roll N.38A-6A 0560 3 16-7 32 -1 4-9 32- 5 16-11 32 -3 8 13 32 -7 16-1 2 -9 16-5 811 16 Roll N.38A-5C 0430 i c H 34.JT8 Metric "midget" open ring wrench sets 3 Power series H 45 Open end wrenches NF ISO 3318 NF ISO 691 ISO 3318 ISO 691 DIN ISO 691 Comprising 8 ultra-slim midgetforged wrenches 3.2-4-4.5-5- 5.5 6 7 8 mm. -1 feelergauge 5 10. 1 screwdriver for slotted head screw. Presentation satin chrome finish. Supplied in a storage roll. Weight 110g. NF ISO 4229 NF ISO 1711-1 NF ISO 691 ISO 4229 ISO 1711-1 ISO 691 DIN 894 DIN ISO 691 DIN ISO 1711-1 Single open end wrenches the open end is thicker for very high tightening torques. Examples public works rail worksites naval construction agriculture oil platforms metallic constructions. Hanging hole at end of handle wrenches stored on panel or hung to avoid loss or fall. Open end angled at 15. Metric sizes 30 to 75 mm. Presentation burnt. A mm B mm E mm L mm AA g 45.30 30 660 120 240 320 45.32 32 715 130 270 410 45.34 34 715 130 270 570 45.36 36 795 145 296 590 45.38 38 795 145 296 610 45.41 41 905 175 335 860 45.46 46 955 180 370 1050 45.50 50 1065 195 410 1750 45.55 55 1065 195 410 1950 45.60 60 1215 215 488 2460 45.65 65 1215 215 488 2310 45.70 70 1530 240 595 3280 45.75 75 1530 240 595 3350 Facom 197
