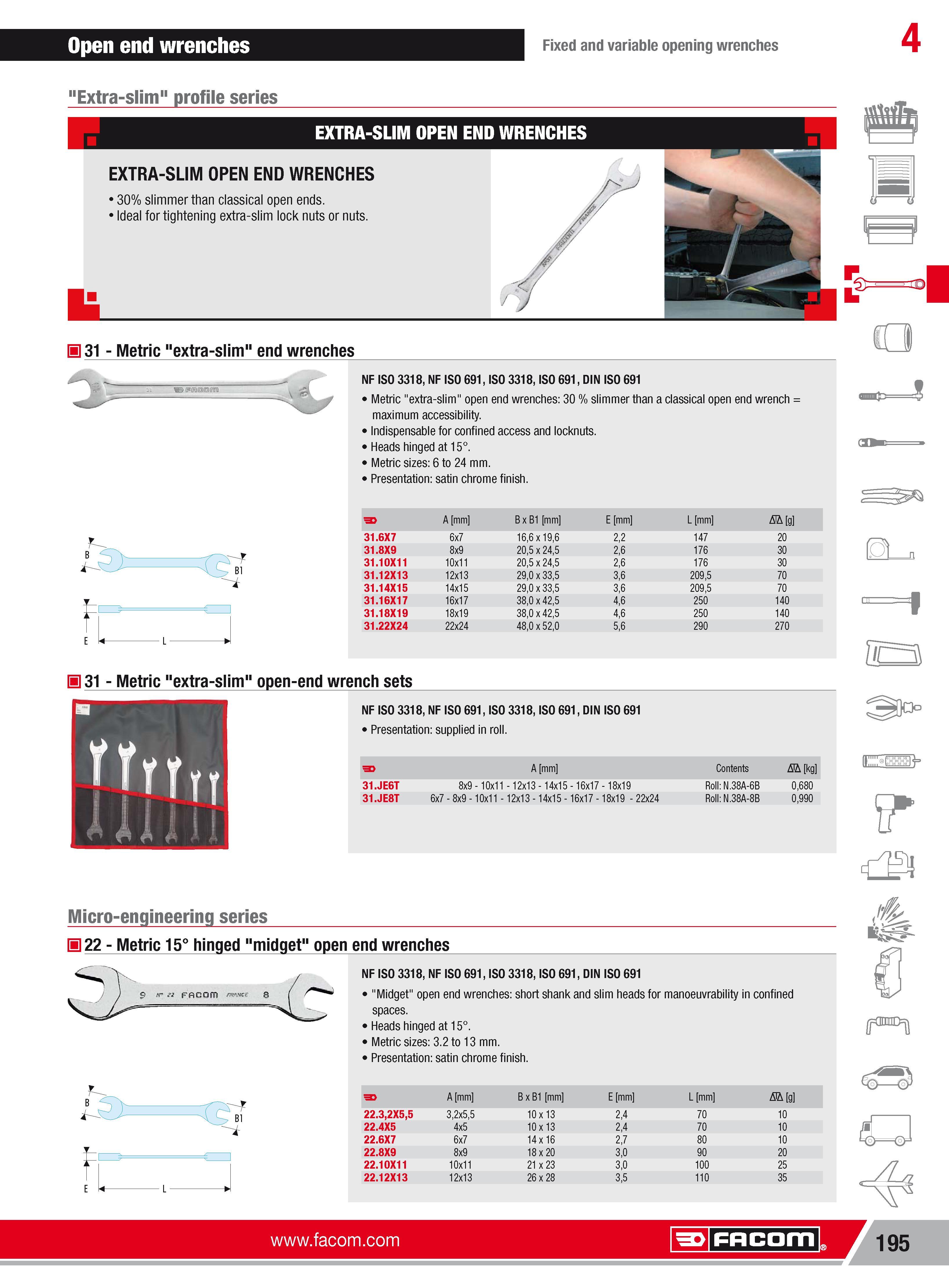

Open end wrenches Fixed and variable opening wrenches 4 "Extra-slim" profile series d EXTRA-SLIM OPEN END WRENCHES EXTRA-SLIM OPEN END WRENCHES 30% slimmerthan classical open ends. Ideal for tightening extra-slim lock nuts or nuts. 31 Metric "extra-slim" end wrenches NF ISO 3318 NF ISO 691 ISO 3318 ISO 691 DIN ISO 691 Metric "extra-slim" open end wrenches 30 slimmer than a classical open end wrench maximum accessibility. Indispensable for confined access and locknuts. Heads hinged at 15. Metric sizes 6 to 24 mm. Presentation satin chrome finish. E k 0 31 Metric "extra-slim" open-end wrench sets NF ISO 3318 NF ISO 691 ISO 3318 ISO 691 DIN ISO 691 Presentation supplied in roll. A mm Contents MA kg 31.JE6T 8x9 10x11 12x13 14x15 16x17 18x19 Roll N.38A-6B 0680 31.JE8T 6x7 8x9 10x11 12x13 14x15 16x17 18x19 22x24 Roll N.38A-8B 0990 r Micro-engineering series 22 Metric 15 hinged "midget" open end wrenches E k NF ISO 3318 NF ISO 691 ISO 3318 ISO 691 DIN ISO 691 "Midget" open end wrenches short shank and slim heads for manoeuvrability in confined spaces. Heads hinged at 15. Metric sizes 3.2 to 13 mm. Presentation satin chrome finish. A mm B x B1 mm E mm L mm AIA g 22.32X55 32x55 10 x 13 24 70 10 22.4X5 4x5 10 x 13 24 70 10 22.6X7 6x7 14x16 7 2 80 10 22.8X9 8x9 18 x 20 30 90 20 22.10X11 10x11 21 x 23 30 100 25 22.12X13 12x13 26 x 28 35 110 35 Facom 195 Facom
