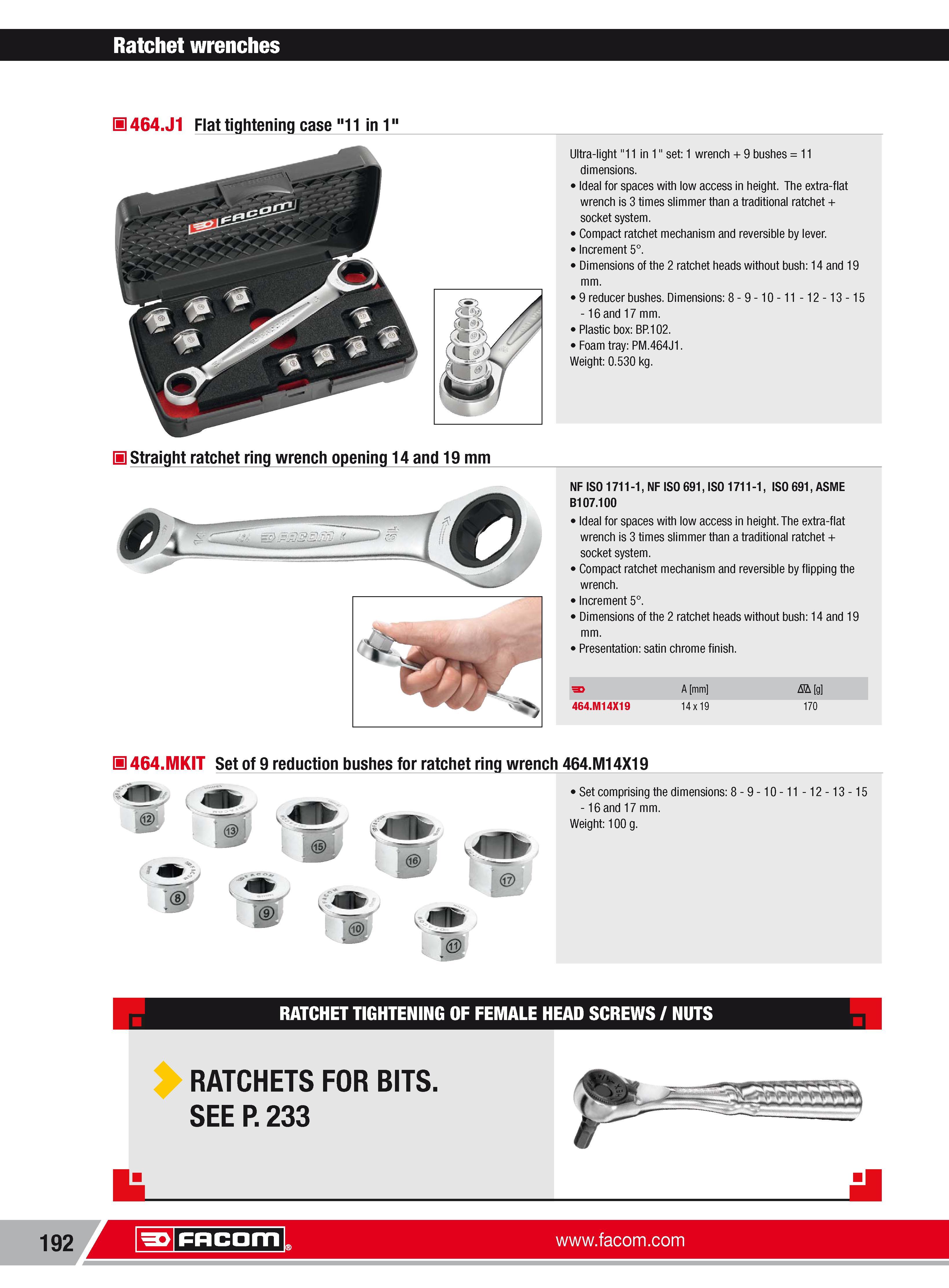

Ratchet wrenches H 464.J1 Flat tightening case "11 in 1" Ultra-light "11 in 1" set 1 wrench + 9 bushes 11 dimensions. Ideal for spaces with low access in height. The extra-flat wrench is 3 times slimmer than a traditional ratchet + socket system. Compact ratchet mechanism and reversible by lever. Increment 5. Dimensions of the 2 ratchet heads without bush 14 and 19 mm. 9 reducer bushes. Dimensions 8-9-10-11 -12-13-15 16 and 17 mm. Plastic box BP. 102. Foam tray PM.464J1. Weight 0.530 kg. H Straight ratchet ring wrench opening 14 and 19 mm NF ISO 1711-1 NF ISO 691 ISO 1711-1 ISO 691 ASME B107.100 Ideal for spaces with low access in height. The extra-flat wrench is 3 times slimmer than a traditional ratchet + socket system. Compact ratchet mechanism and reversible by flipping the wrench. Increment 5. Dimensions of the 2 ratchet heads without bush 14 and 19 mm. Presentation satin chrome finish. 464.M14X19 A mm 14x19 Nh g 170 H 464.MKIT Set of 9 reduction bushes for ratchet ring wrench 464.M14X19 D (D ( t Set comprising the dimensions 8 16 and 17 mm. Weight 100 g. 9-10-11-12-13-15 RATCHET TIGHTENING OF FEMALE HEAD SCREWS NUTS RATCHETS FOR BITS. SEE P. 233 192 Facom
