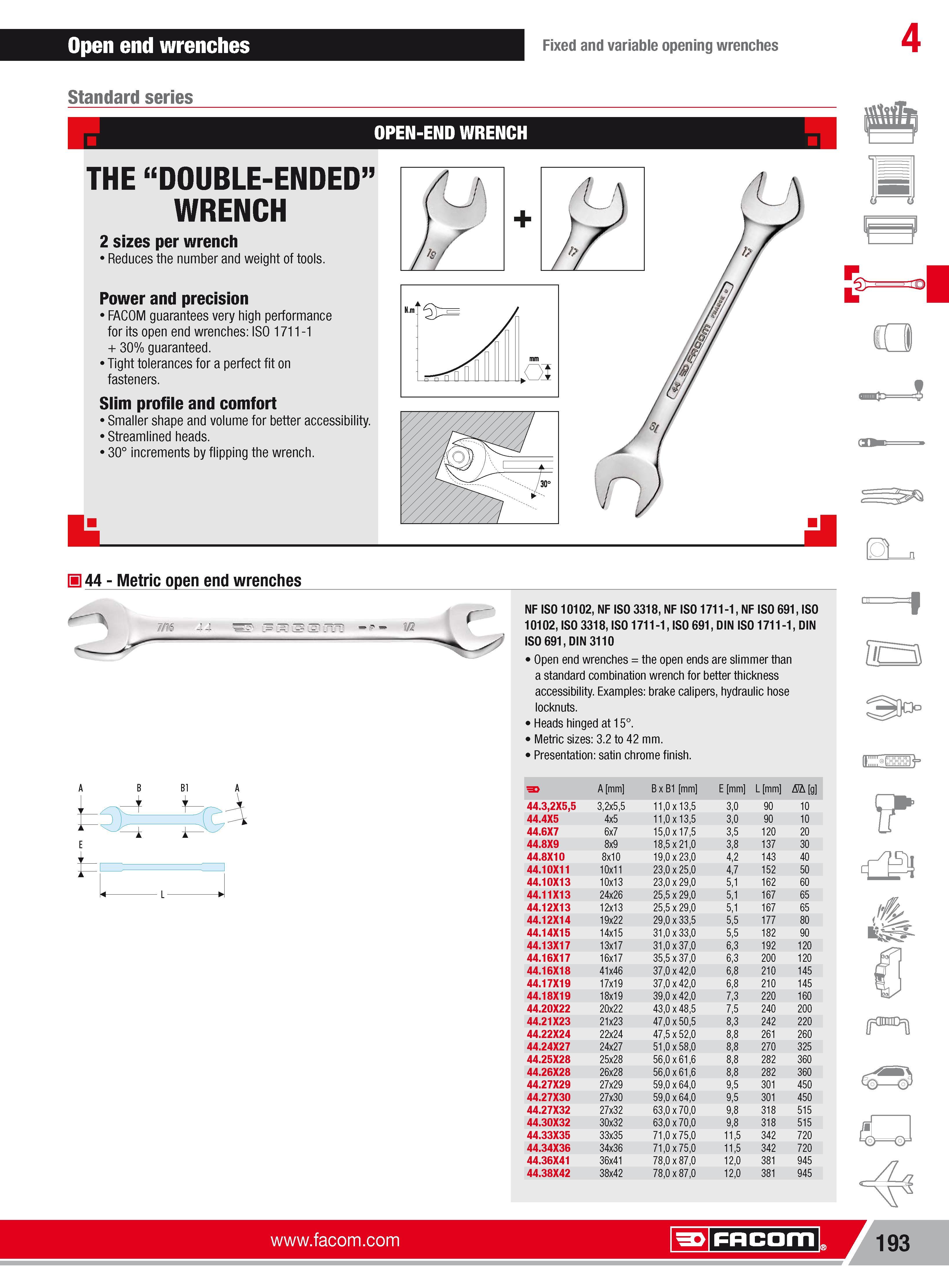

219 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.193

Каталог FACOM 2013 Инструмент Оборудование Стр. 193 0219 ENG Lab2u

Open end wrenches Fixed and variable opening wrenches 4 Standard series d OPEN-END WRENCH b THE DOUBLE-ENDED WRENCH 2 sizes per wrench Reduces the number and weight of tools. Power and precision FACOM guarantees very high performance for its open end wrenches ISO 1711-1 + 30% guaranteed. Tight tolerances for a perfect fit on fasteners. Slim profile and comfort Smaller shape and volume for better accessibility. Streamlined heads. 30 increments by flipping the wrench. H 44 Metric open end wrenches NF ISO 10102 NF ISO 3318 NF ISO 1711-1 NF ISO 691 ISO 10102 ISO 3318 ISO 1711-1 ISO 691 DIN ISO 1711-1 DIN ISO 691 DIN 3110 Open end wrenches the open ends are slimmer than a standard combination wrench for better thickness accessibility. Examples brake calipers hydraulic hose locknuts. Heads hinged at 15. Metric sizes 3.2 to 42 mm. Presentation satin chrome finish. i E A mm B x B1 mm E mm L mm Nh g 44.32X55 32x55 110 x 135 30 90 10 44.4X5 4x5 110 x 135 30 90 10 44.6X7 6x7 150 x 175 35 120 20 44.8X9 8x9 185 x 210 38 137 30 44.8X10 8x10 190 x 230 42 143 40 44.10X11 10x11 230 x 250 47 152 50 44.10X13 10x13 230 x 290 51 162 60 44.11X13 24x26 255 x 290 51 167 65 44.12X13 12x13 255 x 290 51 167 65 44.12X14 19x22 290 x 335 55 177 80 44.14X15 14x15 310 x 330 55 182 90 44.13X17 13x17 310 x 370 63 192 120 44.16X17 16x17 355 x 370 63 200 120 44.16X18 41x46 370x420 68 210 145 44.17X19 17x19 370x420 68 210 145 44.18X19 18x19 390x420 73 220 160 44.20X22 20x22 430x485 75 240 200 44.21X23 21x23 470x505 83 242 220 44.22X24 22x24 475x520 88 261 260 44.24X27 24x27 510 x 580 88 270 325 44.25X28 25x28 560 x 616 88 282 360 44.26X28 26x28 560 x 616 88 282 360 44.27X29 27x29 590x640 95 301 450 44.27X30 27x30 590x640 95 301 450 44.27X32 27x32 630 x 700 98 318 515 44.30X32 30x32 630 x 700 98 318 515 44.33X35 33x35 710 x 750 115 342 720 44.34X36 34x36 710 x 750 115 342 720 44.36X41 36x41 780 x 870 120 381 945 44.38X42 38x42 780 x 870 120 381 945 Facom 193 L Facom
