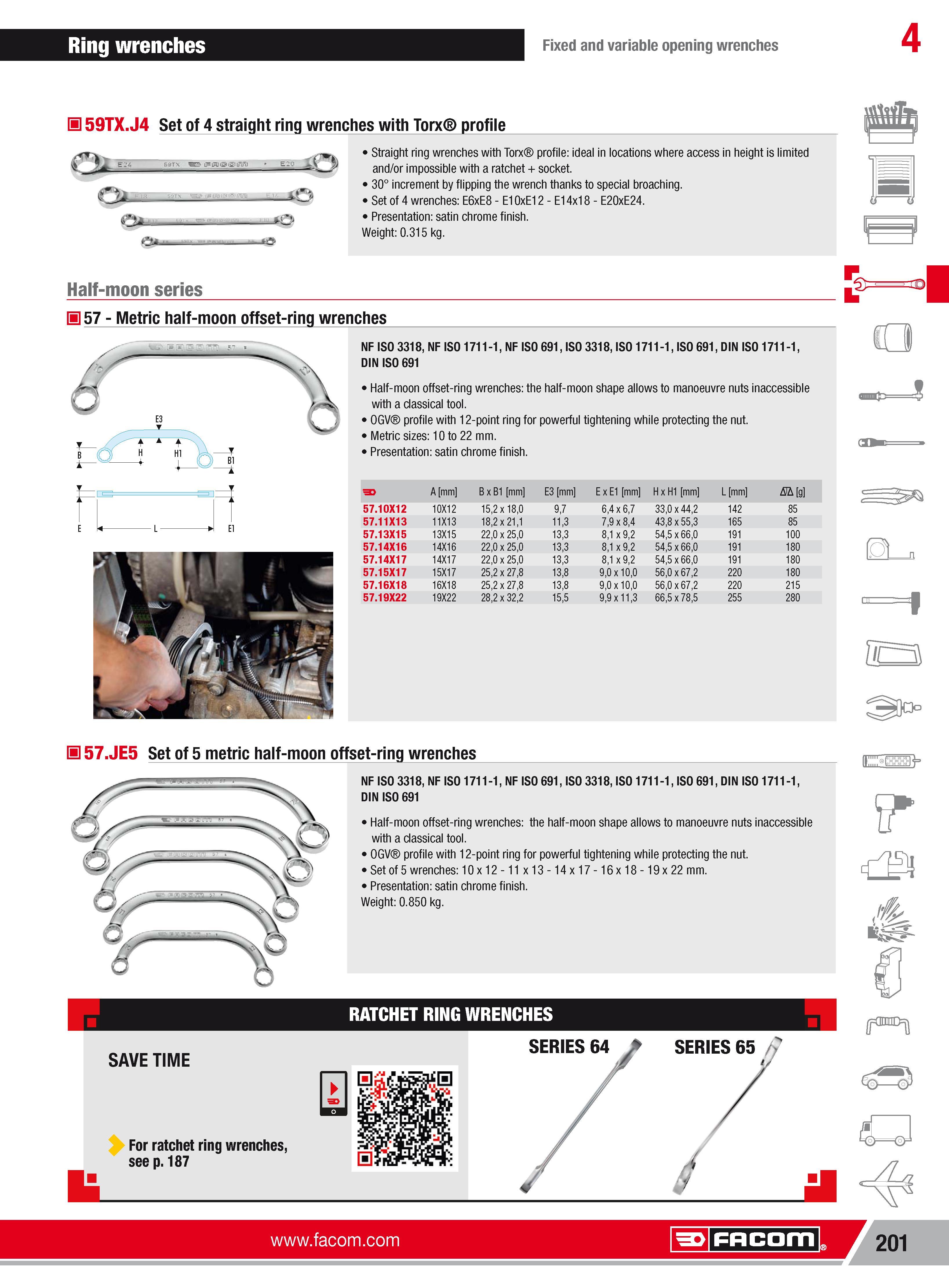

Ring wrenches Fixed and variable opening wrenches 4 H 59TX.J4 Set of 4 straight ring wrenches with Torx profile Straight ring wrenches with Torx profile ideal in locations where access in height is limited and or impossible with a ratchet + socket. 30 increment by flipping the wrench thanks to special broaching. Set of 4 wrenches E6xE8 E10xE12-E14x18- E20xE24. Presentation satin chrome finish. Weight 0.315 kg. Half-moon series 57 Metric half-moon offset-ring wrenches E3 T H HI B1 A NF ISO 3318 NF ISO 1711-1 NF ISO 691 ISO 3318 ISO 1711-1 ISO 691 DIN ISO 1711-1 DIN ISO 691 Half-moon offset-ring wrenches the half-moon shape allows to manoeuvre nuts inaccessible with a classical tool. OGV profile with 12-point ring for powerful tightening while protecting the nut. Metric sizes 10to22 mm. Presentation satin chrome finish. 4 A mm B x B1 mm E3 mm E x E1 mm H x H1 mm L mm Nh g 57.10X12 10X12 152 x 180 97 64x67 330x442 142 85 57.11X13 11X13 182 x 211 113 79 x 84 438x553 165 85 57.13X15 13X15 220 x 250 133 81 x 92 545x660 191 100 57.14X16 14X16 220 x 250 133 81 x 92 545x660 191 180 57.14X17 14X17 220 x 250 133 81 x 92 545x660 191 180 57.15X17 15X17 252 x 278 138 90 x 100 560 x 672 220 180 57.16X18 16X18 252 x 278 138 90 x 100 560 x 672 220 215 57.19X22 19X22 282 x 322 155 99 x 113 665 x 785 255 280 H 57.JE5 Set of 5 metric half-moon offset-ring wrenches NF ISO 3318 NF ISO 1711-1 NF ISO 691 ISO 3318 ISO 1711-1 ISO 691 DIN ISO 1711-1 DIN ISO 691 Half-moon offset-ring wrenches the half-moon shape allows to manoeuvre nuts inaccessible with a classical tool. OGV profile with 12-point ring for powerful tightening while protecting the nut. Set of 5 wrenches 10x12-11x13-14x17-16x18-19x22mm. Presentation satin chrome finish. Weight 0.850 kg. RATCHET RING WRENCHES SAVE TIME For ratchet ring wrenches see p. 187 SERIES 65 Facom 201 E L E1 Facom
