820 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.823

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 823 0820 ENG Lab2u

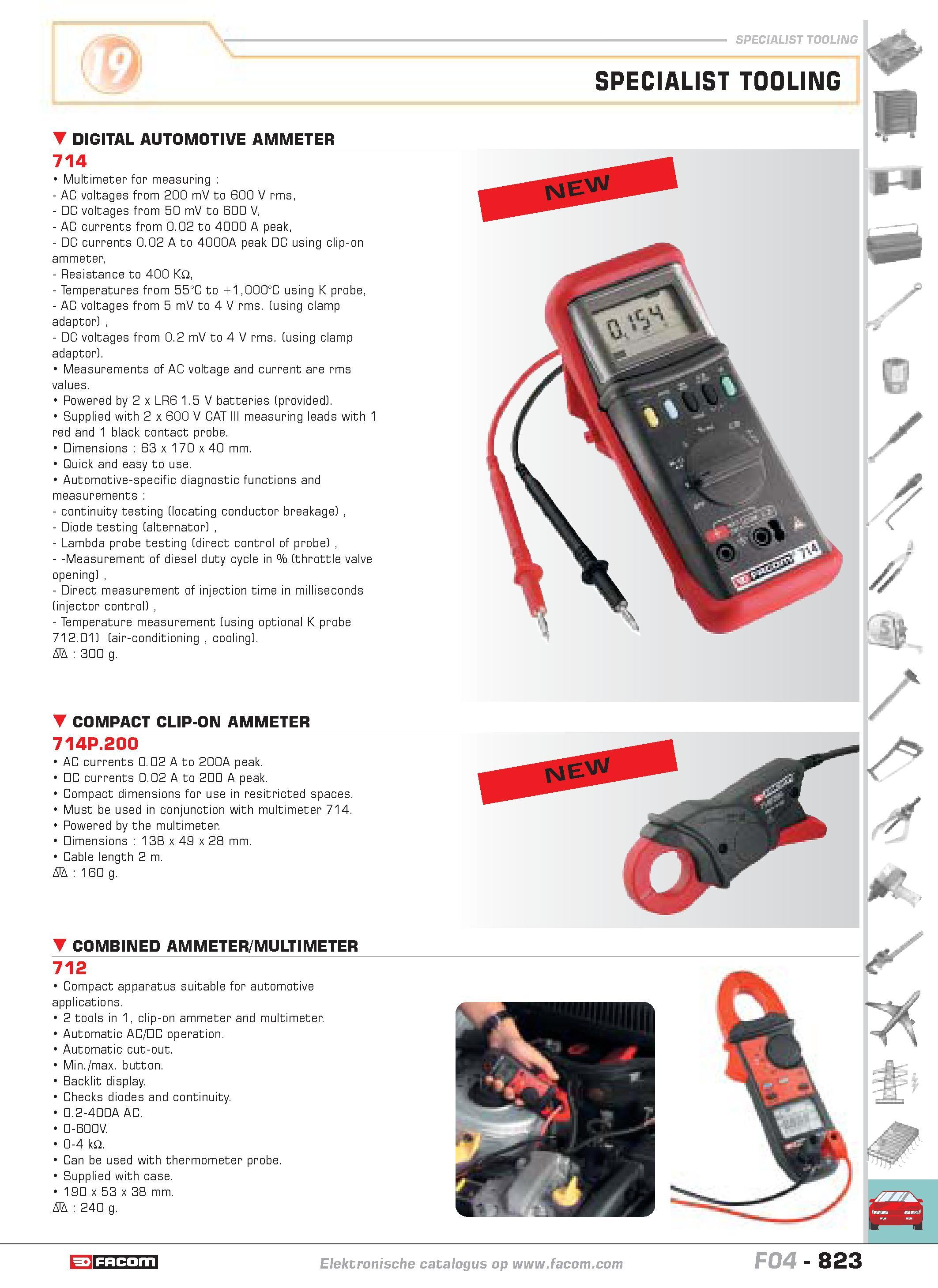

SPECIALIST TOOLING SPECIALIST TOOLING DIGITAL AUTOMOTIVE AMMETER 714 Multimeter for measuring AC voltages from 200 mV to 600 V rms DC voltages from 50 mV to 600 V AC currents from 0.02 to 4000 A peak DC currents 0.02 A to 4000A peak DC using clip-on ammeter Resistance to 400 KO Temperatures from 55C to +1000C using K probe AC voltages from 5 mV to 4 V rms. (using clamp adaptor) DC voltages from 0.2 mV to 4 V rms. (using clamp adaptor). Measurements of AC voltage and current are rms values. Powered by 2 x LR6 1.5 V batteries (provided). Supplied with 2 x 600 V CAT III measuring leads with 1 red and 1 black contact probe. Dimensions 63 x 170 x 40 mm. Quick and easy to use. Automotive-specific diagnostic functions and measurements continuity testing (locating conductor breakage) Diode testing (alternator) Lambda probe testing (direct control of probe) -Measurement of diesel duty cycle in (throttle valve opening) Direct measurement of injection time in milliseconds (injector control) Temperature measurement (using optional K probe 712.01) (air-conditioning cooling). D 300 g. COMPACT CLIP-ON AMMETER 714P.200 AC currents 0.02 A to 200A peak. DC currents 0.02 A to 200 A peak. Compact dimensions for use in resitricted spaces. Must be used in conjunction with multimeter 714. Powered by the multimeter. Dimensions 138 x 49 x 28 mm. Cable length 2 m. D 160 g. COMBINED AMMETER MULTIMETER 712 Compact apparatus suitable for automotive applications. 2 tools in 1 clip-on ammeter and multimeter. Automatic AC DC operation. Automatic cut-out. Min. max. button. Backlit display. Checks diodes and continuity. 0.2-400A AC. 0-600V. 0-4 kO. Can be used with thermometer probe. Supplied with case. 190 x 53 x 38 mm. D 240 g. fc 3ld;W Inl Elektronische catalogus op catalogue FACOM F05 823
