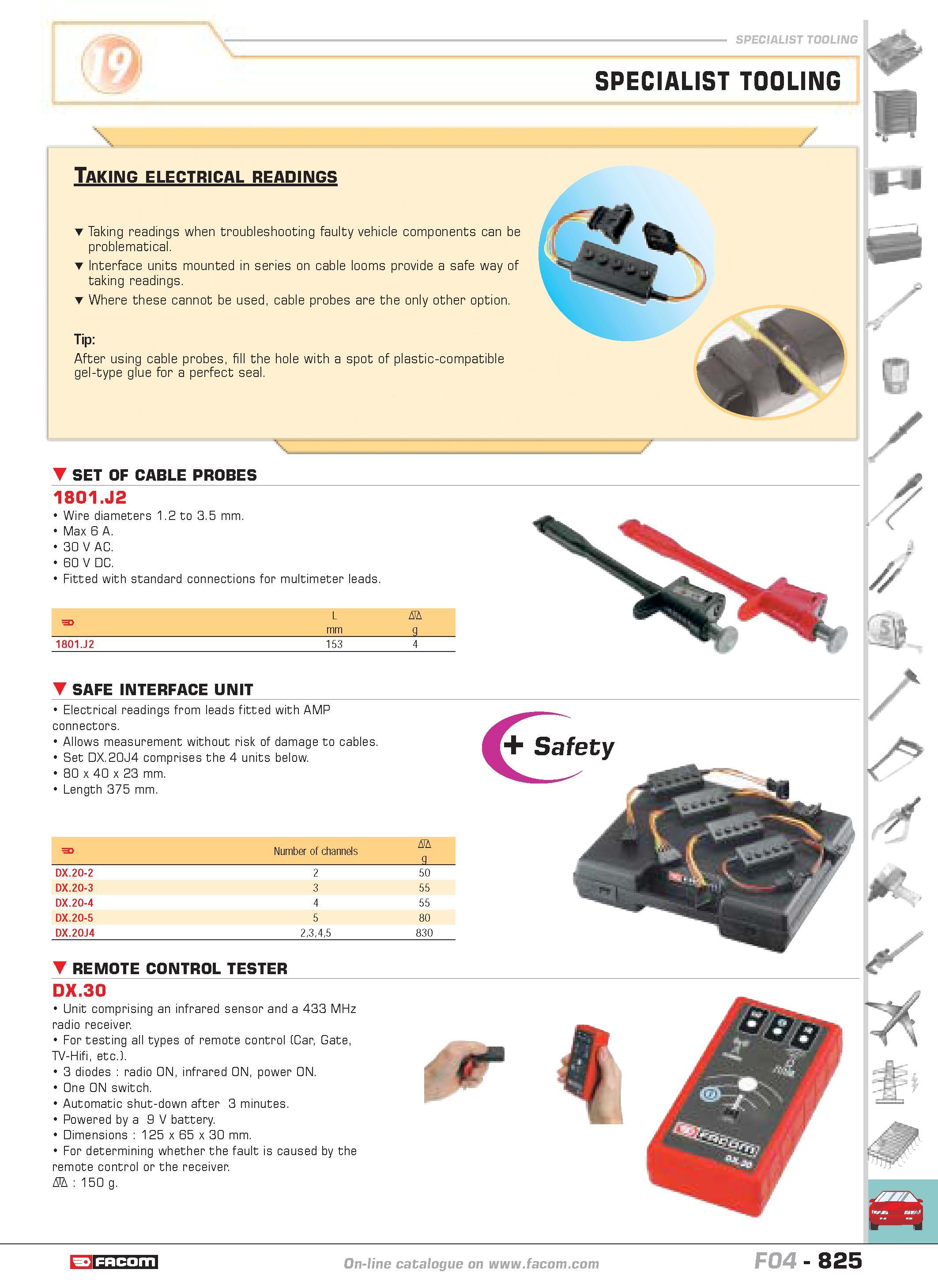

SPECIALIST TOOLING SPECIALIST TOOLING Taking electrical readings Taking readings when troubleshooting faulty vehicle components can be problematical. Interface units mounted in series on cable looms provide a safe way of taking readings. Where these cannot be used cable probes are the only other option. Tip After using cable probes fill the hole with a spot of plastic-compatible gel-type glue for a perfect seal. SET OF CABLE PROBES 1801.J2 Wire diameters 1.2 to 3.5 mm. Max 6 A. 30 V AC. 60 V DC. Fitted with standard connections for multimeter leads. F L D mm g 1801.J2 153 4 SAFE INTERFACE UNIT Electrical readings from leads fitted with AMP connectors. Allows measurement without risk of damage to cables. Set DX.20J4 comprises the 4 units below. 80 x 40 x 23 mm. Length 375 mm. F Number of channels D g DX.20-2 2 50 DX.20-3 3 55 DX.20-4 4 55 DX.20-5 5 80 DX.20J4 2345 830 REMOTE CONTROL TESTER DX.30 Unit comprising an infrared sensor and a 433 MHz radio receiver. For testing all types of remote control (Car Gate TV-Hifi etc.). 3 diodes radio ON infrared ON power ON. One ON switch. Automatic shut-down after 3 minutes. Powered by a 9 V battery. Dimensions 125 x 65 x 30 mm. For determining whether the fault is caused by the remote control or the receiver. D 150 g. fc 3ld;W Inl catalogue FACOM F05 825
