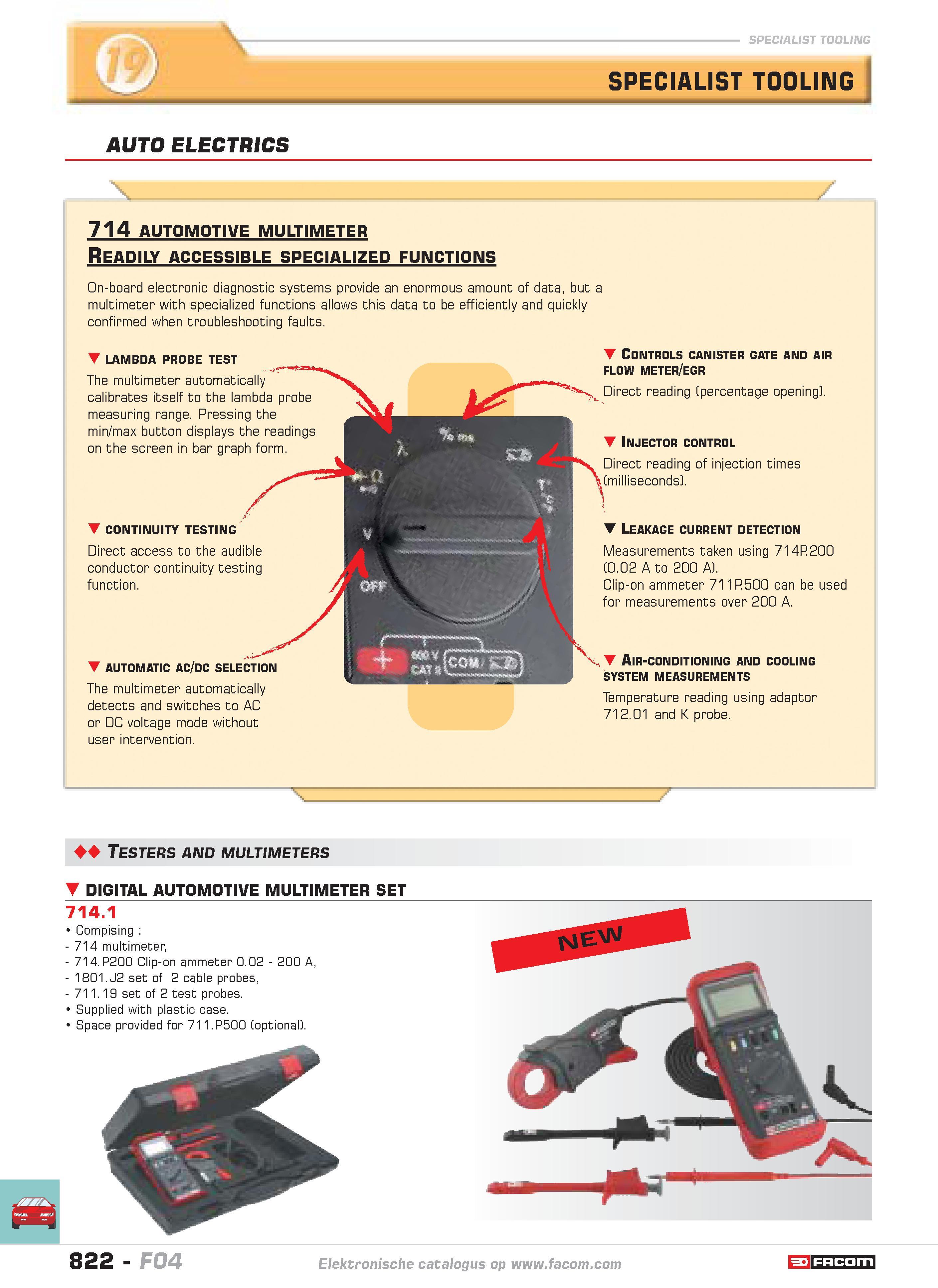

SPECIALIST TOOLING SPECIALIST TOOLING AUTO ELECTRICS 714 AUTOMOTIVE MULTIMETER Readily accessible specialized functions On-board electronic diagnostic systems provide an enormous amount of data but a multimeter with specialized functions allows this data to be efficiently and quickly confirmed when troubleshooting faults. LAMBDA PROBE TEST The multimeter automatically calibrates itself to the lambda probe measuring range. Pressing the min max button displays the readings on the screen in bar graph form. CONTINUITY TESTING Direct access to the audible conductor continuity testing function. AUTOMATIC AC DC SELECTION The multimeter automatically detects and switches to AC or DC voltage mode without user intervention. Controls canister gate and air FLOW METER EGR Direct reading percentage opening Injector control Direct reading of injection times milliseconds Leakage current detection Measurements taken using 714R200 0.02 A to 200 A Clip-on ammeter 711R500 can be used for measurements over 200 A. Air-conditioning and cooling SYSTEM MEASUREMENTS Temperature reading using adaptor 712.01 and K probe. w 44 Testers and multimeters DIGITAL AUTOMOTIVE MULTIMETER SET 714.1 Compising 714 multimeter 714.P200 Clip-on ammeter 0.02 200 A 1801.J2 set of 2 cable probes 711.19 set of 2 test probes. Supplied with plastic case. Space provided for 711.P500 (optional). 822 F04 Elektronische catalogus op FACOM
