817 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.820

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 820 0817 ENG Lab2u

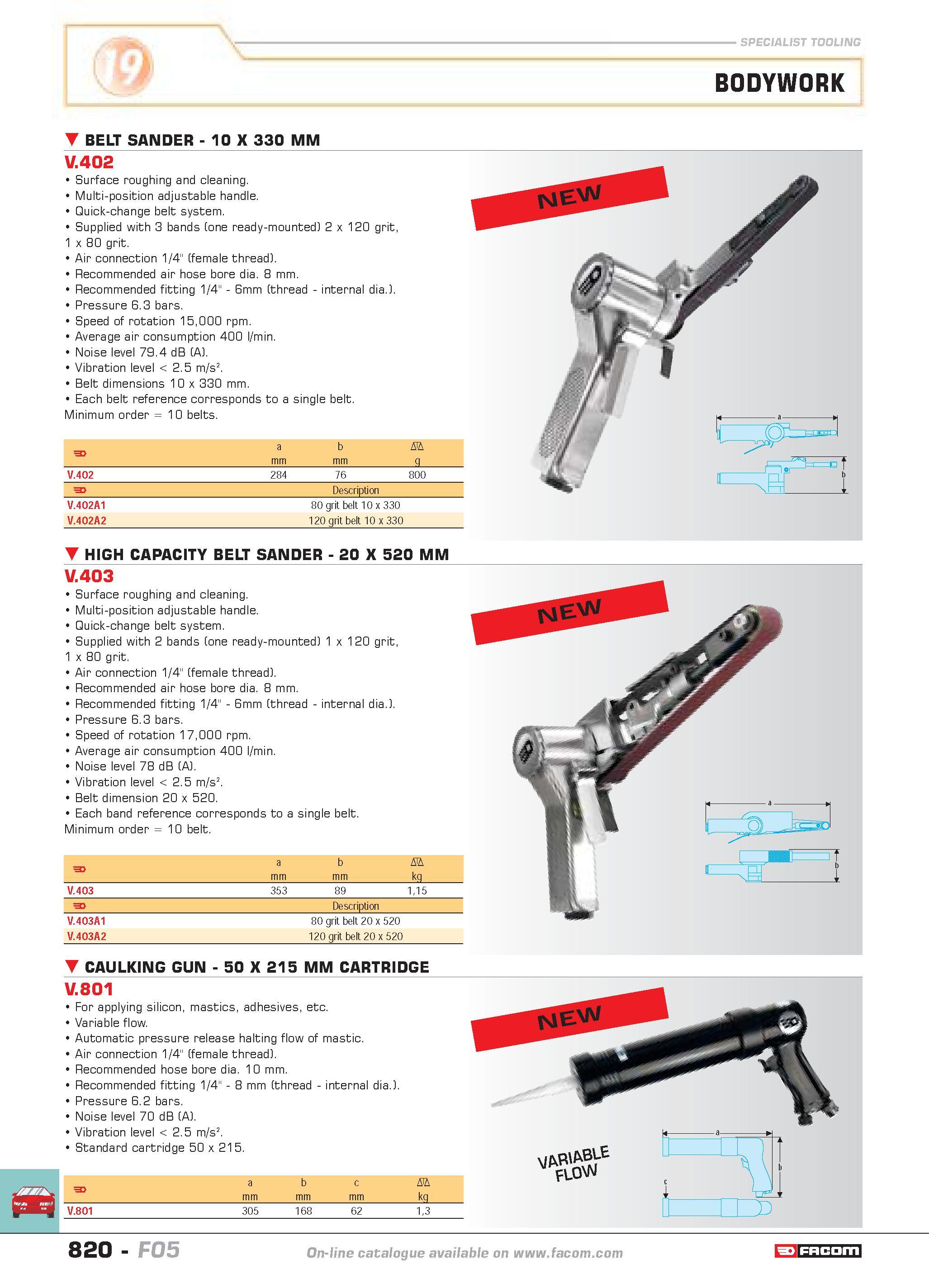

specialist tooling BODYWORK BELT SANDER 10 X 330 MM V.402 Surface roughing and cleaning. Multi-position adjustable handle. Quick-change belt system. Supplied with 3 bands (one ready-mounted) 2 x 120 grit x 80 grit. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.). Pressure 6.3 bars. Speed of rotation 15000 rpm. Average air consumption 400 l min. Noise level 79.4 dB (A). Vibration level 2.5 m s2. Belt dimensions 10 x 330 mm. Each belt reference corresponds to a single belt. Minimum order 10 belts. F a b mm D g V.402 284 76 800 F Description V.402A1 80 grit belt 10 x 330 V.402A2 120 grit belt 10 x 330 HIGH CAPACITY BELT SANDER 20 X 520 MM V.403 Surface roughing and cleaning. Multi-position adjustable handle. Quick-change belt system. Supplied with 2 bands (one ready-mounted) 1 x 120 grit x 80 grit. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.). Pressure 6.3 bars. Speed of rotation 17000 rpm. Average air consumption 400 l min. Noise level 78 dB (A). Vibration level 2.5 m s2. Belt dimension 20 x 520. Each band reference corresponds to a single belt. Minimum order 10 belt. F a b D mm kg V.403 353 89 115 F Description V.403A1 80 grit belt 20 x 520 V.403A2 120 grit belt 20 x 520 CAULKING GUN 50 X 215 MM CARTRIDGE V.801 For applying silicon mastics adhesives etc. Variable flow. Automatic pressure release halting flow of mastic. Air connection 1/4" (female thread). Recommended hose bore dia. 10 mm. Recommended fitting 1/4" 8 mm (thread internal dia.). Pressure 6.2 bars. Noise level 70 dB (A). Vibration level 2.5 m s2. Standard cartridge 50 x 215. a mm b mm c mm D J L 13 F V.801 305 62 820 catalogue FACOM F05
