| Обновлено 2020-05-02 15:19:32 |
|
Слесарно-монтажный ручной инструмент / Hand tools FACOM | Каталог FACOM 2005 Профессиональный ручной инструмент (Всего 899 стр.) |
|||||
814 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.817 |
|||||

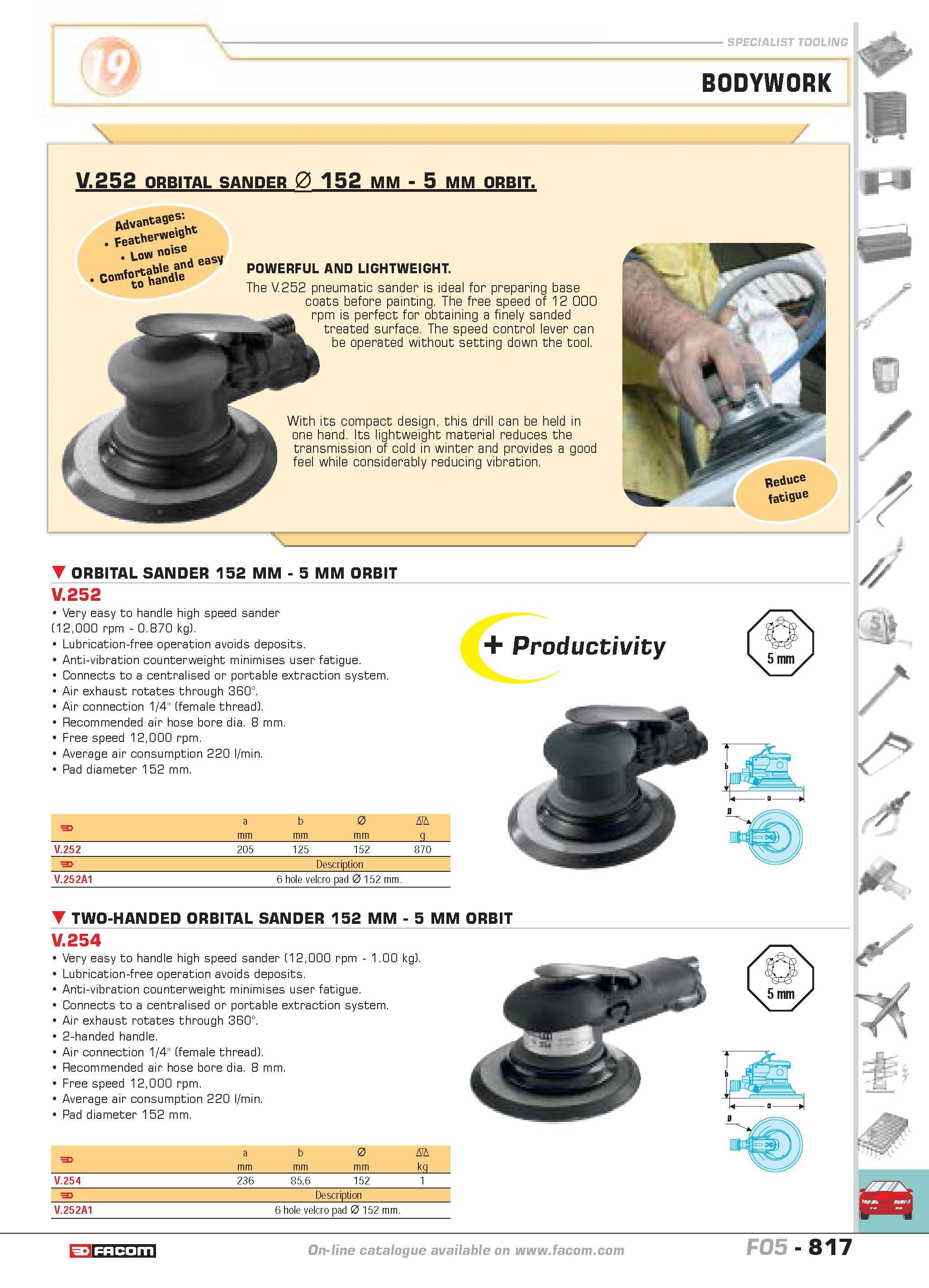

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 817 0814 ENG Lab2u specialist tooling BODYWORK X V.252 ORBITAL SANDER 0 152 MM 5 MM ORBIT. pjuanta9eS'f feathe'-'"6'9 loin nose SM Comortab'edle POWERFUL AND LIGHTWEIGHT. t0 The V252 pneumatic sander is ideal for preparing base coats before painting. The free speed of 12 000 rpm is perfect for obtaining a finely sanded treated surface. The speed control lever can be operated without setting down the tool. With its compact design this drill can be held in one hand. Its lightweight material reduces the transmission of cold in winter and provides a good feel while considerably reducing vibration. x IT & P H J ORBITAL SANDER 152 MM 5 MM ORBIT V.252 Very easy to handle high speed sander (12000 rpm 0.870 kg). Lubrication-free operation avoids deposits. Anti-vibration counterweight minimises user fatigue. Connects to a centralised or portable extraction system. Air exhaust rotates through 360. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Free speed 12000 rpm. Average air consumption 220 l min. Pad diameter 152 mm. Productivity F a b 0 mm D g V.252 205 125 152 870 F Description V.252A1 6 hole velcro pad 0 152 mm. TWO-HANDED ORBITAL SANDER 152 MM 5 MM ORBIT V.254 Very easy to handle high speed sander (12000 rpm 1.00 kg). Lubrication-free operation avoids deposits. Anti-vibration counterweight minimises user fatigue. Connects to a centralised or portable extraction system. Air exhaust rotates through 360. 2-handed handle. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Free speed 12000 rpm. Average air consumption 220 l min. Pad diameter 152 mm. F a b 0 mm D kg V.254 236 856 152 1 F Description V.252A1 6 hole velcro pad 0 152 mm. E3EHEEI catalogue FACOM F05- 817 |
|||||
