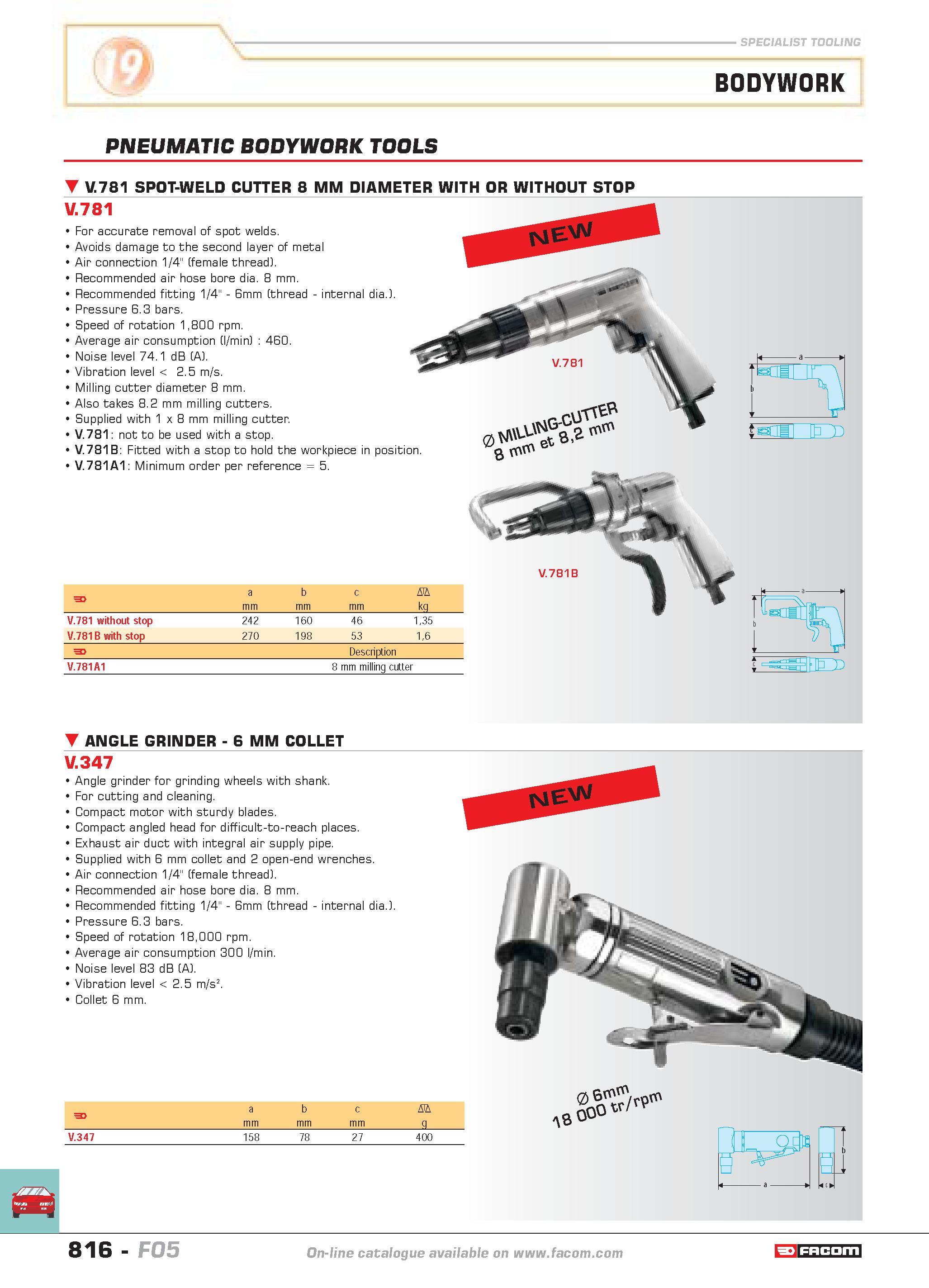

SPECIALIST TOOLING BODYWORK PNEUMATIC BODYWORK TOOLS V.781 SPOT-WELD CUTTER 8 MM DIAMETER WITH OR WITHOUT STOP V.781 For accurate removal of spot welds. Avoids damage to the second layer of metal Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.) Pressure 6.3 bars. Speed of rotation 1800 rpm. Average air consumption (l min) 460. Noise level 74.1 dB (A). Vibration level 2.5 m s. Milling cutter diameter 8 mm. Also takes 8.2 mm milling cutters. Supplied with 1x8 mm milling cutter. V.781 not to be used with a stop. V.781 B Fitted with a stop to hold the workpiece in position. V.781 A1 Minimum order per reference 5. F a mm b mm c Aft mm kq V.781 without stop 242 160 46 135 V.781B with stop 270 198 53 16 F Description V.781A1 8 mm milling cutter i ANGLE GRINDER 6 MM COLLET V.347 Angle grinder for grinding wheels with shank. For cutting and cleaning. Compact motor with sturdy blades. Compact angled head for difficult-to-reach places. Exhaust air duct with integral air supply pipe. Supplied with 6 mm collet and 2 open-end wrenches. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.) Pressure 6.3 bars. Speed of rotation 18000 rpm. Average air consumption 300 l min. Noise level 83 dB (A). Vibration level 2.5 m s2. Collet 6 mm. F a b c D mm g V.347 158 78 27 400 816 catalogue FACOM F05
