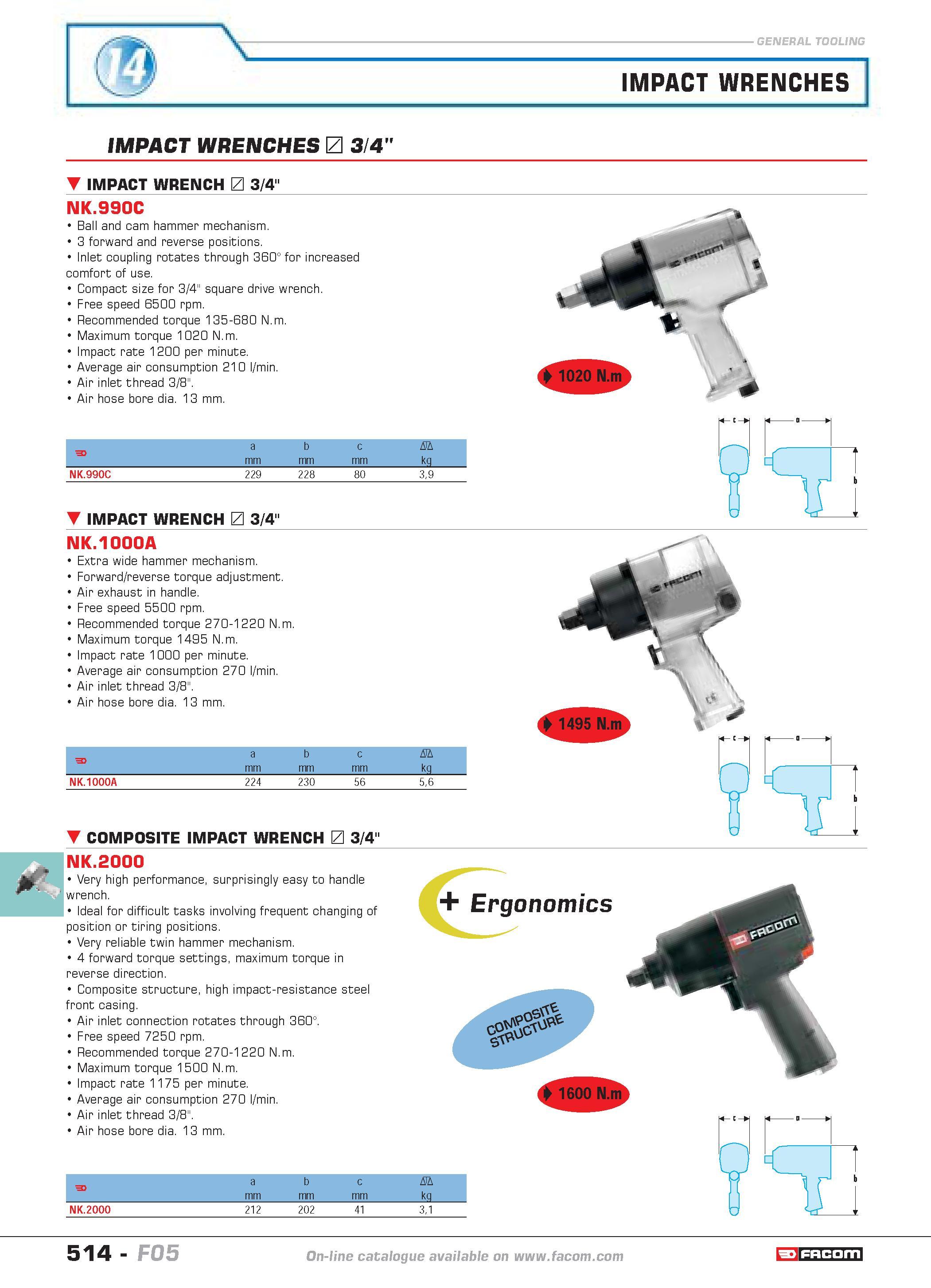

IMPACT WRENCHES IMPACT WRENCHES 3 4' IMPACT WRENCH 3/4" NK.990C Ball and cam hammer mechanism. 3 forward and reverse positions. Inlet coupling rotates through 360 for increased comfort of use. Compact size for 3/4" square drive wrench. Free speed 6500 rpm. Recommended torque 135-680 N.m. Maximum torque 1020 N.m. Impact rate 1200 per minute. Average air consumption 210 l min. Air inlet thread 3 8". Air hose bore dia. 13 mm. A s' F a b c D mm kg NK.990C 229 228 80 39 IMPACT WRENCH 3/4" NK.1000A Extra wide hammer mechanism. Forward reverse torque adjustment. Air exhaust in handle. Free speed 5500 rpm. Recommended torque 270-1220 N.m. Maximum torque 1495 N.m. Impact rate 1000 per minute. Average air consumption 270 l min. Air inlet thread 3 8". Air hose bore dia. 13 mm. F a b c D mm kg NK.1000A 224 230 56 56 CoMPoSITE IMPACT WRENCH 3/4" NK.2000 Very high performance surprisingly easy to handle wrench. Ideal for difficult tasks involving frequent changing of position or tiring positions. Very reliable twin hammer mechanism. 4 forward torque settings maximum torque in reverse direction. Composite structure high impact-resistance steel front casing. Air inlet connection rotates through 360. Free speed 7250 rpm. Recommended torque 270-1220 N.m. Maximum torque 1500 N.m. Impact rate 1175 per minute. Average air consumption 270 l min. Air inlet thread 3 8". Air hose bore dia. 13 mm. Ergonomics a b c D mm kg 212 202 41 514 catalogue FACOM F05
