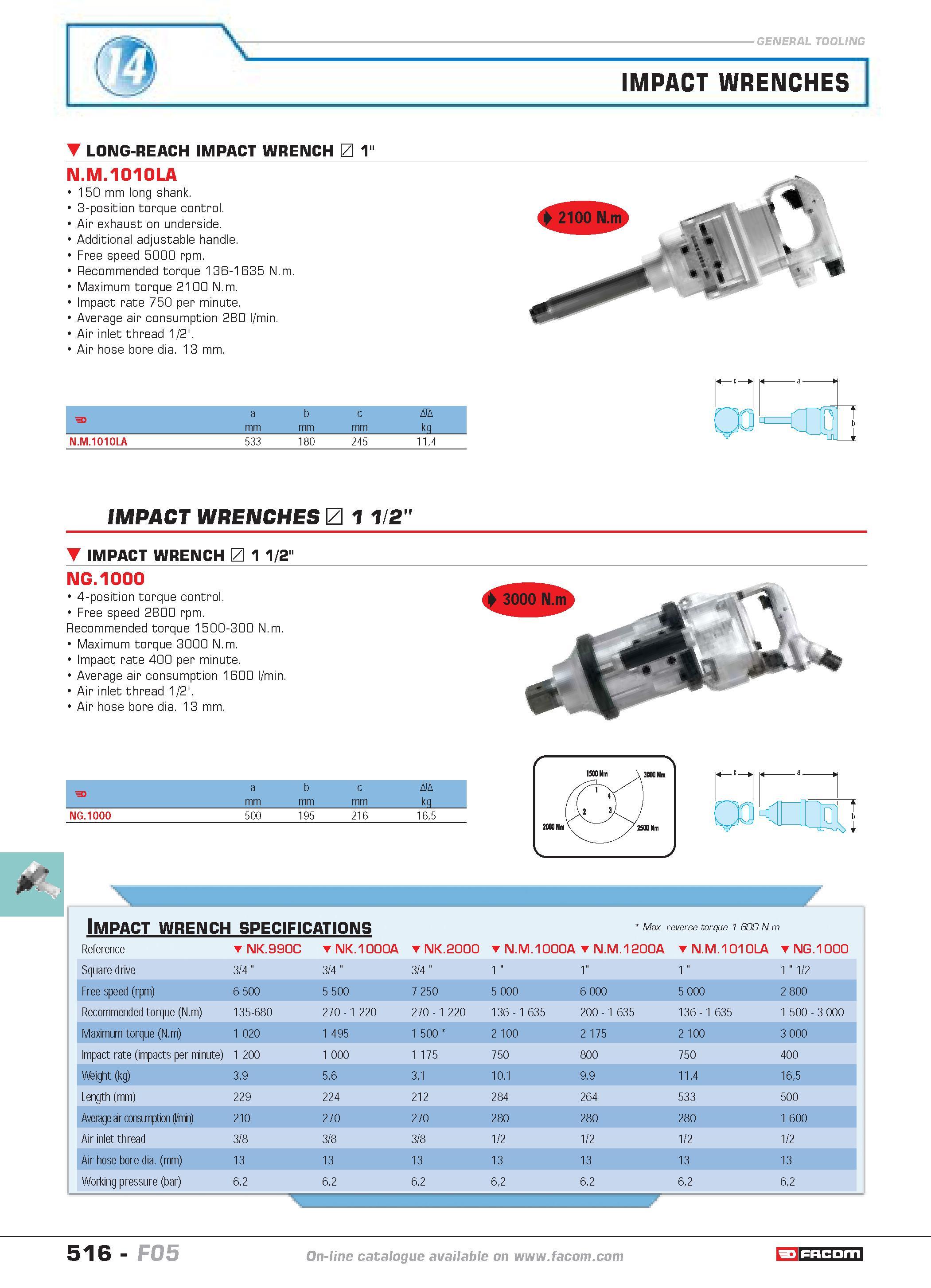

IMPACT WRENCHES LONG-REACH IMPACT WRENCH 1" N.M.1010LA 150 mm long shank. 3-position torque control. Air exhaust on underside. Additional adjustable handle. Free speed 5000 rpm. Recommended torque 136-1635 N.m. Maximum torque 2100 N.m. Impact rate 750 per minute. Average air consumption 280 l min. Air inlet thread 1 2" Air hose bore dia. 13 mm. F a b c D mm kg N.M.1010LA 533 180 245 114 IMPACT WRENCHES 1 1/2" IMPACT WRENCH 1 1/2" NG.1000 4-position torque control. Free speed 2800 rpm. Recommended torque 1500-300 N.m. Maximum torque 3000 N.m. Impact rate 400 per minute. Average air consumption 1600 l min. Air inlet thread 1 2". Air hose bore dia. 13 mm. t 3000 N.m r F a b c D mm kg NG.1000 500 195 216 165 V Impact wrench specifications Max. reverse torque 1 600 N.m Reference NK.990C NK.1000A NK.2000 N.M.1000A N.M.1200A N.M.1010LA NG.1000 Square drive 3 4 3 4 3 4 1 1" 1 1 1 2 Free speed (rpm) 6 500 5 500 7 250 5 000 6 000 5 000 2 800 Recommended torque (N.m) 135-680 270 1 220 270 1 220 136 1 635 200 1 635 136 1 635 1 500 3 000 Maximum torque (N.m) 1 020 1 495 1 500 2 100 2 175 2 100 3 000 Impact rate (impacts per minute) 1 200 1 000 1 175 750 800 750 400 Weight (kg) 39 56 31 101 99 114 165 Length (mm) 229 224 212 284 264 533 500 Average air consumption (l mh) 210 270 270 280 280 280 1 600 Air inlet thread 3 8 3 8 3 8 1 2 1 2 1 2 1 2 Air hose bore dia. (mm) 13 13 13 13 13 13 13 Working pressure (bar) 62 62 62 62 62 62 62 516 catalogue FACOM F05
