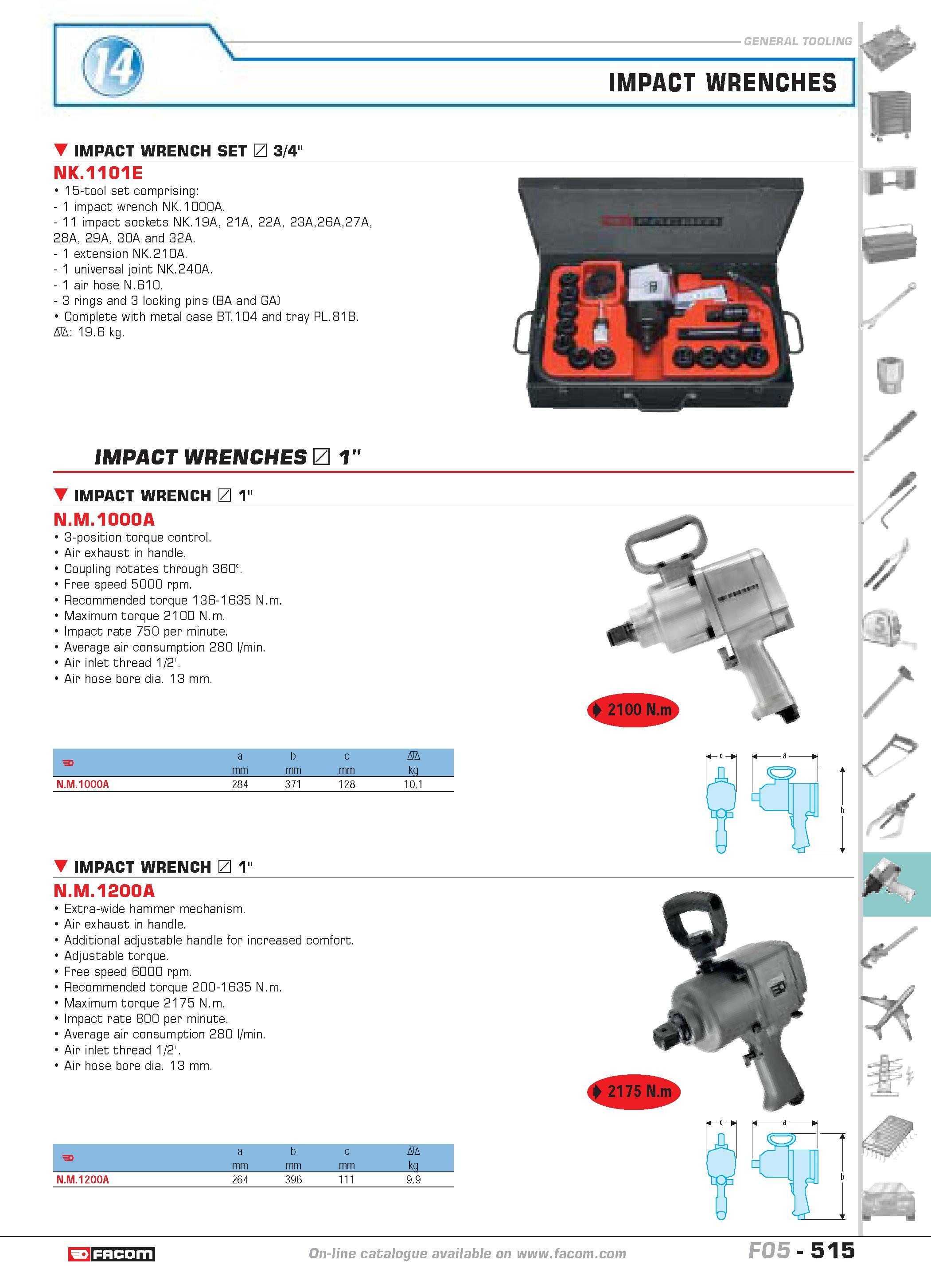

IMPACT WRENCHES IMPACT WRENCH SET 3/4" NK.1101E 15-tool set comprising 1 impact wrench NK.1000A. 11 impact sockets NK.19A 21A 22A 23A26A27A 28A 29A 30A and 32A. 1 extension NK.210A. 1 universal joint NK.240A. 1 air hose N.610. 3 rings and 3 locking pins (BA and GA) Complete with metal case BT104 and tray PL.81B. D 19.6 kg. IMPACT WRENCHES L 1' IMPACT WRENCH L 1" N.M.1000A 3-position torque control. Air exhaust in handle. Coupling rotates through 360. Free speed 5000 rpm. Recommended torque 136-1635 N.m. Maximum torque 2100 N.m. Impact rate 750 per minute. Average air consumption 280 l min. Air inlet thread 1 2". Air hose bore dia. 13 mm. F a b c D mm kq N.M.1000A 284 371 128 101 IMPACT WRENCH L 1" N.M.1200A Extra-wide hammer mechanism. Air exhaust in handle. Additional adjustable handle for increased comfort. Adjustable torque. Free speed 6000 rpm. Recommended torque 200-1635 N.m. Maximum torque 2175 N.m. Impact rate 800 per minute. Average air consumption 280 l min. Air inlet thread 1 2". Air hose bore dia. 13 mm. F a b c D mm kq N.M.1200A 264 396 111 99 t 2175 N.m catalogue FACOM F05- 515
