509 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.512

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 512 0509 ENG Lab2u

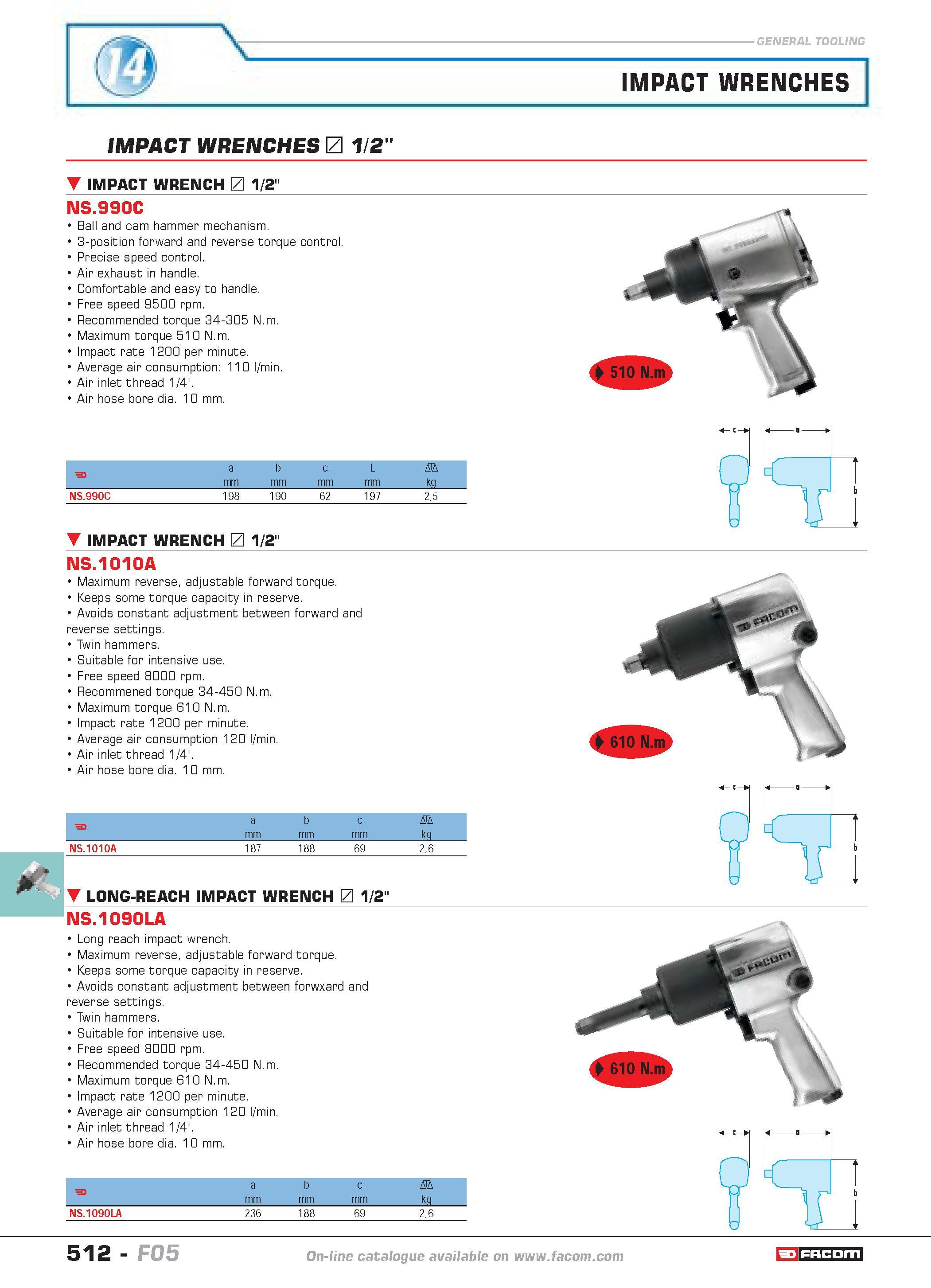

IMPACT WRENCHES IMPACT WRENCHES 1/2" IMPACT WRENCH 1/2" NS.990C Ball and cam hammer mechanism. 3-position forward and reverse torque control. Precise speed control. Air exhaust in handle. Comfortable and easy to handle. Free speed 9500 rpm. Recommended torque 34-305 N.m. Maximum torque 510 N.m. Impact rate 1200 per minute. Average air consumption 110 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. F a b c L D mm kq NS.990C 198 190 62 197 25 IMPACT WRENCH 1/2" NS.1010A Maximum reverse adjustable forward torque. Keeps some torque capacity in reserve. Avoids constant adjustment between forward and reverse settings. Twin hammers. Suitable for intensive use. Free speed 8000 rpm. Recommened torque 34-450 N.m. Maximum torque 610 N.m. Impact rate 1200 per minute. Average air consumption 120 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. F a b c D mm kq NS.1010A 187 188 69 26 LONG-REACH IMPACT WRENCH 1/2" NS.1090LA Long reach impact wrench. Maximum reverse adjustable forward torque. Keeps some torque capacity in reserve. Avoids constant adjustment between forwxard and reverse settings. Twin hammers. Suitable for intensive use. Free speed 8000 rpm. Recommended torque 34-450 N.m. Maximum torque 610 N.m. Impact rate 1200 per minute. Average air consumption 120 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. j F a b c D mm kq NS.1090LA 236 188 69 26 512 catalogue FACOM F05
