508 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.511

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 511 0508 ENG Lab2u

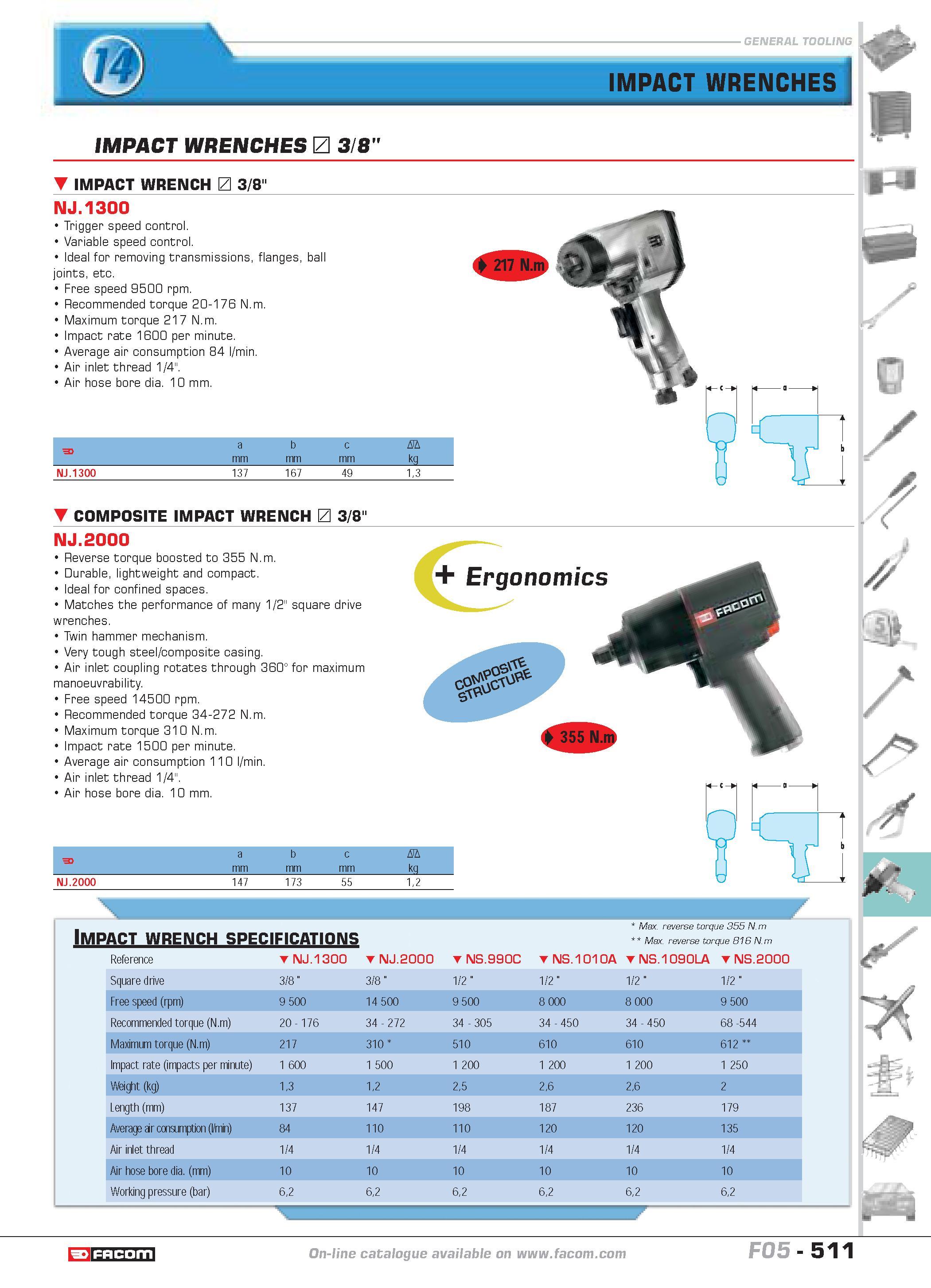

IMPACT WRENCHES IMPACT WRENCHES 3/8" IMPACT WRENCH 3/8" NJ.1300 Trigger speed control. Variable speed control. Ideal for removing transmissions flanges ball joints etc. Free speed 9500 rpm. Recommended torque 20-176 N.m. Maximum torque 217 N.m. Impact rate 1600 per minute. Average air consumption 84 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. F a b c D mm kg NJ.1300 137 167 49 13 COMPOSITE IMPACT WRENCH 3/8" NJ.2000 Reverse torque boosted to 355 N.m. Durable lightweight and compact. Ideal for confined spaces. Matches the performance of many 1/2" square drive wrenches. Twin hammer mechanism. Very tough steel composite casing. Air inlet coupling rotates through 360 for maximum manoeuvrability. Free speed 14500 rpm. Recommended torque 34-272 N.m. Maximum torque 310 N.m. Impact rate 1500 per minute. Average air consumption 110 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. Ergonomics t 355 N.m F a b c D mm kg NJ.2000 147 173 55 12 Impact wrench specifications Max. reverse torque 355 N.m Max. reverse torque 816 N.m Reference NJ.1300 NJ.2000 NS.990C NS.1010A NS.1090LA NS.2000 Square drive 3 8 3 8 1 2 1 2 1 2 1 2 Free speed (rpm) 9 500 14 500 9 500 8 000 8 000 9 500 Recommended torque (N.m) 20 176 34 272 34 305 34 450 34 450 68 -544 Maximum torque (N.m) 217 310 510 610 610 612 Impact rate (impacts per minute) 1 600 1 500 1 200 1 200 1 200 1 250 Weight (kg) 13 12 25 26 26 2 Length (mm) 137 147 198 187 236 179 Average air consumption (l min) 84 110 110 120 120 135 Air inlet thread 1 4 1 4 1 4 1 4 1 4 1 4 Air hose bore dia. (mm) 10 10 10 10 10 10 Working pressure (bar) 62 62 62 62 62 62 catalogue FACOM F05- 511
