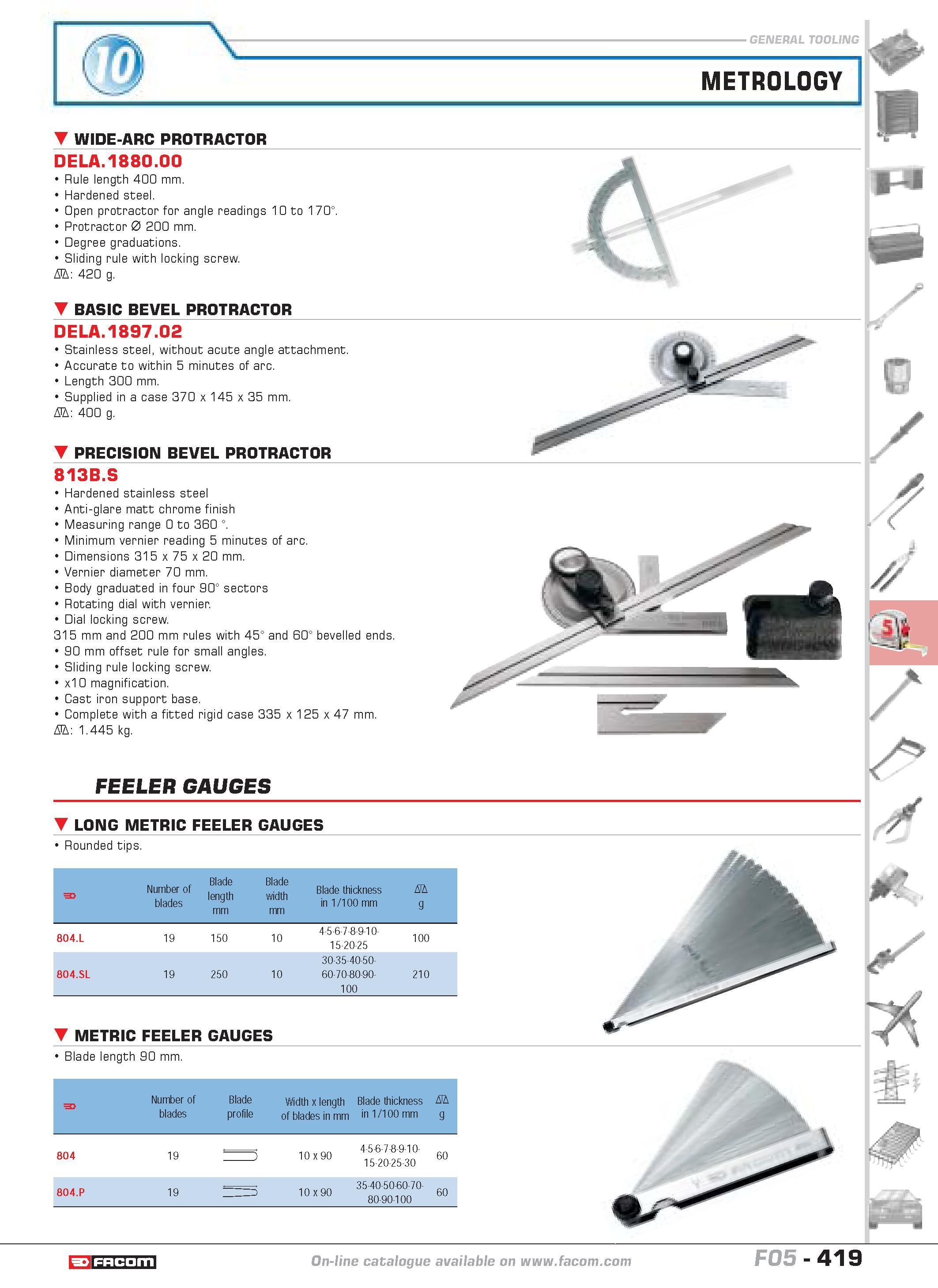

WIDE-ARC PROTRACTOR DELA.1880.00 Rule length 400 mm. Hardened steel. Open protractor for angle readings 10 to 170. Protractor 0 200 mm. Degree graduations. Sliding rule with locking screw. D 420 g. BASIC BEVEL PROTRACTOR DELA.1897.02 Stainless steel without acute angle attachment. Accurate to within 5 minutes of arc. Length 300 mm. Supplied in a case 370 x 145 x 35 mm. D 400 g. PRECISION BEVEL PROTRACTOR 813B.S Hardened stainless steel Anti-glare matt chrome finish Measuring range 0 to 360 Minimum vernier reading 5 minutes of arc. Dimensions 315 x 75 x 20 mm. Vernier diameter 70 mm. Body graduated in four 90 sectors Rotating dial with vernier. Dial locking screw. 315 mm and 200 mm rules with 45 and 60 bevelled ends. 90 mm offset rule for small angles. Sliding rule locking screw. x10 magnification. Cast iron support base. Complete with a fitted rigid case 335 x 125 x 47 mm. D 1.445 kg. FEELER GAUGES LONG METRIC FEELER GAUGES Rounded tips. F Number of blades Blade length mm Blade width mm Blade thickness in 1 100 mm D g 804.L 19 150 10 4-5-6-7-8-9-10- 15-20-25 100 30-35-40-50- 804.SL 19 250 10 60-70-80-90- 100 210 METRIC FEELER GAUGES Blade length 90 mm. F Number of Blade Width x length Blade thickness D blades profile of blades in mm in 1 100 mm g 804 19 b 10 x 90 4-5-6-7-8-9-10- 15-20-25-30 60 804.P 19 B 10 x 90 35-40-50-60-70- 80-90-100 60 catalogue FACOM F05- 419
