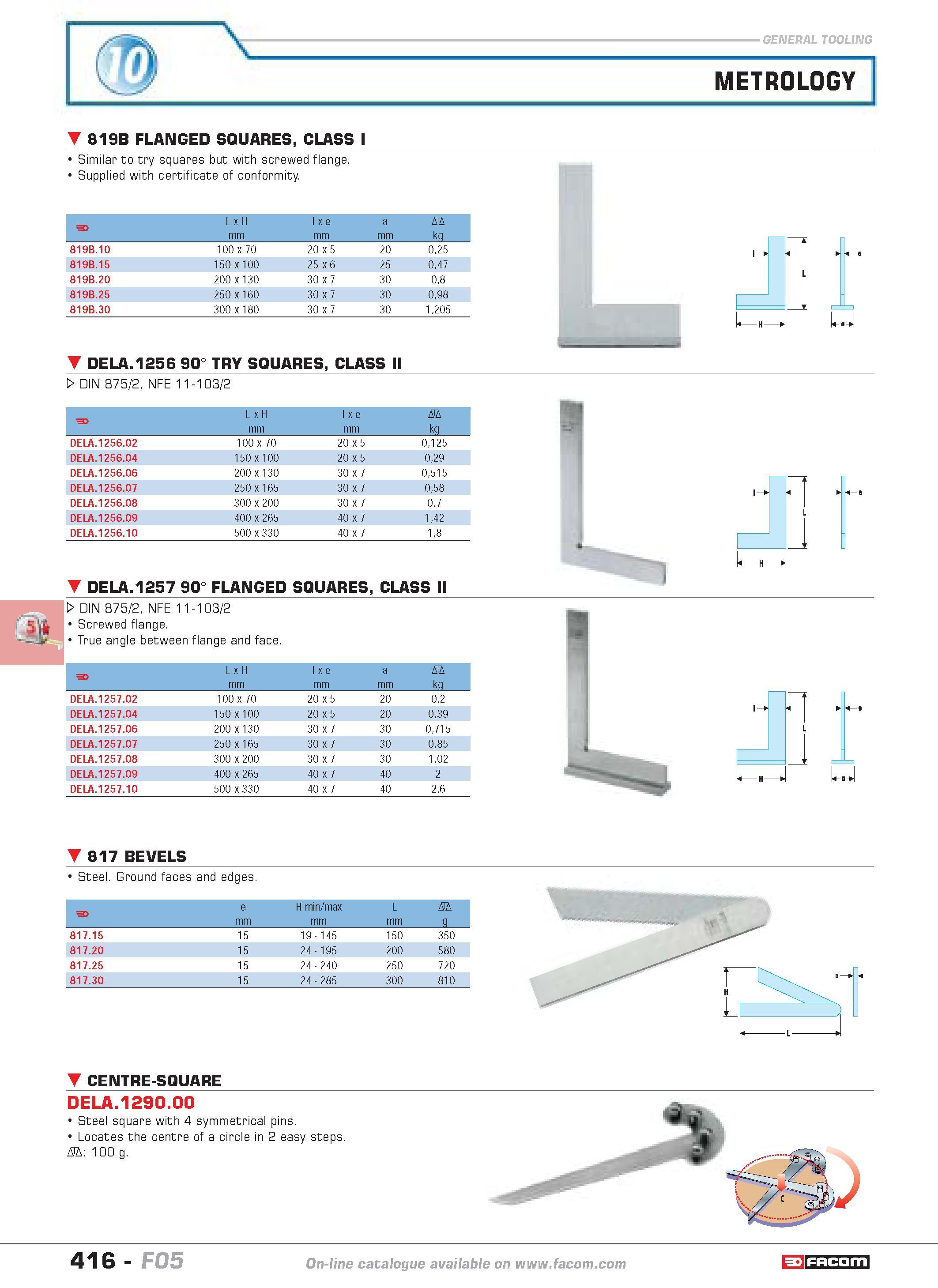

METROLOGY 819B FLANGED SQUARES CLASS I Similar to try squares but with screwed flange. Supplied with certificate of conformity. L x H mm I x e mm a mm 819B.10 100 x 70 20 x 5 20 025 819B.15 150 x 100 25 x 6 25 047 819B.20 200 x 130 30 x 7 30 08 819B.25 250 x 160 30 x 7 30 098 819B.30 300 x 180 30 x 7 30 1205 0 9 (0 in w 3 E D TRY SQUARES CLASS II W DIN 875 2 NFE 11-103 2 F L x H mm I x e mm D kg DELA.1256.02 100 x 70 20 x 5 0125 DELA.1256.04 150x 100 20 x 5 029 DELA.1256.06 200 x 130 30 x 7 0515 DELA.1256.07 250 x 165 30 x 7 058 DELA.1256.08 300 x 200 30 x 7 07 DELA.1256.09 400 x 265 40 x 7 142 DELA.1256.10 500x330 40 x 7 18 DELA.1257 90 FLANGED SQUARES CLASS II W DIN 875 2 NFE 11-103 2 Screwed flange. True angle between flange and face. F L x H I x e a D mm kg DELA.1257.02 100 x 70 20 x 5 20 02 DELA.1257.04 150 x100 20 x 5 20 039 DELA.1257.06 200 x 130 30 x 7 30 0715 DELA.1257.07 250 x 165 30 x 7 30 085 DELA.1257.08 300 x 200 30 x 7 30 102 DELA.1257.09 400 x 265 40 x 7 40 2 DELA.1257.10 500 x330 40 x 7 40 26 U 817 BEVELS Steel. Ground faces and edges. F e mm H min max mm L mm D g 817.15 15 19 145 150 350 817.20 15 24 195 200 580 817.25 15 24 240 250 720 817.30 15 24 285 300 810 D F CENTRE-SQUARE DELA.1290.00 Steel square with 4 symmetrical pins. Locates the centre of a circle in 2 easy steps. D 100 g. 416 catalogue FACOM F05
