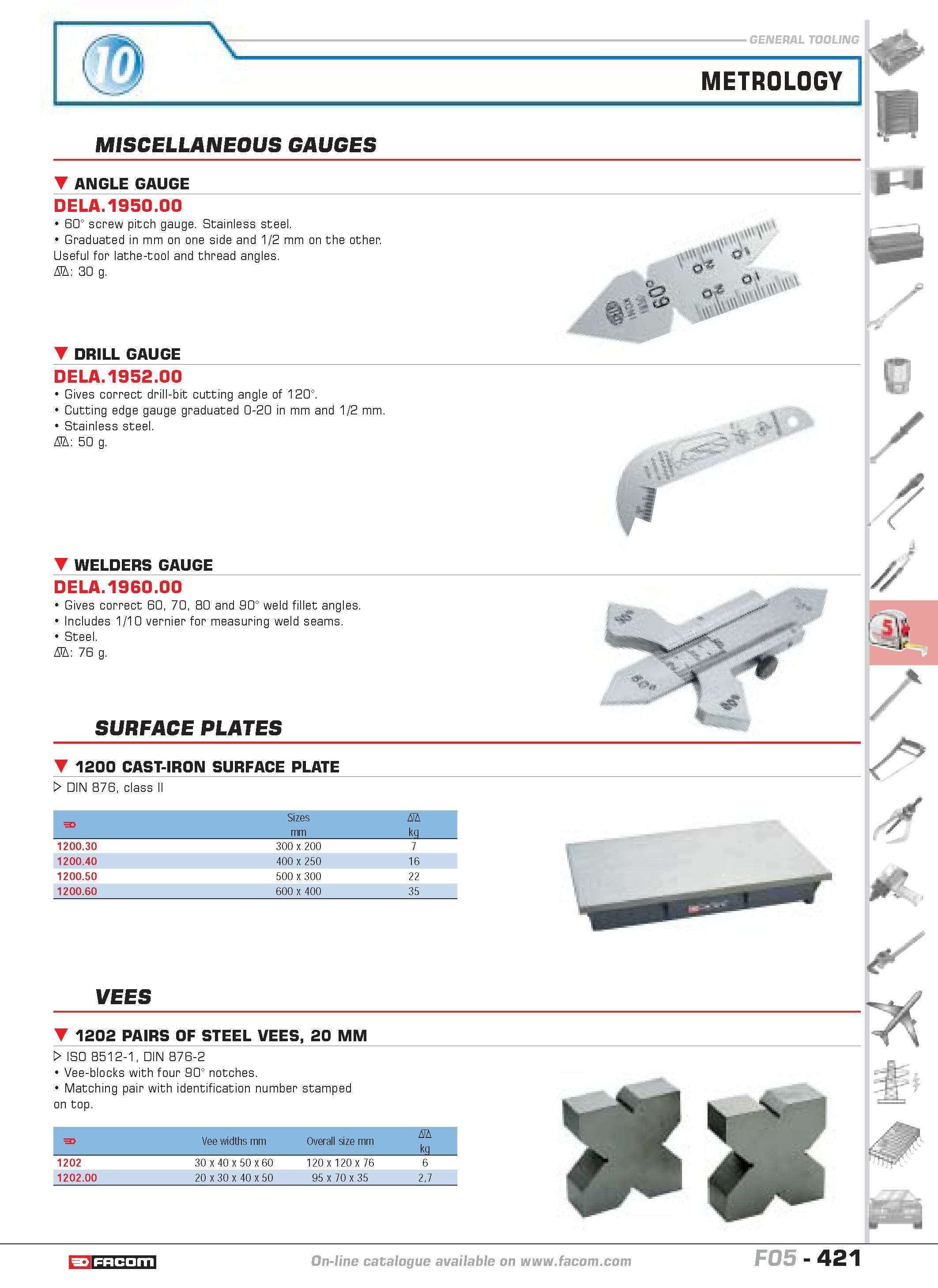

METROLOGY MISCELLANEOUS GAUGES ANGLE GAUGE DELA.1950.00 60 screw pitch gauge. Stainless steel. Graduated in mm on one side and 1 2 mm on the other. Useful for lathe-tool and thread angles. D 30 g. DRILL GAUGE DELA.1952.00 Gives correct drill-bit cutting angle of 120. Cutting edge gauge graduated 0-20 in mm and 1 2 mm. Stainless steel. D 50 g. WELDERS GAUGE DELA.1960.00 Gives correct 60 70 80 and 90 weld fillet angles. Includes 1 10 vernier for measuring weld seams. Steel. D 76 g. SURFACE PLATES 1200 CAST-IRON SURFACE PLATE W DIN 876 class II F Sizes mm D kg 1200.30 300 x 200 7 1200.40 400 x 250 16 1200.50 500 x 300 22 1200.60 600 x 400 35 VEES 1202 PAIRS OF STEEL VEES 20 MM W ISO 8512-1 DIN 876-2 Vee-blocks with four 90 notches. Matching pair with identification number stamped on top. F Vee widths mm Overall size mm kg 1202 30 x 40 x 50 x 60 120 x 120 x 76 6 1202.00 20 x 30 x 40 x 50 95 x 70 x 35 27 catalogue FACOM F05 421
