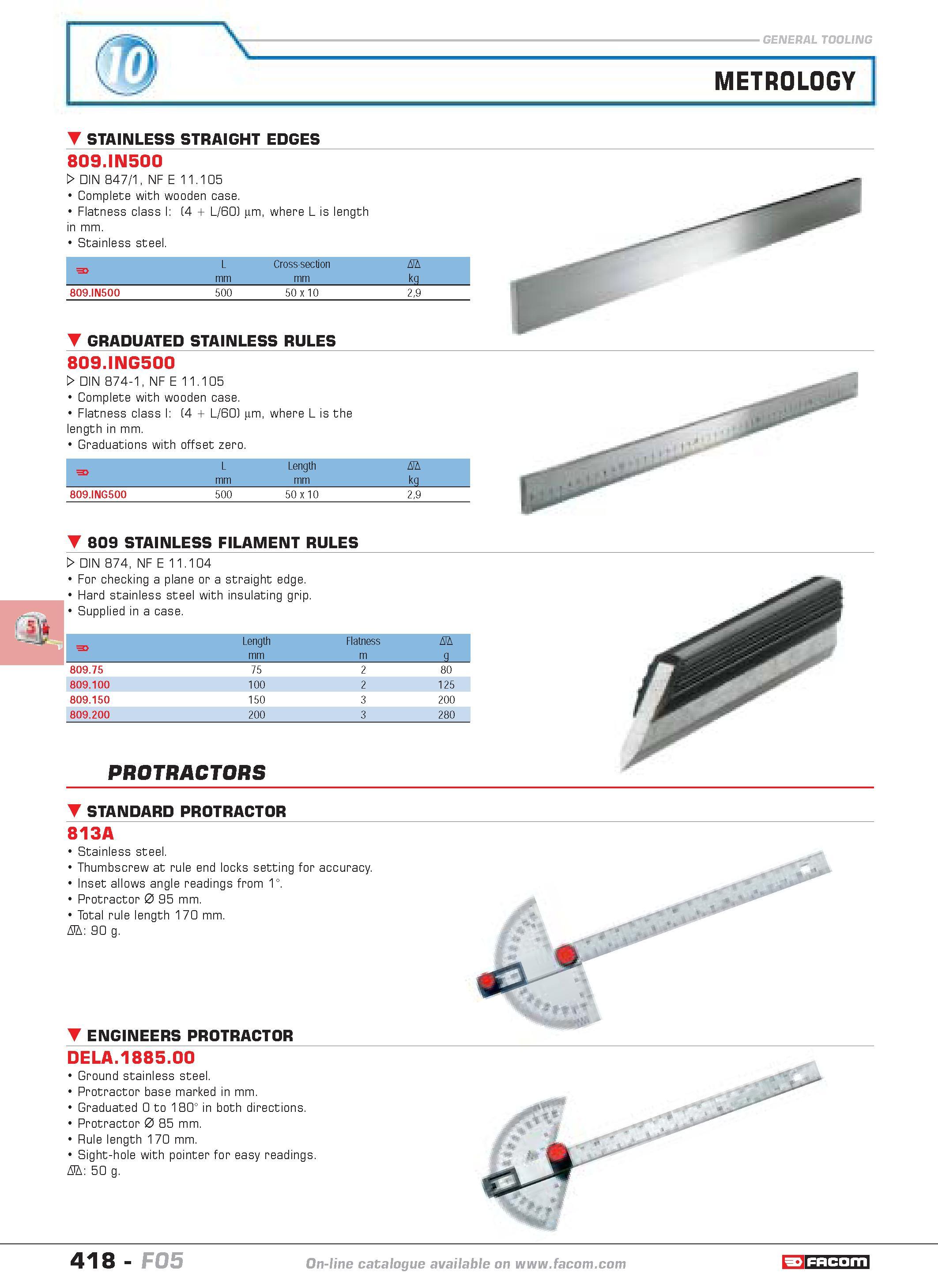

METROLOGY STAINLESS STRAIGHT EDGES 809.IN500 W DIN 847 1 NF E 11.105 Complete with wooden case. Flatness class I (4 L 60) im where L is length in mm. Stainless steel. F L Cross-section D mm kg 809.IN500 500 50 x 10 29 GRADUATED STAINLESS RULES 809.ING500 W DIN 874-1 NF E 11.105 Complete with wooden case. Flatness class I (4 L 60) im where L is the length in mm. Graduations with offset zero. L Length D mm kg 809.ING500 500 50 x 10 29 809 STAINLESS FILAMENT RULES W DIN 874 NF E 11.104 For checking a plane or a straight edge. Hard stainless steel with insulating grip. Supplied in a case. F Length mm Flatness m D g 809.75 75 2 80 809.100 100 2 125 809.150 150 3 200 809.200 200 3 280 PROTRACTORS STANDARD PROTRACTOR 813A Stainless steel. Thumbscrew at rule end locks setting for accuracy. Inset allows angle readings from 1. Protractor 0 95 mm. Total rule length 170 mm. D 90 g. ENGINEERS PROTRACTOR DELA.1885.00 Ground stainless steel. Protractor base marked in mm. Graduated 0 to 180 in both directions. Protractor 0 85 mm. Rule length 170 mm. Sight-hole with pointer for easy readings. D 50 g. 418 catalogue FACOM F05
