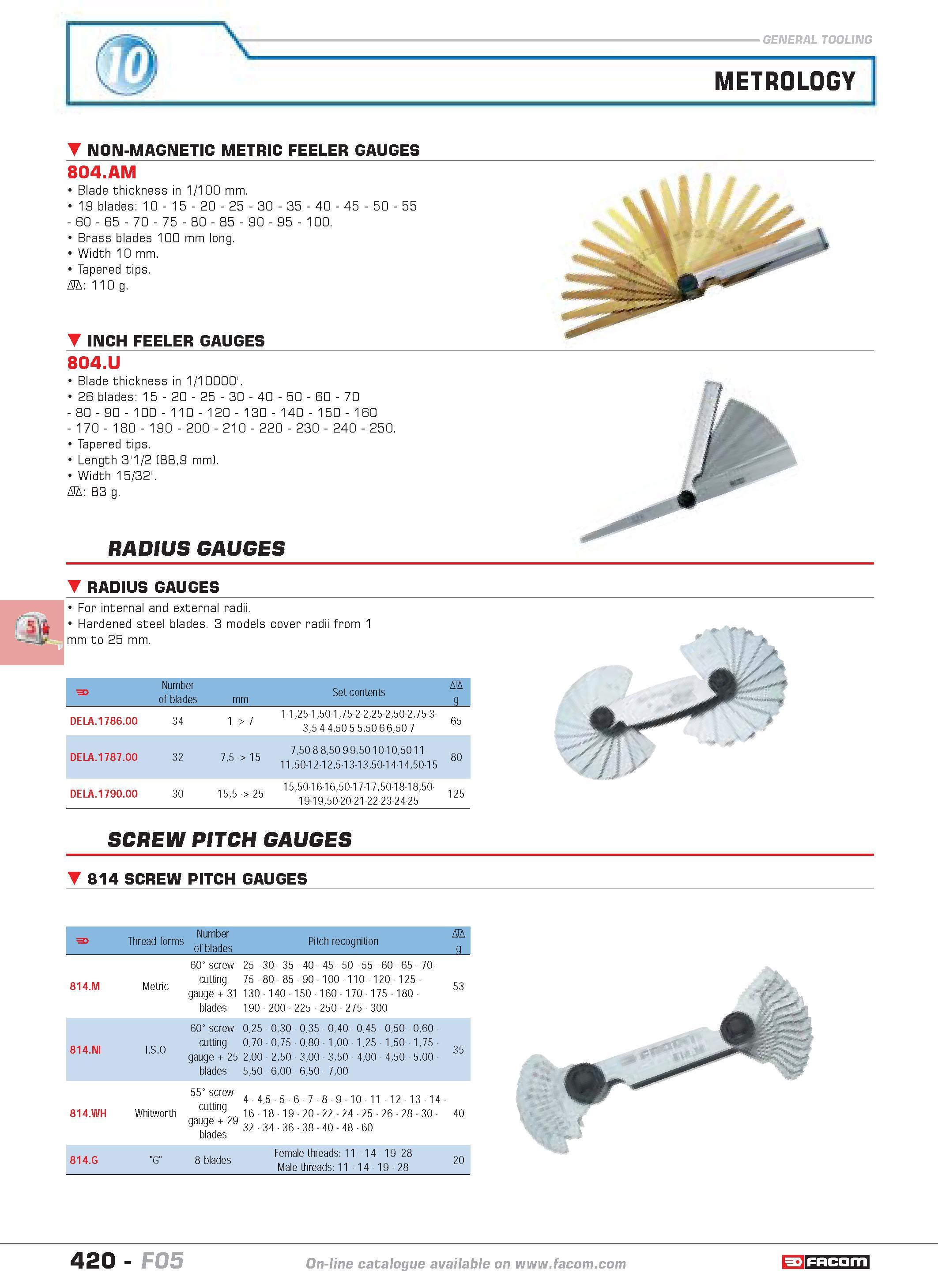

metrology NON-MAGNETIC METRIC FEELER GAUGES 804.AM Blade thickness in 1 100 mm. 19 blades 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100. Brass blades 100 mm long. Width 10 mm. Tapered tips. D 110 g. INCH FEELER GAUGES 804.U Blade thickness in 1 10000". 26 blades 15 20 25 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250. Tapered tips. Length 3"1 2 (889 mm). Width 15 32". D 83 g. RADIUS GAUGES RADIUS GAUGES 3& For internal and external radii. Hardened steel blades. 3 models cover radii from 1 mm to 25 mm. F Number of blades mm Set contents D g DELA.1786.00 34 1 7 1-125-150-175-2-225-250-275-3- 35-4-450-5-550-6-650-7 65 DELA.1787.00 32 75 15 750-8-850-9-950-10-1050-11- 1150-12-125-13-1350-14-1450-15 80 DELA.1790.00 30 155 25 1550-16-1650-17-1750-18-1850- 19-1950-20-21-22-23-24-25 125 SCREW PITCH GAUGES 814 SCREW PITCH GAUGES F Thread forms Number of blades Pitch recognition D g 60 screw- 25 30 35 40 45 50 55 60 65 70 814.M Metric cutting gauge 31 blades 75 80 85 90 100 110 120 125 -130 140 150 160 170 175 180 -190 200 225 250 275 300 53 60 screw- 025 030 035 040 045 050 060 814.NI I.S.O cutting 070 075 080 100 125 150 175 35 gauge 25 200 250 300 350 400 450 500 blades 550 600 650 700 55 screwcutting gauge 29 blades 4 45 5 6 7 8 9 10 11 12 13 14 814.WH Whitworth 16 18 19 20 22 24 25 26 28 30 -32 34 36 38 40 48 60 40 814.G "G" 8 blades Female threads 11 14 19 -28 Male threads 11 14 19 28 20 420 catalogue FACOM F05
