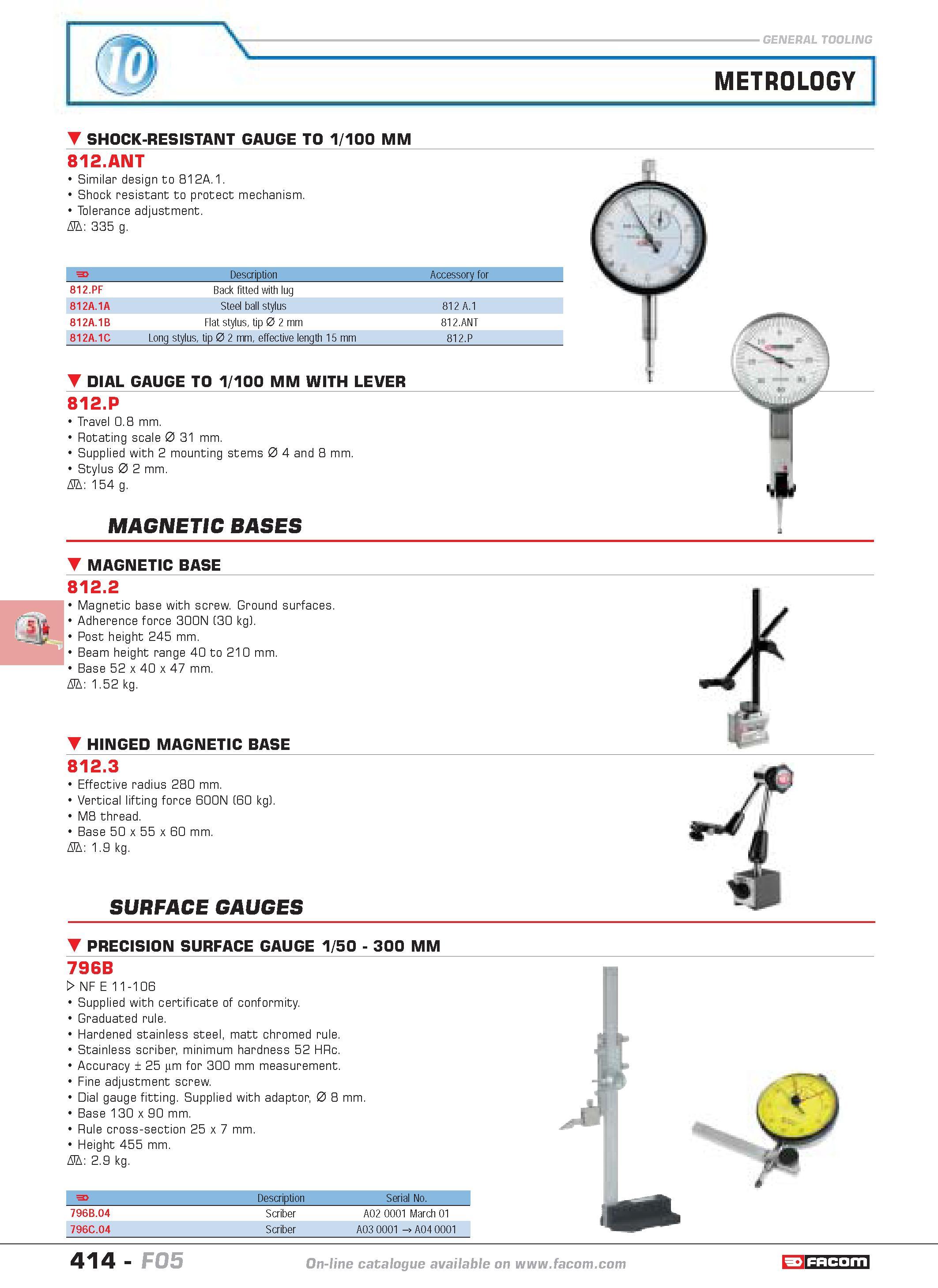

metrology SHOCK-RESISTANT GAUGE TO 1 100 MM 812.ANT Similar design to 812A.1. Shock resistant to protect mechanism. Tolerance adjustment. D 335 g. F Description Accessory for 812.PF Back fitted with lug 812A.1A Steel ball stylus 812 A.1 812A.1B Flat stylus tip 0 2 mm 812.ANT 812A.1C Long stylus tip 0 2 mm effective length 15 mm 812.P DIAL GAUGE TO 1 100 MM WITH LEVER 812.P Travel 0.8 mm. Rotating scale 0 31 mm. Supplied with 2 mounting stems 0 4 and 8 mm. Stylus 0 2 mm. D 154 g. MAGNETIC BASES MAGNETIC BASE 812.2 Magnetic base with screw. Ground surfaces. Adherence force 300N 30 kg). Post height 245 mm. Beam height range 40 to 210 mm. Base 52 x 40 x 47 mm. D 1.52 kg. HINGED MAGNETIC BASE 812.3 Effective radius 280 mm. Vertical lifting force 600N 60 kg). M8 thread. Base 50 x 55 x 60 mm. D 1.9 kg. SURFACE GAUGES PRECISION SURFACE GAUGE 1 50 300 MM 796B W NF E 11-106 Supplied with certificate of conformity. Graduated rule. Hardened stainless steel matt chromed rule. Stainless scriber minimum hardness 52 HRc. Accuracy 25 im for 300 mm measurement. Fine adjustment screw. Dial gauge fitting. Supplied with adaptor 0 8 mm. Base 130 x 90 mm. Rule cross-section 25 x 7 mm. Height 455 mm. D 2.9 kg. 414 catalogue FACOM F05
