410 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.413

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 413 0410 ENG Lab2u

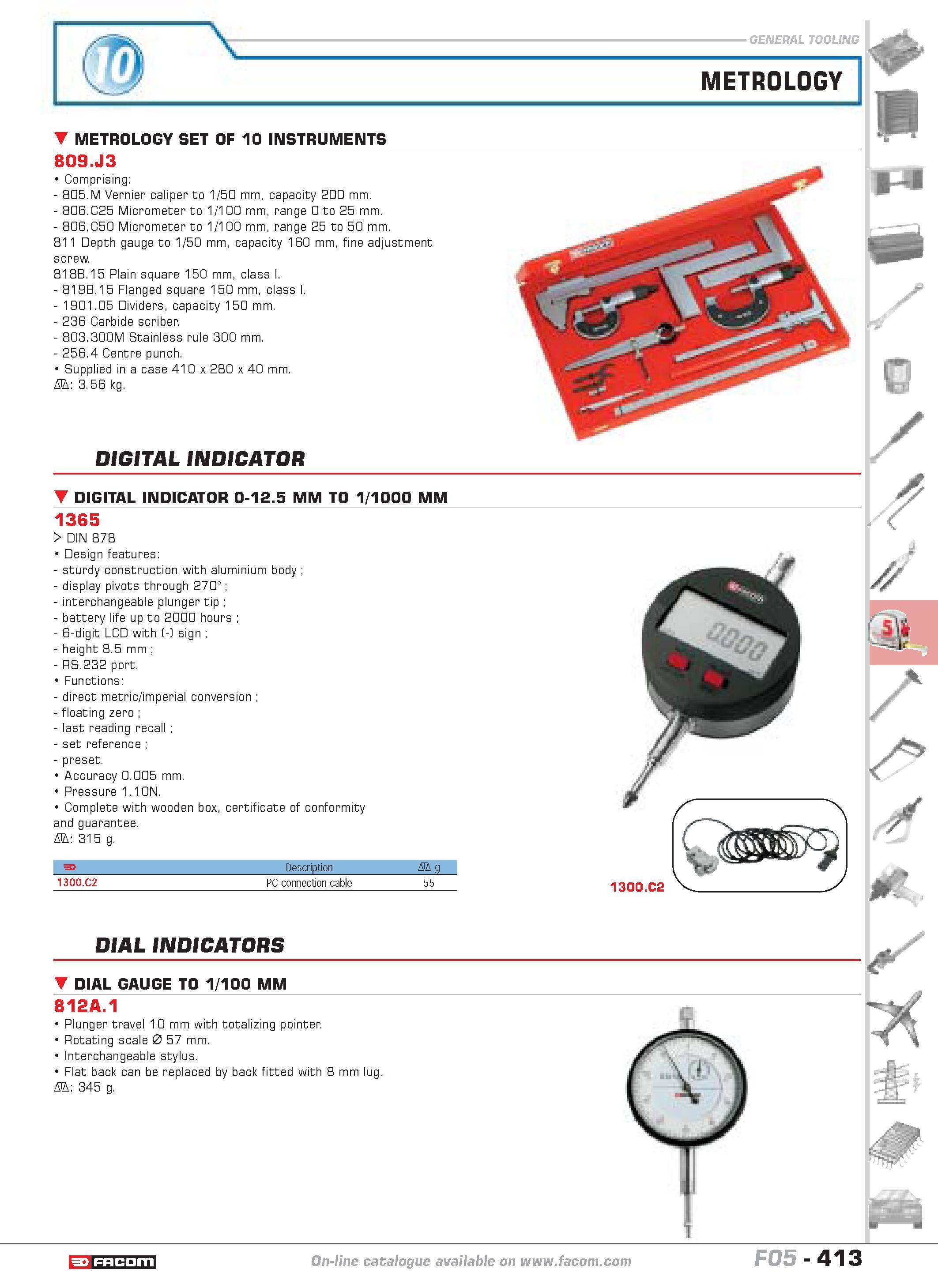

METROLOGY METROLOGY SET OF 10 INSTRUMENTS 809.J3 Comprising 805.M Vernier caliper to 1 50 mm capacity 200 mm. 806.C25 Micrometer to 1 100 mm range 0 to 25 mm. 806.C50 Micrometer to 1 100 mm range 25 to 50 mm. 811 Depth gauge to 1 50 mm capacity 160 mm fine adjustment screw. 818B.15 Plain square 150 mm class I. 819B.15 Flanged square 150 mm class I. 1901.05 Dividers capacity 150 mm. 236 Carbide scriber. 803.300M Stainless rule 300 mm. 256.4 Centre punch. Supplied in a case 410 x 280 x 40 mm. D 3.56 kg. DIGITAL INDICATOR DIGITAL INDICATOR 0-12.5 MM TO 1 1000 MM 1365 W DIN 878 Design features sturdy construction with aluminium body display pivots through 270; interchangeable plunger tip battery life up to 2000 hours 6-digit LCD with (-) sign height 8.5 mm RS.232 port. Functions direct metric imperial conversion floating zero last reading recall set reference preset. Accuracy 0.005 mm. Pressure 1.10N. Complete with wooden box certificate of conformity and guarantee. D 315 g. F Description D g 1300.C2 PC connection cable 55 1300.C2 DIAL INDICATORS DIAL GAUGE TO 1 100 MM 812A.1 Plunger travel 10 mm with totalizing pointer. Rotating scale 0 57 mm. Interchangeable stylus. Flat back can be replaced by back fitted with 8 mm lug. D 345 g. catalogue FACOM F05- 413
