408 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.411

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 411 0408 ENG Lab2u

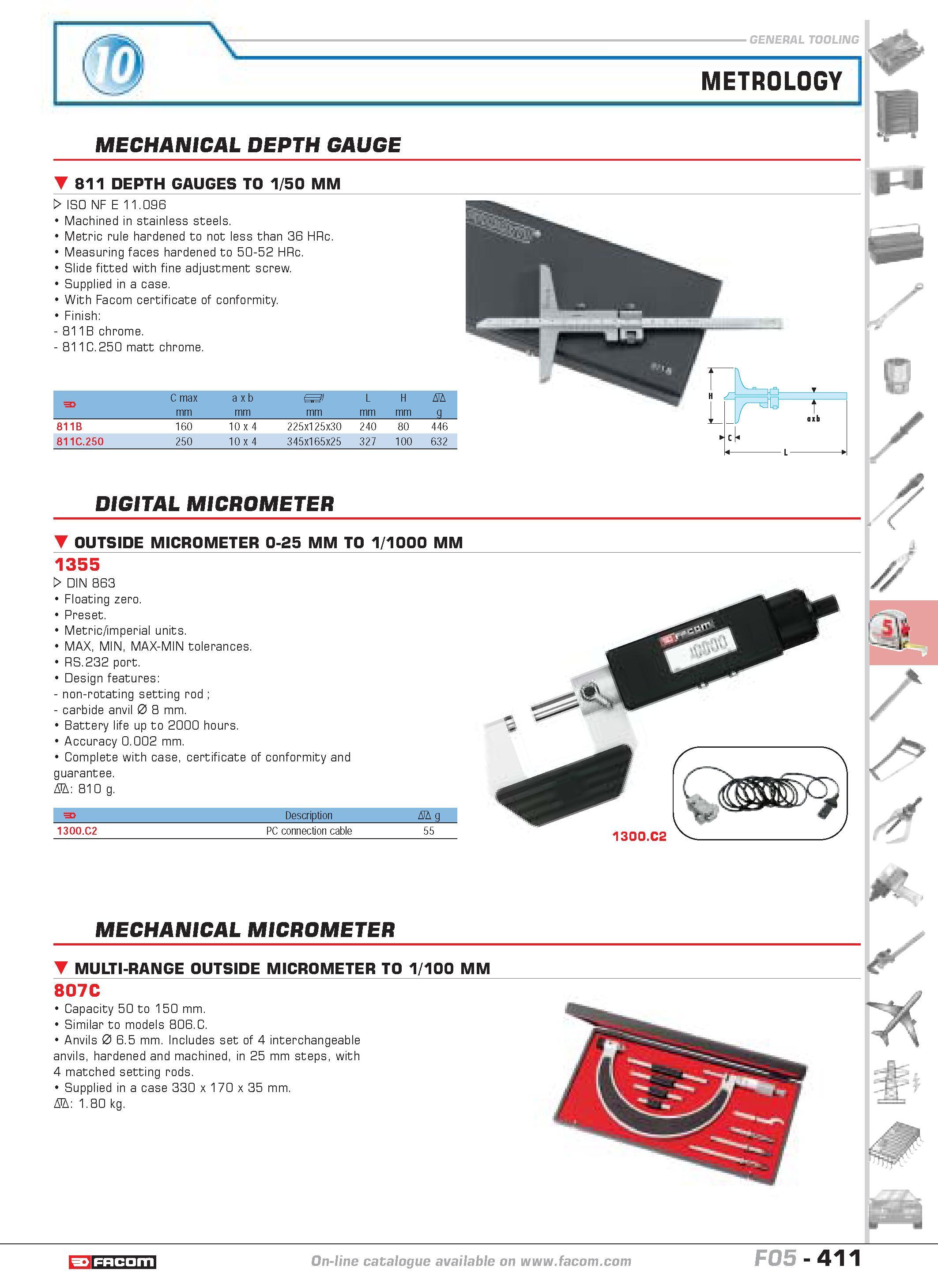

METROLOGY MECHANICAL DEPTH GAUGE 811 DEPTH GAUGES TO 1 50 MM W ISO NF E 11.096 Machined in stainless steels. Metric rule hardened to not less than 36 HRc. Measuring faces hardened to 50-52 HRc. Slide fitted with fine adjustment screw. Supplied in a case. With Facom certificate of conformity. Finish 811B chrome. 811C.250 matt chrome. F C max a x b I L H D mm g 811B 160 10 x 4 225x125x30 240 80 446 811C.250 250 10 x 4 345x165x25 327 100 632 DIGITAL MICROMETER OUTSIDE MICROMETER 0-25 MM TO 1 1000 MM 1355 W DIN 863 Floating zero. Preset. Metric imperial units. MAX MIN MAX-MIN tolerances. RS.232 port. Design features non-rotating setting rod carbide anvil 0 8 mm. Battery life up to 2000 hours. Accuracy 0.002 mm. Complete with case certificate of conformity and guarantee. D 810 g. F Description D g 1300.C2 PC connection cable 55 1300.C2 MECHANICAL MICROMETER multi-range outside micrometer TO 1 100 mm 807C Capacity 50 to 150 mm. Similar to models 806.C. Anvils 0 6.5 mm. Includes set of 4 interchangeable anvils hardened and machined in 25 mm steps with 4 matched setting rods. Supplied in a case 330 x 170 x 35 mm. D 1.80 kg. catalogue FACOM F05- 411
