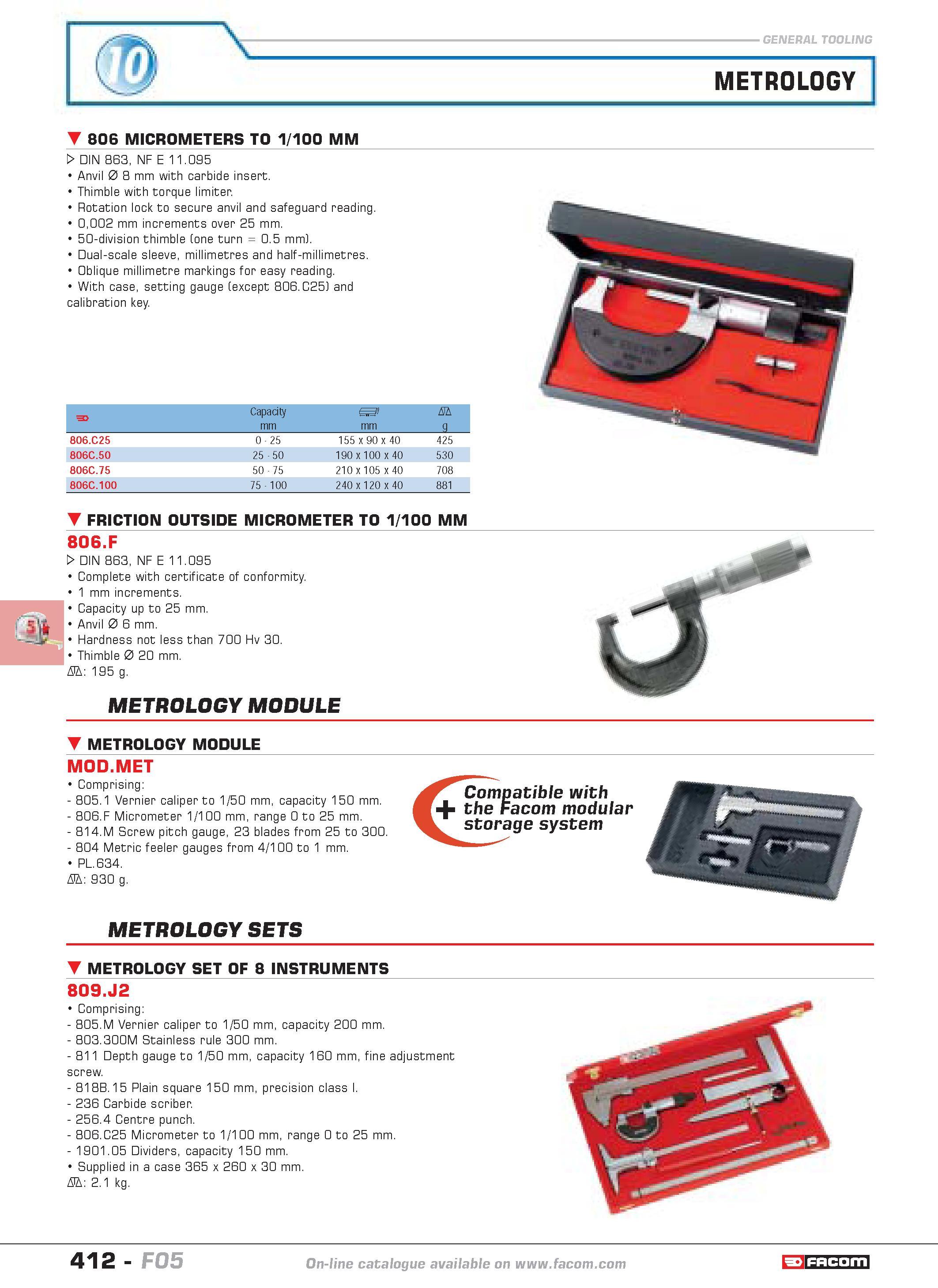

METROLOGY 806 MICROMETERS TO 1 100 MM W DIN 863 NF E 11.095 Anvil 0 8 mm with carbide insert. Thimble with torque limiter. Rotation lock to secure anvil and safeguard reading. 0002 mm increments over 25 mm. 50-division thimble (one turn 0.5 mm). Dual-scale sleeve millimetres and half-millimetres. Oblique millimetre markings for easy reading. With case setting gauge (except 806.C25) and calibration key. F Capacity mm I mm D g 806.C25 0 25 155 x 90 x 40 425 806C.50 25 50 190 x 100 x 40 530 806C.75 50 75 210 x 105 x 40 708 806C.100 75 100 240 x 120 x 40 881 FRICTION OUTSIDE MICROMETER TO 1 100 MM 806.F W DIN 863 NF E 11.095 Complete with certificate of conformity. 1 mm increments. Capacity up to 25 mm. Anvil 0 6 mm. Hardness not less than 700 Hv 30. Thimble 0 20 mm. D 195 g. METROLOGY MODULE METROLOGY MODULE MOD.MET Comprising 805.1 Vernier caliper to 1 50 mm capacity 150 mm. 806.F Micrometer 1 100 mm range 0 to 25 mm. 814.M Screw pitch gauge 23 blades from 25 to 300. 804 Metric feeler gauges from 4 100 to 1 mm. PL.634. D 930 g. Compatible with the Facom modular storage system METROLOGY SETS METROLOGY SET OF 8 INSTRUMENTS 809.J2 Comprising 805.M Vernier caliper to 1 50 mm capacity 200 mm. 803.300M Stainless rule 300 mm. 811 Depth gauge to 1 50 mm capacity 160 mm fine adjustment screw. 818B.15 Plain square 150 mm precision class I. 236 Carbide scriber. 256.4 Centre punch. 806.C25 Micrometer to 1 100 mm range 0 to 25 mm. 1901.05 Dividers capacity 150 mm. Supplied in a case 365 x 260 x 30 mm. D 2.1 kg. 412 catalogue FACOM F05
