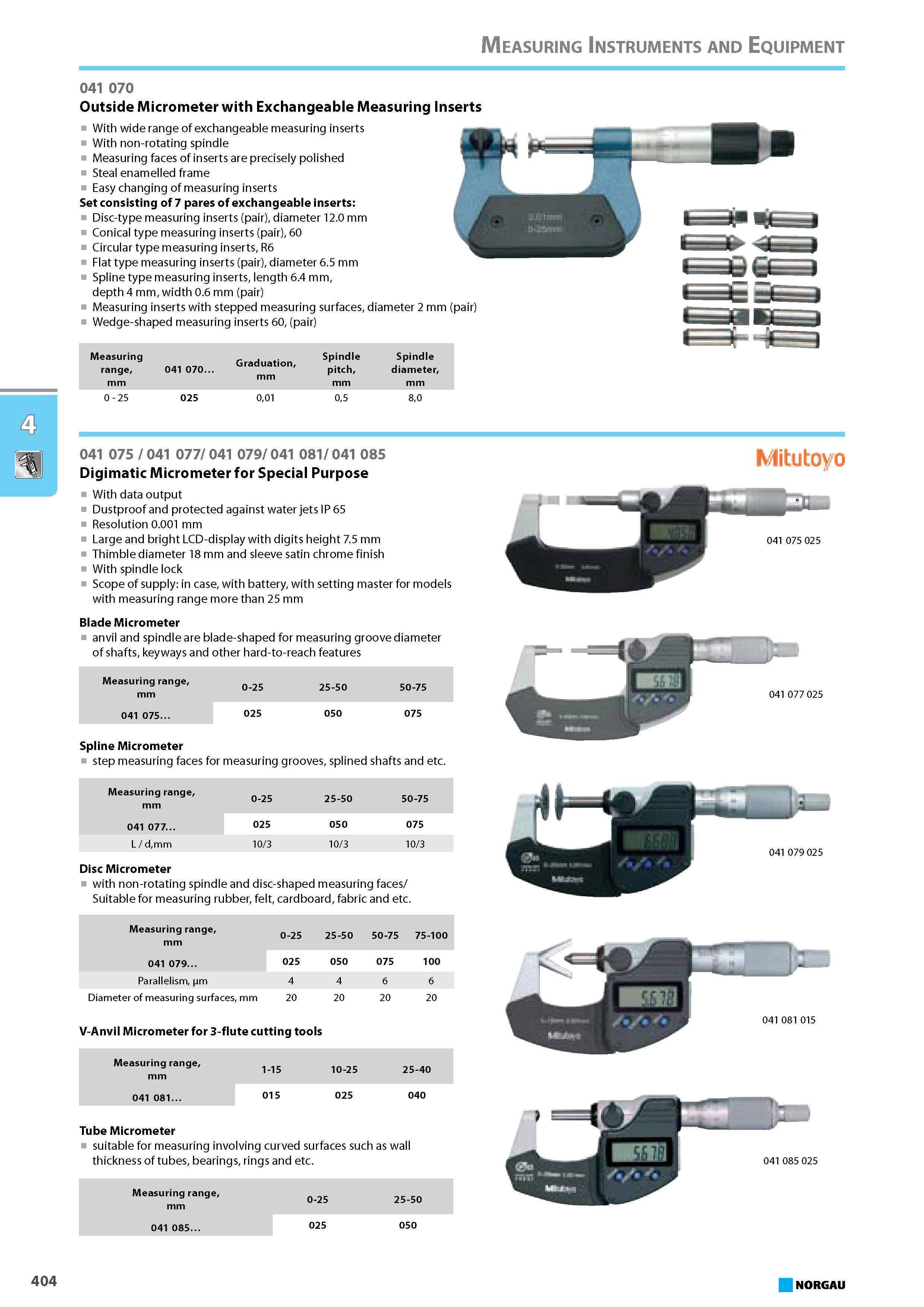

Outside Micrometer with Exchangeable Measuring Inserts With wide range of exchangeable measuring inserts With non-rotating spindle Measuring faces of inserts are precisely polished Steal enamelled frame Easy changing of measuring inserts Set consisting of 7 pares of exchangeable inserts Disc-type measuring inserts (pair) diameter 12.0 mm Conical type measuring inserts (pair) 60 Circular type measuring inserts R6 Flat type measuring inserts (pair) diameter 6.5 mm Spline type measuring inserts length 6.4 mm depth 4 mm width 0.6 mm (pair) Measuring inserts with stepped measuring surfaces diameter 2 mm (pair) Wedge-shaped measuring inserts 60 (pair) Measuring range 041 070 Graduation mm Spindle pitch mm Spindle diameter mm 0 - 25 025 001 05 80 041 075 041 077 041 079 041 081 041 085 Digimatic Micrometer for Special Purpose With data output Dustproof and protected against water jets IP 65 Resolution 0.001 mm Large and bright LCD-display with digits height 7.5 mm Thimble diameter 18 mm and sleeve satin chrome finish With spindle lock Scope of supply in case with battery with setting master for models with measuring range more than 25 mm Blade Micrometer P 041 077 025 anvil and spindle are blade-shaped for measuring groove diameter of shafts keyways and other hard-to-reach features Measuring range 0-25 25-50 50-75 mm 041 075. 025 050 075 Spline Micrometer step measuring faces for measuring grooves splined shafts and etc. Measuring range 0-25 25-50 50-75 mm 041 077. 025 050 075 L dmm 10 3 10 3 10 3 Disc Micrometer with non-rotating spindle and disc-shaped measuring faces Suitable for measuring rubber felt cardboard fabric and etc. Measuring range mm 0-25 25-50 50-75 75-100 041 079. 025 050 075 100 Parallelism pm 4 4 6 6 Diameter of measuring surfaces mm 20 20 20 20 V-Anvil Micrometer for 3-flute cutting tools Measuring range mm 015 025 040 1-15 10-25 25-40 Tube Micrometer suitable for measuring involving curved surfaces such as wall thickness of tubes bearings rings and etc. Measuring range mm 041 085. 0-25 25-50 025 050 NORGAU 041 079 025 Measuring Instruments and Equipment 404 041 070
