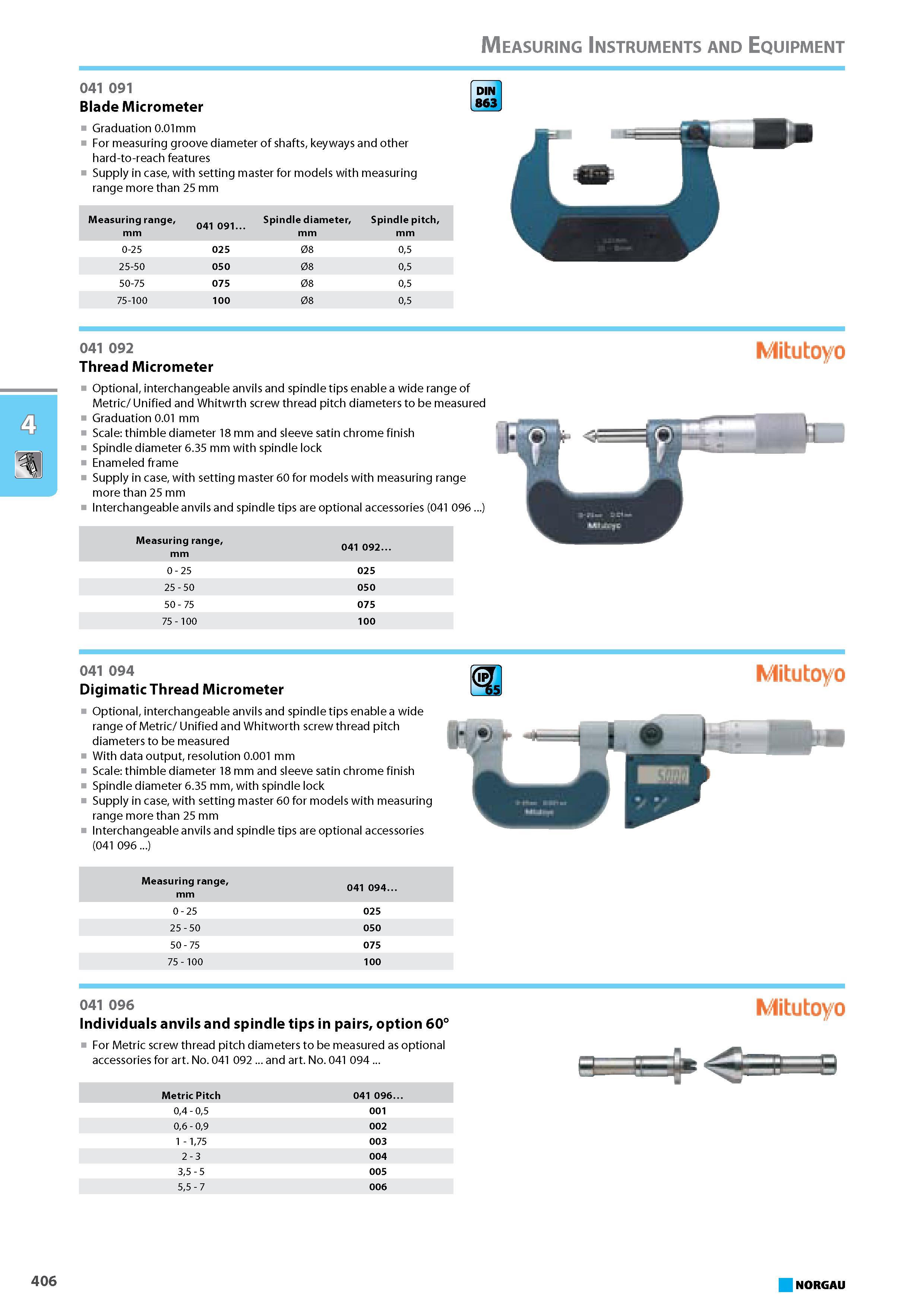

Blade Micrometer Graduation 0.01mm For measuring groove diameter of shafts keyways and other hard-to-reach features Supply in case with setting master for models with

Blade Micrometer Graduation 0.01mm For measuring groove diameter of shafts keyways and other hard-to-reach features Supply in case with setting master for models with measuring range more than 25 mm Measuring range mm 041 091. Spindle diameter mm Spindle pitch mm 0-25 025 08 05 25-50 050 08 05 50-75 075 08 05 75-100 100 08 05 041 092 Thread Micrometer Optional interchangeable anvils and spindle tips enable a wide range of Metric Unified and Whitwrth screw thread pitch diameters to be measured Graduation 0.01 mm Scale thimble diameter 18 mm and sleeve satin chrome finish Spindle diameter 6.35 mm with spindle lock Enameled frame Supply in case with setting master 60 for models with measuring range more than 25 mm Interchangeable anvils and spindle tips are optional accessories (041 096...) Measuring range mm 041 092. 0 - 25 025 25 - 50 050 50 75 075 75 - 100 100 041 094 Digimatic Thread Micrometer Optional interchangeable anvils and spindle tips enable a wide range of Metric Unified and Whitworth screw thread pitch diameters to be measured With data output resolution 0.001 mm Scale thimble diameter 18 mm and sleeve satin chrome finish Spindle diameter 6.35 mm with spindle lock Supply in case with setting master 60 for models with measuring range more than 25 mm Interchangeable anvils and spindle tips are optional accessories (041 096...) Measuring range mm 041 094. 0 - 25 025 25 - 50 050 50 - 75 075 75 - 100 100 041 096 Individuals anvils and spindle tips in pairs option 60 For Metric screw thread pitch diameters to be measured as optional accessories for art. No. 041 092 and art. No. 041 094 Metric Pitch 041 096. 04 - 05 001 06 - 09 002 1 - 175 003 3 2 004 35 - 5 005 55 - 7 006 NORGAU Measuring Instruments and Equipment 406 041 091
