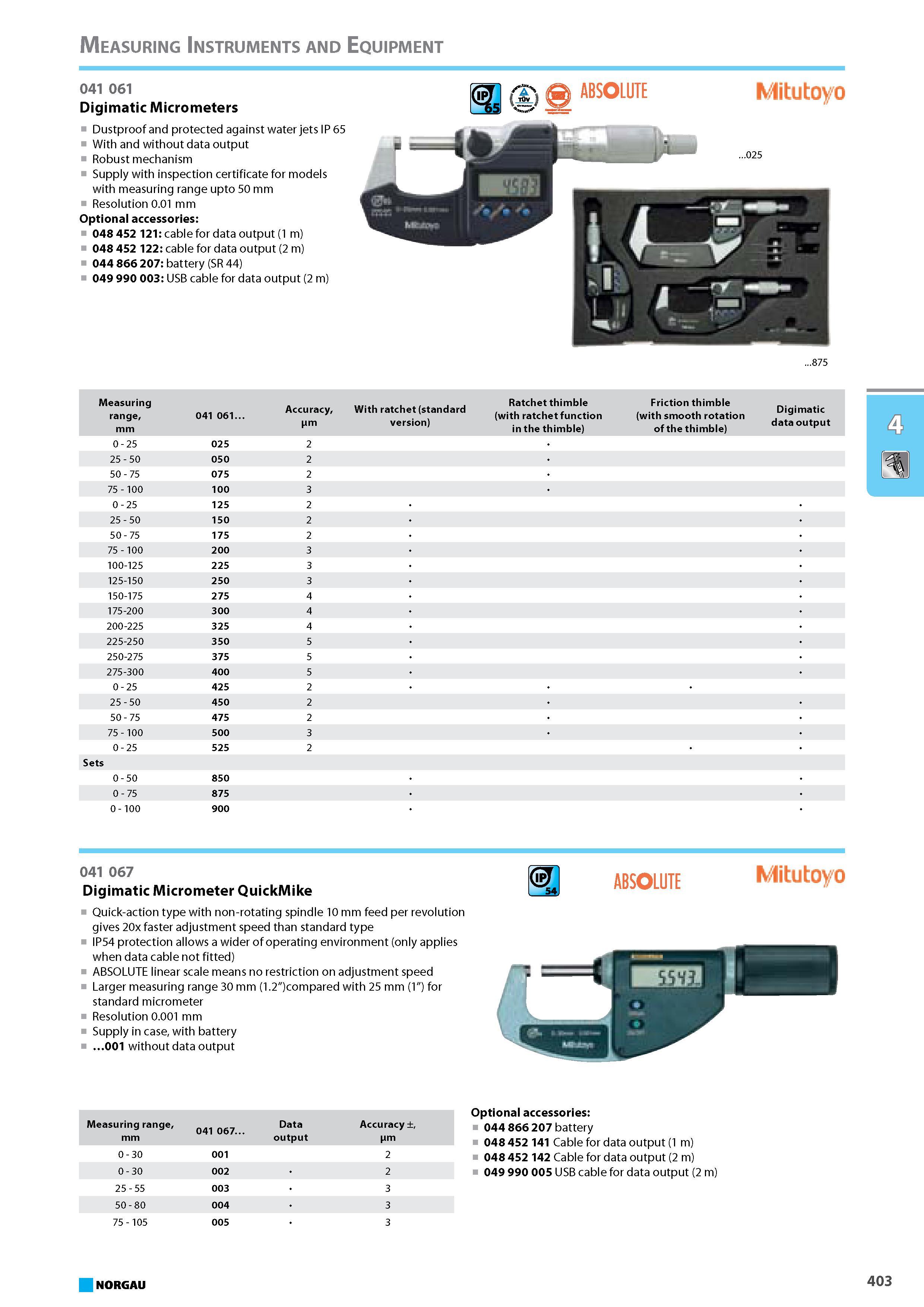

Digimatic Micrometers Dustproof and protected against water jets IP 65 With and without data output Robust mechanism Supply with inspection certificate for models with

Digimatic Micrometers Dustproof and protected against water jets IP 65 With and without data output Robust mechanism Supply with inspection certificate for models with measuring range upto 50 mm Resolution 0.01 mm Optional accessories 048 452 121 cable for data output (1 m) 048 452 122 cable for data output (2 m) 044 866 207 battery (SR 44) 049 990 003 USB cable for data output (2 m) 875 Measuring range mm 041 061. Accuracy pm With ratchet (standard version) Ratchet thimble (with ratchet function in the thimble) Friction thimble (with smooth rotation of the thimble) Digimatic data output 0 - 25 025 2 041 067 Digimatic Micrometer QuickMike Quick-action type with non-rotating spindle 10 mm feed per revolution gives 20x faster adjustment speed than standard type IP54 protection allows a wider of operating environment (only applies when data cable not fitted) ABSOLUTE linear scale means no restriction on adjustment speed Larger measuring range 30 mm (1.2)compared with 25 mm (1) for standard micrometer Resolution 0.001 mm Supply in case with battery 001 without data output 54 ABSOLUTE Measuring range mm 041 067. Data output Accuracy pm 0 - 30 001 2 0 - 30 002 2 25 - 55 003 3 50 - 80 004 3 75 - 105 005 3 Optional accessories 044 866 207 battery 048 452 141 Cable for data output (1 m) 048 452 142 Cable for data output (2 m) 049 990 005 USB cable for data output (2 m) 403 Measuring Instruments and Equipment 041 061
