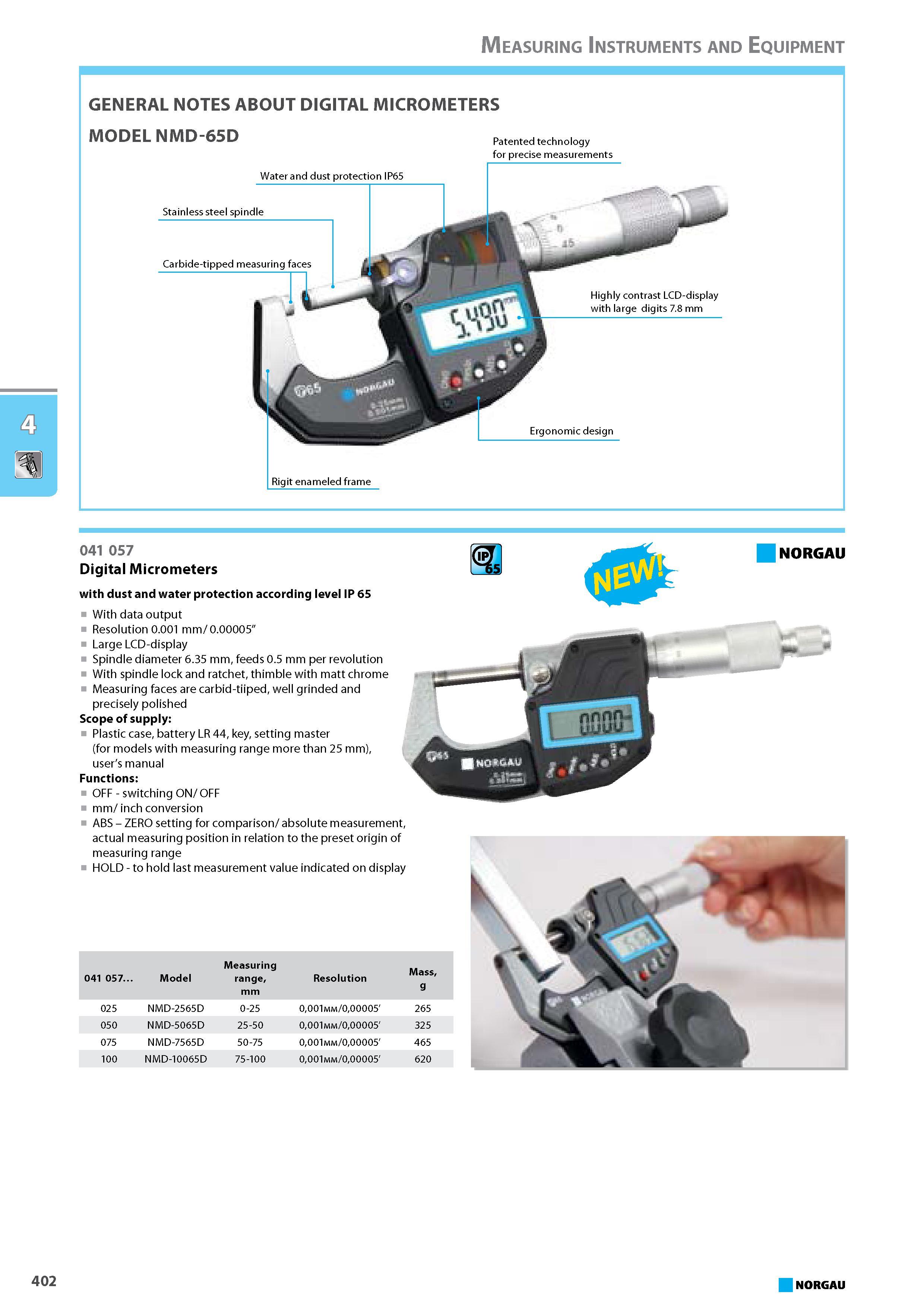

GENERAL NOTES ABOUT DIGITAL MICROMETERS MODEL NMD-65D Patented technology for precise measurements Water and dust protection IP65 Stainless steel spindle Carbide-tipped measuring faces Highly contrast LCD-display with large digits 7.8 mm Ergonomic design Rigit enameled frame 041 057 Digital Micrometers with dust and water protection according level IP 65 With data output Resolution 0.001 mm 0.00005 Large LCD-display Spindle diameter 6.35 mm feeds 0.5 mm per revolution With spindle lock and ratchet thimble with matt chrome Measuring faces are carbid-tiiped well grinded and precisely polished Scope of supply Plastic case battery LR 44 key setting master (for models with measuring range more than 25 mm) user's manual Functions OFF - switching ON OFF mm inch conversion ABS - ZERO setting for comparison absolute measurement actual measuring position in relation to the preset origin of measuring range HOLD - to hold last measurement value NORGAU indicated on display Measuring Mass g 041 057. Model range mm Resolution 025 NMD-2565D 0-25 0001 mm 000005' 265 050 NMD-5065D 25-50 0001 mm 000005' 325 075 NMD-7565D 50-75 0001 mm 000005' 465 100 NMD-10065D 75-100 0001 mm 000005' 620 NORGAU Measuring Instruments and Equipment 402
