V-Anvil Micrometer For measurements on 3- or 5- fluted taps drills reamers V-anvils with a centerline groove are available for measuring the pitch diameter of taps by

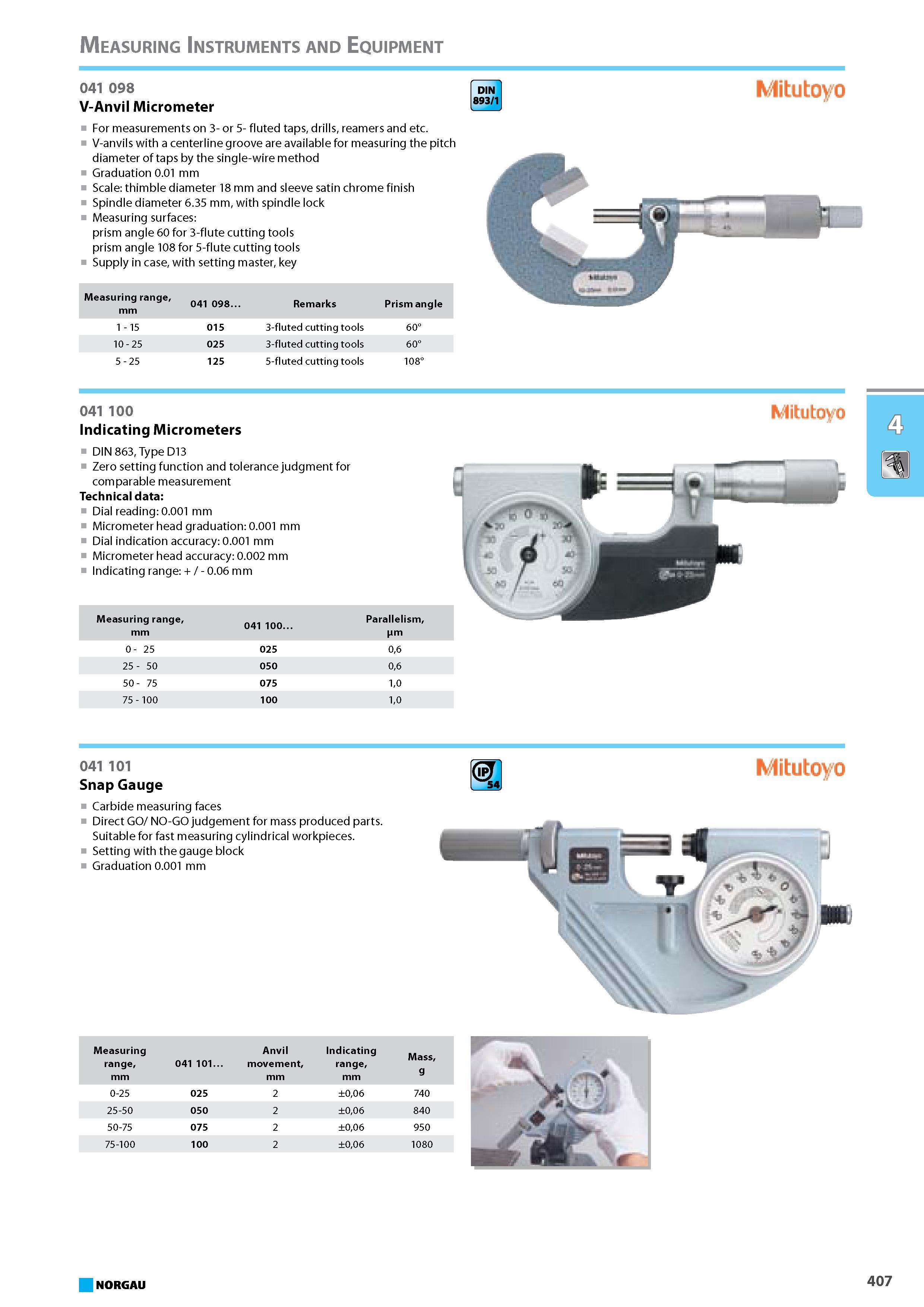

V-Anvil Micrometer For measurements on 3- or 5- fluted taps drills reamers V-anvils with a centerline groove are available for measuring the pitch diameter of taps by the single-wire method Graduation 0.01 mm Scale thimble diameter 18 mm and sleeve satin chrome finish Spindle diameter 6.35 mm with spindle lock Measuring surfaces prism angle 60 for 3-flute cutting tools prism angle 108 for 5-flute cutting tools Supply in case with setting master key DIN 893 1 Measuring range mm 041 098. Remarks Prism angle 1 - 15 015 3-fluted cutting tools 60 10 - 25 025 3-fluted cutting tools 60 5 - 25 125 5-fluted cutting tools 108 041 100 Indicating Micrometers DIN 863 Type D13 Zero setting function and tolerance judgment for comparable measurement Technical data Dial reading 0.001 mm Micrometer head graduation 0.001 mm Dial indication accuracy 0.001 mm Micrometer head accuracy 0.002 mm Indicating range - 0.06 mm Mitutoyo Measuring range mm 041 100. Parallelism pm 0 - 25 025 06 25 - 50 050 06 50 - 75 075 10 75 - 100 100 10 041 101 Snap Gauge Carbide measuring faces Direct GO NO-GO judgement for mass produced parts. Suitable for fast measuring cylindrical workpieces. Setting with the gauge block Graduation 0.001 mm (ST 54 Mitutoyo Measuring range mm 041 101. Anvil movement mm Indicating range mm Mass g 0-25 025 2 006 740 25-50 050 2 006 840 50-75 075 2 006 950 75-100 100 2 006 1080 NORGAU 407 Measuring Instruments and Equipment 041 098
