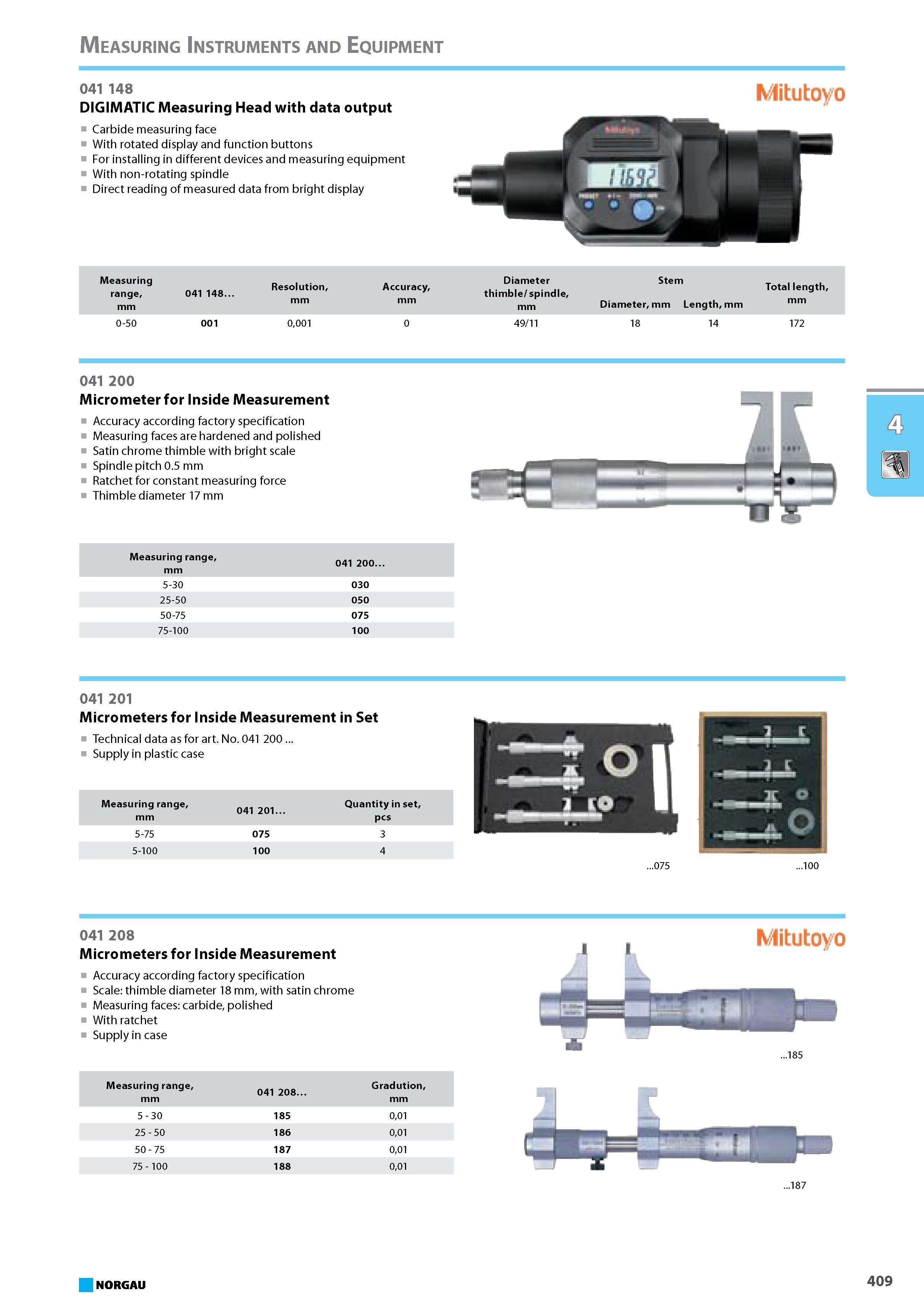

DIGIMATIC Measuring Head with data output Carbide measuring face With rotated display and function buttons For installing in different devices and measuring equipment

DIGIMATIC Measuring Head with data output Carbide measuring face With rotated display and function buttons For installing in different devices and measuring equipment With non-rotating spindle Direct reading of measured data from bright display Measuring Resolution mm Accuracy mm Diameter Stem Total length mm range mm 041 148. thimble spindle mm Diameter mm Length mm 0-50 001 0001 0 49 11 18 14 172 041 200 Micrometer for Inside Measurement Accuracy according factory specification Measuring faces are hardened and polished Satin chrome thimble with bright scale Spindle pitch 0.5 mm Ratchet for constant measuring force Thimble diameter 17 mm Measuring range mm 041 200. 5-30 030 25-50 050 50-75 075 75-100 100 041 201 Micrometers for Inside Measurement in Set Technical data as for art. No. 041 200 Supply in plastic case Measuring range mm 041 201. Quantity in set pcs 5-75 075 3 5-100 100 4 075 100 041 208 Micrometers for Inside Measurement Accuracy according factory specification Scale thimble diameter 18 mm with satin chrome Measuring faces carbide polished With ratchet Supply in case Measuring range mm 041 208. Gradution mm 5 - 30 185 001 25 - 50 186 001 50 - 75 187 001 75 - 100 188 001 409 Measuring Instruments and Equipment 041 148
