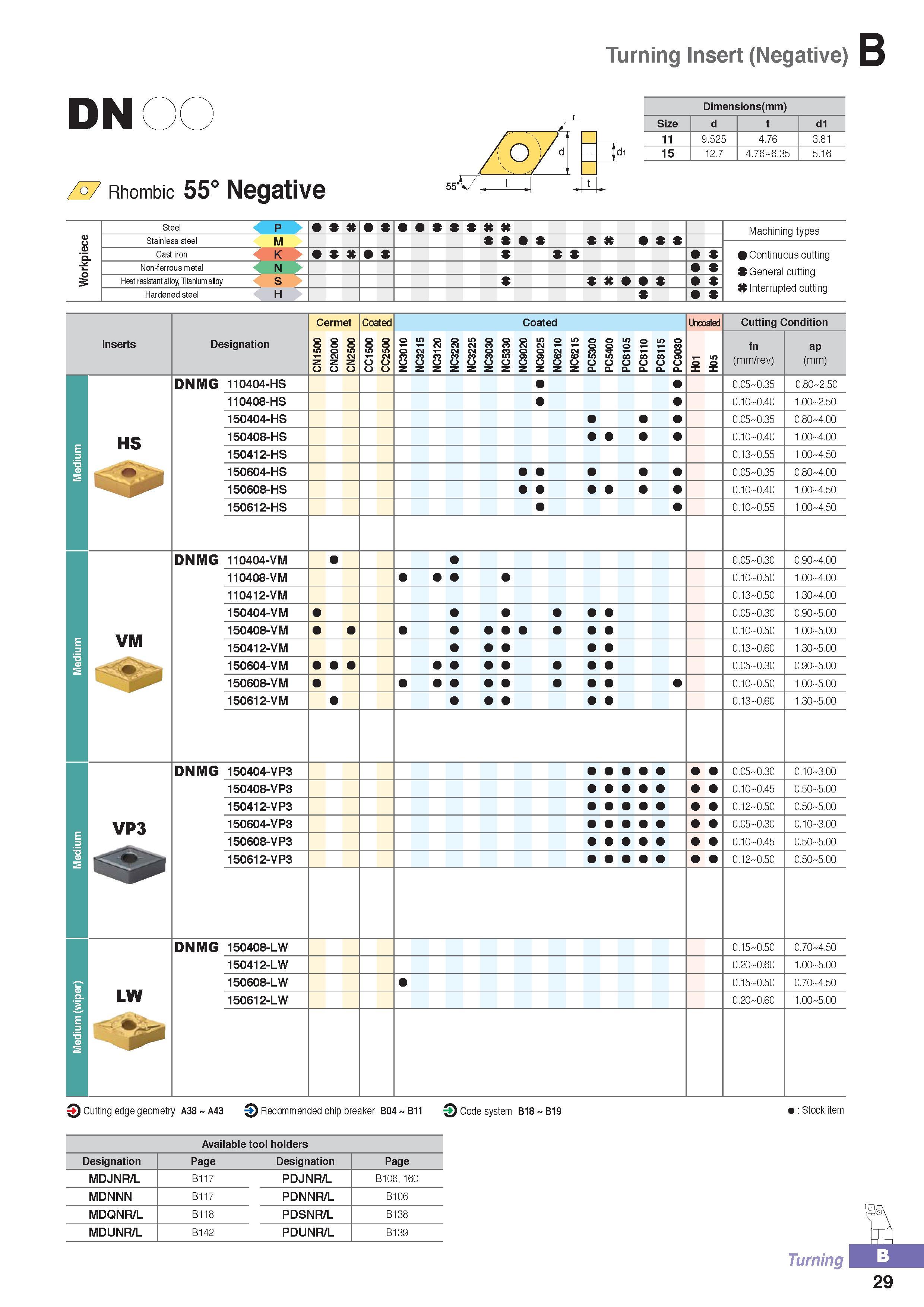

Turning Insert Negative Korloy DNMG Rhombic 55° Negative 55' 71 1 J Dimensions (mm) Size d d1 11 9 525 4 76 3 81 15 12 7 4 76 6 35 5 16 Steel p Stainless s

Turning Insert Negative Korloy DNMG Rhombic 55° Negative 55' 71 1 J Dimensions (mm) Size d d1 11 9.525 4.76 3.81 15 12.7 4.76 6.35 5.16 Steel p Stainless steel M S Cast iron K Non-ferrous metal N Heat resistant alloy, Titanium alloy S Hardened steel H Machining types Continuous cutting General cutting Interrupted cutting Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6210 NC6215 pC5300 PC5400 PC8105 PC8110 PC8115 PC9030 H01 H05 fn (mm/rev) ap (mm) HS > DNMG 110404-HS 0.05 0.35 0.80 2.50 110408-HS 0.10 0.40 1.00 2.50 150404-HS 0.05 0.35 0.80 4.00 150408-HS 0.10 0.40 1.00 4.00 150412-HS 0.13 0.55 1.00 4.50 150604-HS 0.05 0.35 0.80 4.00 150608-HS 0.10 0.40 1.00 4.50 150612-HS 0.10 0.55 1.00 4.50 VM DNMG 110404-VM 0.05 0.30 0.90 4.00 110408-VM 0.10 0.50 1.00 4.00 110412-VM 0.13 0.50 1.30 4.00 150404-VM 0.05 0.30 0.90 5.00 150408-VM 0.10 0.50 1.00 5.00 150412-VM 0.13 0.60 1.30 5.00 150604-VM 0.05 0.30 0.90 5.00 150608-VM 0.10 0.50 1.00 5.00 150612-VM 0.13 0.60 1.30 5.00 VP3 -V DNMG 150404-VP3 0.05 0.30 0.10 3.00 150408-VP3 0.10 0.45 0.50 5.00 150412-VP3 0.12 0.50 0.50 5.00 150604-VP3 0.05 0.30 0.10 3.00 150608-VP3 0.10 0.45 0.50 5.00 150612-VP3 0.12 0.50 0.50 5.00 LW DNMG 150408-LW 0.15 0.50 0.70 4.50 150412-LW 0.20 0.60 1.00 5.00 150608-LW 0.15 0.50 0.70 4.50 150612-LW 0.20 0.60 1.00 5.00 3 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 3 Code system B18 B19 Stock item Available tool holders Designation Page Designation Page MDJNR/L B117 PDJNR/L B106, 160 MDNNN B117 PDNNR/L B106 MDQNR/L B118 PDSNR/L B138 MDUNR/L B142 PDUNR/L B139 Turning 29
