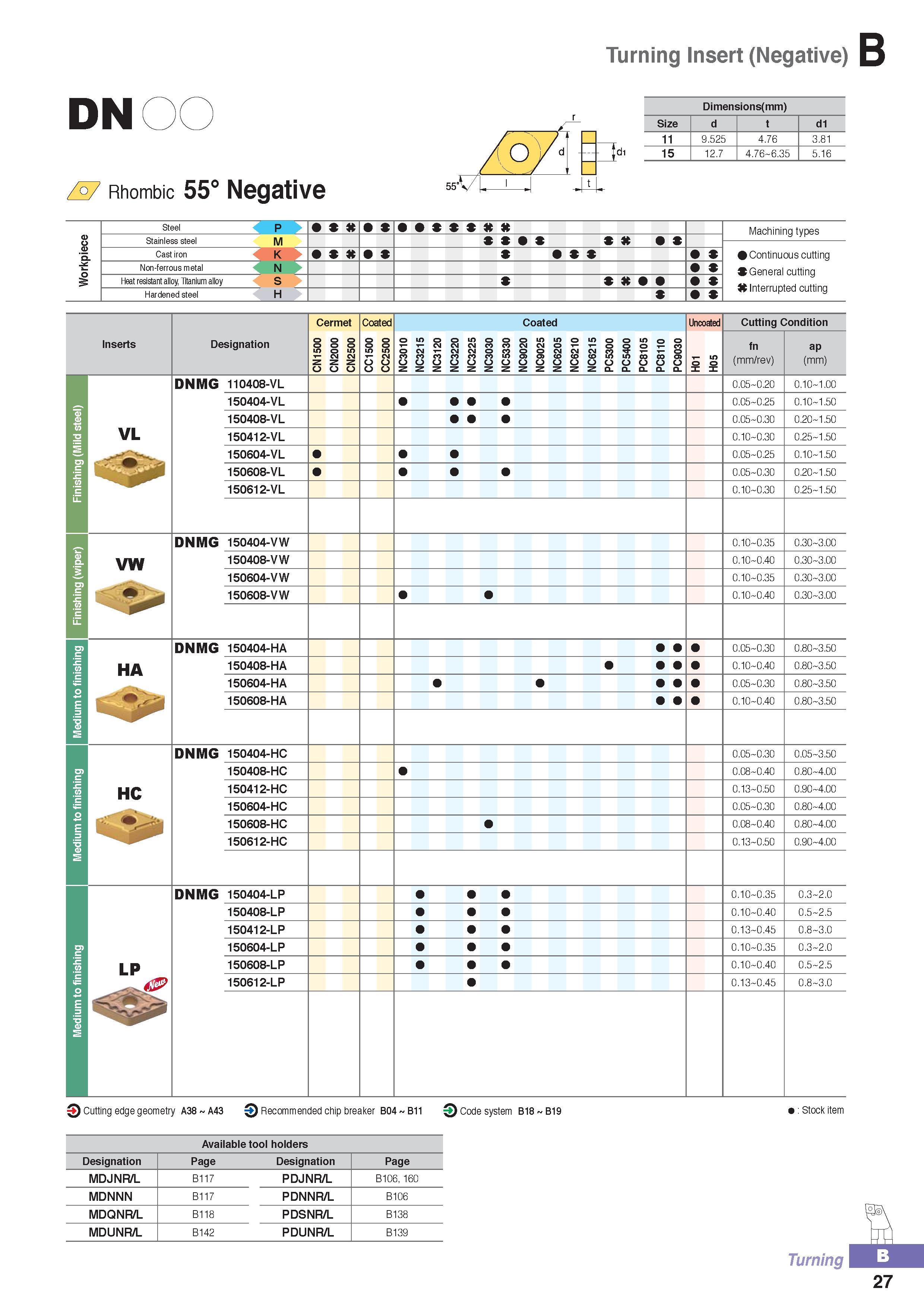

Rhombic 55 Turning Negative Inserts Korloy DNMG Dimensions (mm) Size Cutting Condition (mm/rev) ap (mm) Grades NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6205 NC6210 NC6215 PC5300 PC5400 PC8105 PC8110 PC9030 H01 H05 Negative 55' T fn VL DNMG 110408-VL 0.05 0.20 0.10 1.00 150404-VL 0.05 0.25 0.10 1.50 150408-VL 0.05 0.30 0.20 1.50 150412-VL 0.10 0.30 0.25 1.50 150604-VL 0.05 0.25 0.10 1.50 150608-VL 0.05 0.30 0.20 1.50 150612-VL 0.10 0.30 0.25 1.50 VW DNMG 150404-VW 0.10 0.35 0.30 3.00 150408-VW 0.10 0.40 0.30 3.00 150604-VW 0.10 0.35 0.30 3.00 150608-VW 0.10 0.40 0.30 3.00 HA DNMG 150404-HA 0.05 0.30 0.80 3.50 150408-HA 0.10 0.40 0.80 3.50 150604-HA 0.05 0.30 0.80 3.50 150608-HA 0.10 0.40 0.80 3.50 HC 0 DNMG 150404-HC 0.05 0.30 0.05 3.50 150408-HC 0.08 0.40 0.80 4.00 150412-HC 0.13 0.50 0.90 4.00 150604-HC 0.05 0.30 0.80 4.00 150608-HC 0.08 0.40 0.80 4.00 150612-HC 0.13 0.50 0.90 4.00 LP DNMG 150404-LP 0.10 0.35 0.3 2.0 150408-LP 0.10 0.40 0.5 2.5 150412-LP 0.13 0.45 0.8 3.0 150604-LP 0.10 0.35 0.3 2.0 150608-LP 0.10 0.40 0.5 2.5 150612-LP 0.13 0.45 0.8 3.0 3 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 3 Code system B18 B19 Available tool holders Stock item Designation Page Designation Page MDJNR/L B117 PDJNR/L B106, 160 MDNNN B117 PDNNR/L B106 MDQNR/L B118 PDSNR/L B138 MDUNR/L B142 PDUNR/L B139 Turning 27 d d1 11 9.525 4.76 3.81 15 12.7 4.76 6.35 5.16 Steel p Machining types Stainless steel M Cast iron K Continuous cutting Non-ferrous metal N V Heat resistant alloy, Titanium alloy S Hardened steel H K Inleiiupled culling Inserts Designation Cermet mom Coated lo m w CC CC Coated Uncoated
